Product Details:
|
| Material: | Q195 Low Carbon Wire | Mesh Wire: | 5.0mm |
|---|---|---|---|
| Spring Wire: | 4.0mm | Mesh: | 3"x3" |
| Surface Treatment: | Hot Dipped Galvanized | Geotextile: | 300gsm Sand Color,Green Color |
| Application: | Military Protection | Main Market: | Kenya, Africa |
| High Light: | hesco defensive barriers,hesco bastion |
||

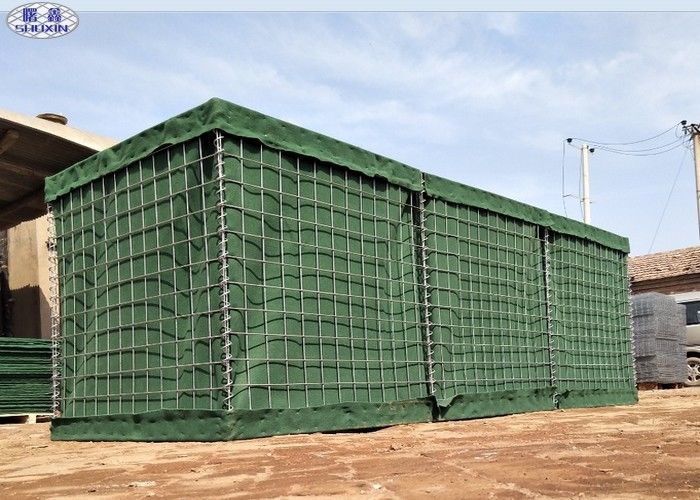

Hesco Flood Barrier Same As Galvanized Hesco Barrier For Military Uniforms
Hesco barrier/Military Sand Sall Hesco Barrier is gabion-like. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.
Gabion bastions are mainly used in military and flood control for its modular structure and quick setup. For military, a gabion Hesco with 24 inches thickness can stop rifle bullets, shell fragments and other shrapnel. While for flood protection, gabion Hesco can be assembled soonest and come into use.
HESCO products have been used in many countries around the world including Afghanistan, Iraq,
Bosnia, Kosovo, Yemen, Sri Lanka, Jordan, UAE and Turkey. Most military organizations currently use HESCO products including the US Army, UK MOD, USMC, USAF and NATO.
In addition to the standard Container unit, HESCO is constantly developing its portfolio of products in response to its customers’ requirements. Multi-cellular wall system force protection product
Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Detail Specification
1. Wire Diameter: 4-5mm
2. Mesh Size: 3" (75x75mm,50x50mm) 80*80mm
3. Panel Size: 13 type size for any security protection,suddenly burst attacks
4. Geotextile: In heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: Hot dipped galvanized, Galfan wire.
7. Packing: Packed in pallet
Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
