Product Details:
|
| Material: | Galvanized Wire | Wire Gauge: | 4.0, 5.0 Mm |
|---|---|---|---|
| Length: | 1.2-30 M, 32' | Width: | 0.61-2.13 M, 2' |
| Height: | 0.61-2.21m, 3'6",etc | Aperture: | 3"*3",75x75 Mm |
| Color: | Military Green, Khaki | Product Name: | Mil 1 Mil 5 Mil 10 Welded Hesco Barrier |
| High Light: | wire mesh retaining wall,defence barrier |
||
Galvanized Mil 3 Military Welded Gabion Wall Hesco Barrier Bastion

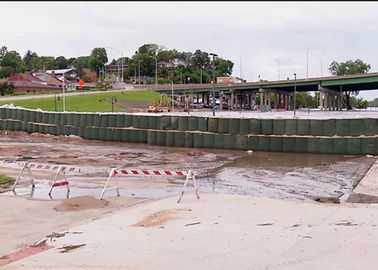

Hesco Barrier Bastion is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosiond or small-arms.
Material : galvanized wire,hot dipped galvanized wire,hot dipped galvanized after welding,galfan steel wire , Alu-zinc coated wire.
Mesh wire diameter : 3mm,4mm,5mm,6mm and so on .
Mesh hole Size :50x50mm, 75x75mm, 76.2x76.2mm, 50x100mm, 100x100mm, as your request .
Spring wire diameter : 3mm,4mm,5mm etc .
Army bastion Finished : Hot dipped galvanized and galfan .
Steel wire barriers Geotextile : In heavy duty non-woven polypropylene .
Steel wire barriers Geotextile color : beige-sand, olive green,gray etc .
Steel wire barriers Geotextile thickness : 300g/m2, 350g/m2, 400g/m2 .
Common size : 0.61x0.61x0.61m 2Cells, 1x1x1m 10Cells, 1.37x1.06x1.06m 9Cells, 1x1.5x1m 10Cells, 0.61x0.61x0.61m 5Cells, 1.68x0.61x0.61m 5Cells, 2.21x2.13x2.13m 13Cells, 1.37x1.22x1.10m 9Cells as your request .
Package: Warapped with shrink film then packed in pallet,and the last packed with steel belt .
Hesco Barrier Bastion Features

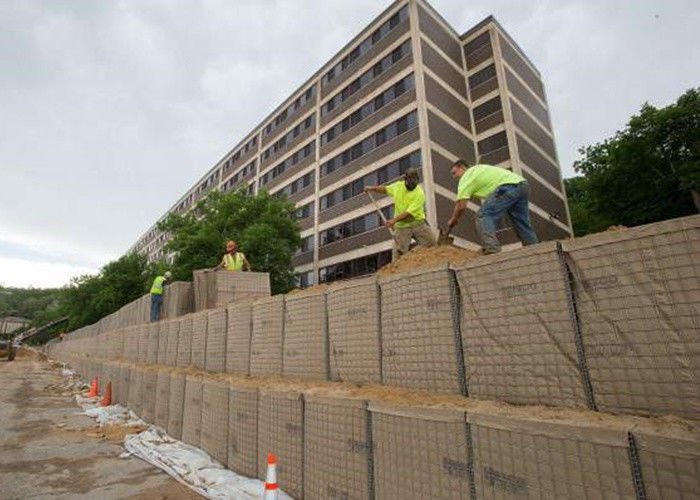

Hesco Barrier Bastion can be built to any required length and to any height. The unique joining system allows the user great flexibility in configurations and requirements. One of the key advantages of the system is that any readily available infill material can be utilised. Sand, rubble, rocks, soil, concrete and even snow have been successfully used.
A pre-fabricated gabion of galvanised welded-mesh steel fitted with a UV-protected
Polypropylene geo-textile liner.
Filling material is an easily-obtained mix of sand and small stones.
Can be connected together to any length, and can be stacked for additional height.
Primary military use is as force protection against blast and projectiles.
Hesco Barrier Bastion Application
| 1. Personnel bunkers, Observation points |
| 2. Guard posts, Protecting existing structures |
| 3. Contraband search areas, Highway checkpoints, Border crossing checkpoints |
| 4. Traffic management, Hostile vehicle mitigation |
| 5. Perimeter security barrier or border barrier |
| 6. Observation points and border checkpoints |
| 7. Alert or cautionary outpost |
| 8. Military barrier fortification system |
