Military Defensive Barrier Protective Structures Hesco Gabion Barriers

Basic Properties
Place of Origin: Hebei, China
Brand Name: Shuxin-1
Certification: CE, SGS
Model Number: Weld mesh
Trading Properties
Minimum Order Quantity: 10 sets
Standard Packaging: Packing into pallet
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets/ month
Product Summary
Military Defensive Bastion Protective Structures Hesco Gabion Barriers Product Description Material: Galvanized steel wire or Galfan/ zinc-5%aluminum wire Service Life: 15-20 years Price:19.8$-99.8$/set Wire diameter: 3.0mm- 6.0mm Aperture:50*50mm, 75*75mm, 76.2*76.2mm, 80*80mm, 100*100mm etc Color ...

Product Details

Highlight:

welded mesh gabions

,

barrier defence

Wire Gauge: 4mm, 5mm
Mesh Size: 76.2X76.2mm
Geotextile: Heavy Duty Non-woven Polypropylene
Panel Size: 1.37m X1.06m
Finish: Hot Dipped Galvanized
Material: Zinc-aluminium Wire Mesh
Color: White, Dusty Grey
Usage: Protection, Prevention Of Floods
Product Description



Military Defensive Bastion Protective Structures Hesco Gabion Barriers





Product Description



Material: Galvanized steel wire or Galfan/ zinc-5%aluminum wire

Service Life: 15-20 years

Price:19.8$-99.8$/set

Wire diameter: 3.0mm- 6.0mm

Aperture:50*50mm, 75*75mm, 76.2*76.2mm, 80*80mm, 100*100mm etc

Color of geotextile:Grey and Military Green,Sand color etc

Gram Weight of geotextile:200g/m2 or 300g/m2

Finish:hot dipped galvanized,Galfan wire. Welded method:welded after galvanized or galvanized after welded

Packing:Wrapped with shrink film then packed in wood pallet or iron pallet



Defensive Barrier is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.



Known as a defensive barrier, it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand — preferably with a front-end loader — to make a barrier resistant to small arms fire and shrapnel. They can be stacked or lined in double rows to provide additional protection from rocket-propelled grenades and bombs.



Specification



Hesco Barrier
 SX-1  1.37m* 1.06m*10.0m
 SX-2  0.61m* 0.61m*1.22m
 SX-3  1.0m*1.0m*10.0m
 SX-4  1.0m*1.5m*10.0m
 SX-5  0.61m* 0.61m*3.05m
 SX-6  0.61m* 0.61m*6.10m
 SX-7  2.21m*2.13m*8.52m
 SX-8  1.37m*1.22m*10.0m
 SX-9  1.0m*0.76m*9.14m
 SX-10  2.13m*1.52m*7.62m



Applications

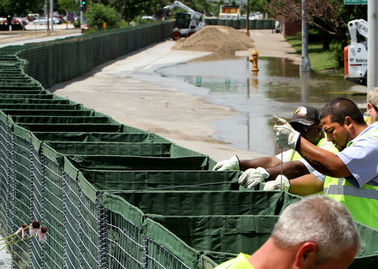

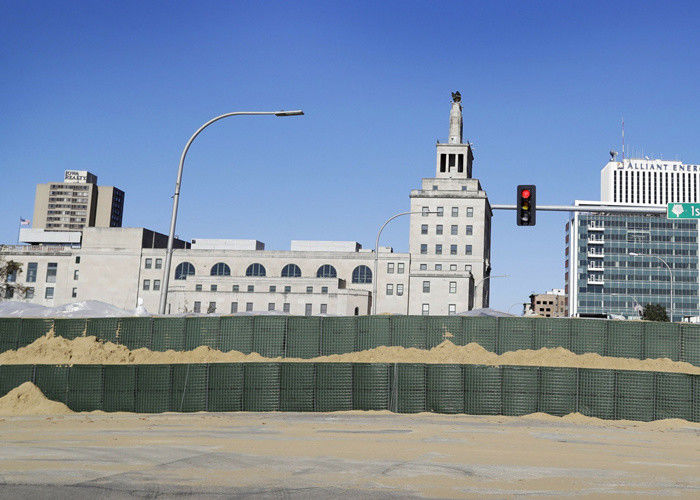

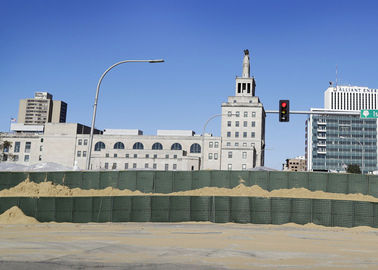

The Hesco Gabion Barriers come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4 by 1.1 by 9.8 metres (4.6 ft × 3.6 ft × 32.2 ft) to 2.1 by 1.5 by 30 metres (6.9 ft × 4.9 ft × 98.4 ft).



The strength,flexibility and economy of military hesco barrier/bastion lead it to a wide variety of applications including perimeter security and defensing walls,equipment revetments,explosive and contraband search areas, personal and material bunkers,observation points,defensive firing positions,flood control,emergency flood deployment, erosion control,civil engineering etc.



Features



1. A pre-fabricated gabion of galvanised welded-mesh steel fitted with a UV-protected Polypropylene geo-textile liner.

2. Filling material is an easily-obtained mix of sand and small stones.

3. Can be connected together to any length, and can be stacked for additional height.

4. Primary military use is as force protection against blast and projectiles.

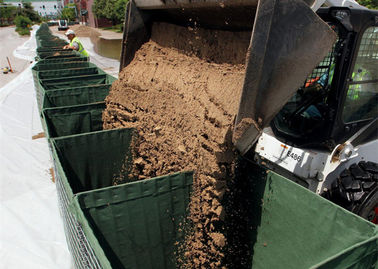

5. One of the best features of the defensive barrier is the ease in which it is set up. Get it flown in or pull it off a truck, unfold it, use a front end loader or other heavy equipment to fill it up with dirt, sand or gravel.

Military Defensive Barrier Protective Structures Hesco Gabion Barriers
