Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications

Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications
Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications

Large Image :  Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications

Product Details:
Place of Origin: CN
Brand Name: KESCO
Certification: ISO CE SGS COC
Model Number: SX Series
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Price: Negotiated
Packaging Details: Wooden Pallet
Delivery Time: 15 business days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 150 units per week

Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications

Description
Material: Q195, Low Carbon Steel Wire Mesh Wire: 5.0mm
Spring Wire: 4.0mm Geotextile: 300 GSM Heavy Geotextile
Surface Treatment: Galfan Coated Life Duration: Around 25 Years
High Light:

hesco defensive barriers

,

hesco bastion

Heavy Galvanized KESCO Barrier , Not HESCO Barrier for military fortifications

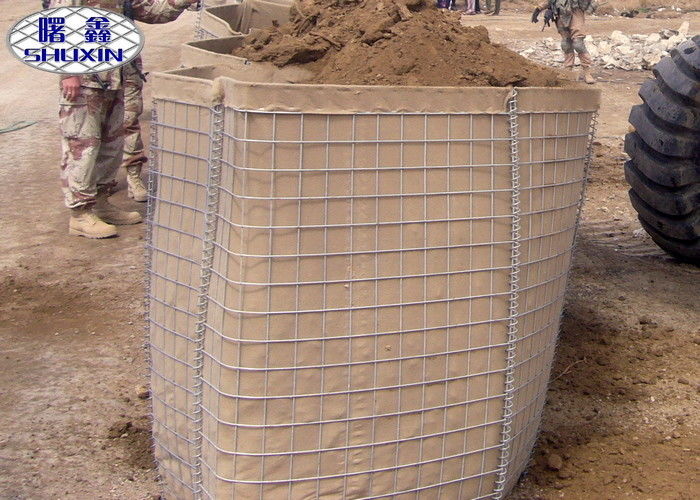

Explosion-proof walls are also known as modern metal meshes for flood protection and military fortifications. Composed of a collapsible wire mesh container,and heavy geotextile, it is used as a temporary or semi-permanent barrier or bastion to block an explosion or small weapon attack. Nowadays, people called "HESCO Barrier'. Anping Shuxin Wire Mesh involved in this area since 2007, have own professional production team to meet customer's kinds of requirements.


The hesco barrier concertainer unit is a multi-cellular wall system manufactured from welded Zinc-Aluminum coated /hot dipped galvanized steel wire mesh and joined with vertical,helical coil joints.

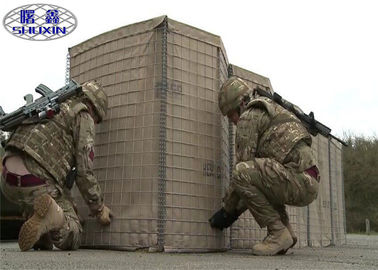

The concertainer MIL units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile.Hesco barrier /hesco bastion can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.

Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications 0



Gram Weight of geotextile:200g/m2 or 300g/m2

Finish:hot dipped galvanized,Galfan wire.

Welded method:welded after galvanized or galvanized after welded

Packing:Wrapped with shrink film then packed in wood pallet or iron pallet



Model Height Width Length Internal Cells
SX-1(Mil 1) 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2(Mil 2) 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3(Mil 3) 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4(Mil 4) 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5(Mil 5) 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6(Mil 6) 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7(Mil 7) 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8(Mil 8) 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9(Mil 9) 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10(Mil 10) 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11(Mil 11) 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12(Mil 12) 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19(Mil 19) 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells



Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications 1

Defensive Barrier Application :

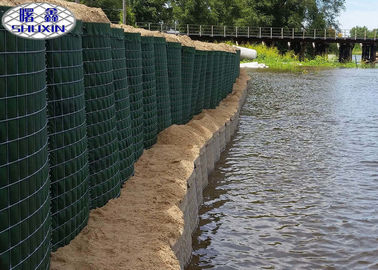

1. landscaping, as retaining walls, landscape urban landscape and parks.
2. or high salt pollution in the environment, Gore can be used where welded wire mesh technology.
3. within the welded wire mesh filled with stone or natural cobblestone highway together protection, slope, roadway, bridge and so on.
4. welded wire mesh is widely used in earth or soil reinforcement such as desertification, slope protection, river, coastal protection, reservoirs, canals and pipelines renovation, Rock failure protection, bridge protection, protective net.

Heavy Galvanized Kesco Barrier , Not Hesco Military Barrier Fortifications 2
