Mil 10 Military Edge Protection Wall Hesco Barrier With geotextile fabric
SHUXIN company had been produce welded wire mesh products hesco barriers more than 15 years.
our products been supplied many countries's department of defense. and army force.
such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
Could you tell us what size you need for your project?
Introduction of Military Barriers :
1. Military Barrier is a multi-cellular barrier system lined with heavy-duty, geotextile fabric and manufactured from welded Zinc-Aluminium coated steel mesh.
Known as a Military defensive hesco barrier, it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand — preferably with a front-end loader — to make a barrier resistant to small arms fire and shrapnel. They can be stacked or lined in double rows to provide additional protection from rocket-propelled grenades and bombs.
2. hesco barriers Specification:
1) Material: galvanized wire
2) Wire diameter: 5mm
3) Hole: 76.2×76.2mm
4) Hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
5) Geotextile: in non-woven geotextile, color can be white, beige-sand color.
6) Color: White, Sand color, Military Green
The Common Specification of hesco Military barriers as followed:
| MODEL |
Height |
Width |
Length |
NO. of Cells |
| SX-1 |
4'6"(1.37M) |
3'6"(1.06M) |
32'(10M) |
9 cells(1*4, 1*5) |
| SX-2 |
7'(2.1M) |
3'6"(1.06M) |
108'(33M) |
30 cells(6*5) |
| SX-3 |
2'(0.61M) |
2'(0.61M) |
4'(1.21M) |
2 cells |
| SX-4 |
3'3"(1.0M) |
3'3"(1.0M) |
32'(10M) |
10 cells(2*5) |
| SX-5 |
2'(0.61M) |
2'(0.61M) |
10'(3.05M) |
5 cells |
| SX-6 |
5'6"(1.68M) |
2'(0.61M) |
10'(3.05M) |
5 cells |
| SX-7 |
7'3"(2.21M) |
7'(2.13M) |
90'(27.74M) |
13 cells(2*4,1*5) |
| SX-8 |
4'6"(1.37M) |
4'(1.22M) |
32'(10M) |
9 cells(1*4, 1*5) |
| SX-9 |
3'3"(1.0M) |
2'6"(0.76M) |
30'(9.14M) |
12 cells(2*6) |
| SX-10 |
7'(2.12M) |
5'(1.52M) |
95'(30.5M) |
20 cells(4*5) |
| SX-11 |
3'3"(1.0M |
3'3"(1.0M) |
3'3"(1.0M) |
1 Cell |
| SX-12 |
7'3"(2.21M) |
7'3"(2.21M) |
7'3"(2.21M) |
1 Cell |
Military barriers Sand Wall Application:
The versatility of Collapsible Wire Mesh Frames 76.2×76.2mm Military Barrier With Geotextile Fabric enables it to be used across a variety of applications such as coastal erosion, flood protection, river and bank stabilisation, retaining walls, land reinforcement and soil conservation.

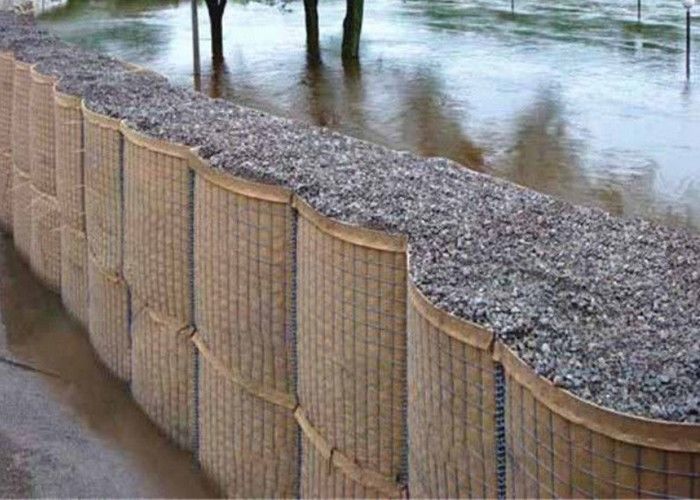

1. Flood protection
Most of People used as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.
2. Military Defence
Most of army used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.
3. Hotel Pretection
A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.
4.River and bank stabilisation
5.Retaining walls
6.land reinforcement and soil conservation
