Welded Hot Dipped Galvanised Military Barrier

Basic Properties
Place of Origin: CN
Brand Name: SHUXIN
Certification: CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E, CO
Model Number: SX-3 CELLS
Trading Properties
Minimum Order Quantity: 135 UNITS
Price: Negotiated
Standard Packaging: Pallet
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union, ,Paypal, T/A
Supply Ability: 200 Units per week
Product Summary
Welded Hot-Dipped Galvanised St Defensive Military Barrier Defensive SGS Certification With Olive Green Geotextile Cloth For a soldier, there's no greater comfort than having a nice, thick wall between you and the enemy.So a fast and strong Protection Wall is very important, Welded Barrier Basket ...

Product Details

Highlight:

hot dipped galvanised military barrier

,

welded military barrier

,

welded defensive barrier

Raw Material: Hot Dipped Galvanized Iron Wire
Geotextile Color: Military Green
Mesh Diameter: 4.0 Mm
Spring: 4.0mm
Size: 1×1×3M
Geotextile: 300 G/㎡ Standard
Product Description

Welded Hot-Dipped Galvanised St Defensive Military Barrier Defensive SGS Certification With Olive Green Geotextile Cloth



For a soldier, there's no greater comfort than having a nice, thick wall between you and the enemy.So a fast and strong Protection Wall is very important, Welded Barrier  Basket was invented in this way.Dated on May, Anping Shuxin Wire Mesh Company exported 3300 units 3 cells Defensive Barriers to Kenya's Ministry of National Defense Department.



Welded Hot-Dipped Galvanised St Defensive Military Barrier Defensive SGS Certification With Olive Green Geotextile Cloth

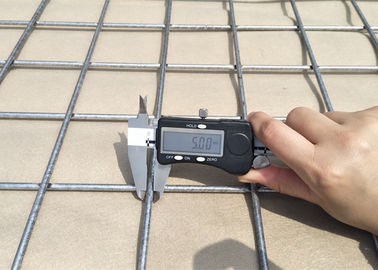

1. Wire Diameter: 4.0mm

2. Mesh Size: 3" (76.2x76.2mm)

3. Panel Size: 1.0 x 1.0 M

4. Diameter of Spring: 4.0mm, used for connecting and collapsible

5. Geotextile: UV Protection Geotextile, the weight is abou 300 g/㎡( Standard)

6. Color:  Military Green

7. Total Size: 1.0 x 1.0 x 3.0 M

8. No. of Cells: 3 Cells

9. Finish: Hot Dipped Galvanized

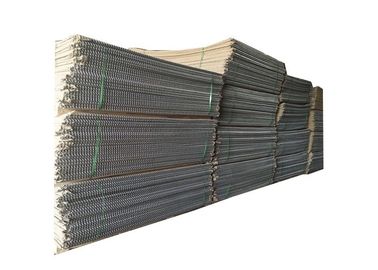

10. Package: Packed in pallet, with Plastic Film or Shrink Film

Welded Hot Dipped Galvanised Military BarrierWelded Hot Dipped Galvanised Military BarrierWelded Hot Dipped Galvanised Military Barrier



The Standard Technical Specifications from SX 1 to SX 19



Welded Military Gabion Box for Retaning Wall
Model Height Width Length
SX-1 54"(1.37M) 42"(1.06M) 32'9"(10M)
SX-2 24"(0.61M) 24"(0.61M) 4'(1.22M)
SX-3 39"(1.00M) 39"(1.00M) 32'9"(10M)
SX-4 39"(1.00M) 60"(1.52M) 32'9"(10M)
SX-5 24"(0.61M) 24"(0.61M) 10'(3.05M)
SX-6 66"(1.68M_ 24"(0.61M) 10'(3.05M)
SX-7 87"(2.21M) 84"(2.13M) 91'(27.74M)
SX-8 54"(1.37M) 48"(1.22M) 32'9"(10M)
SX-9 39"(1.00M) 30"(0.76M) 30'(9.14M)
SX-10 87"(2.21M) 60"(1.52M) 100'(32.50M)
SX-11 48"(1.22M) 12"(0.30M) 4'(1.22M)
SX-12 84"(2.13M) 42"(1.06M) 108'(33M)
SX-19 108"(2.74M) 42"(1.06M) 10'5"(3.18M)



Other Application for  Military Barriers:



1. Perimeter Security Barrier and Defence Wall

    It can connected into a whole use Joint Pin to form a Perimeter Security Barrier and Defence Wall.

2. Temporary Fort and Command Post

    Because of Defensive Barriers can divide into many small cells, can change the direction esaily to form a rectangular Temporary Fort and Command Post.

3. Observation Points and Border Checkpoints

    It can also stacked together to form Observation Points and Border Checkpoints.

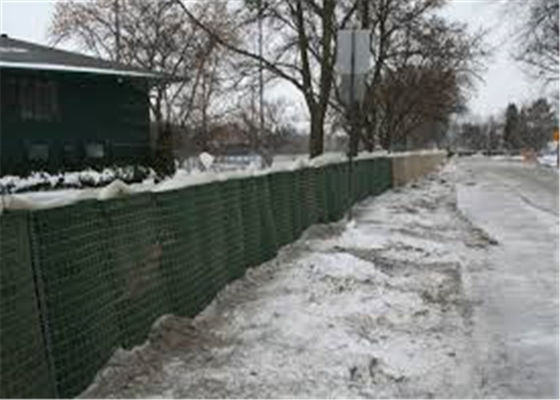

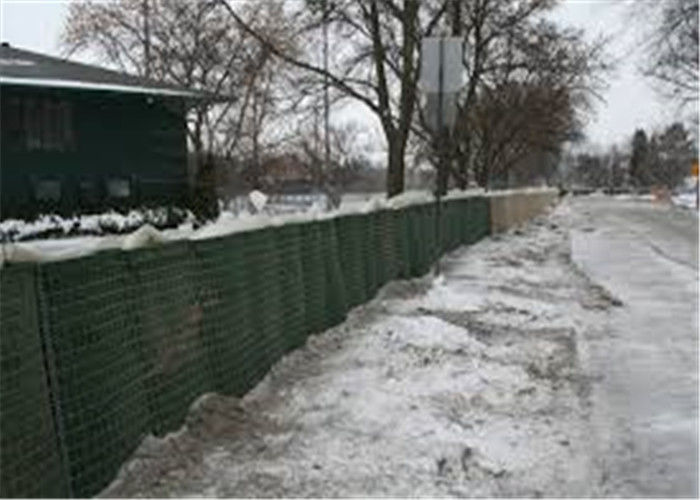

4. Flood Prevention Barrier

    Filled with sand or earth to standard against the Water to protection.



The Advantages of Welded Barrier:



1. Lifetime

    The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.



2. Collapsible

    Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.



3. Strong Protection

    Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.



Welded Hot Dipped Galvanised Military Barrier

Military Barriers Assemble:

are pre-assembled and delivered palletized with joining pins, to enable the connection of individual units, which can then be filled with available material using minimal manpower and commonly available equipment.

Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.

Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations
