Steel Defensive 2x2 Geotextile Lined Military Barrier

Basic Properties
Place of Origin: CN
Brand Name: SHUXIN
Certification: CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E, CO
Model Number: SHUXIN-FPS
Trading Properties
Minimum Order Quantity: 50 UNITS
Price: Negotiated
Standard Packaging: Pallet
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union, ,Paypal, T/A
Supply Ability: 200 Units per week
Product Summary
2 "x 2" Geotextile Lined Military Barrier Army Defensive Gabion Barrier Strong Protection Military Barrier consists of a foldable wire mesh container and heavy fabric liner, and serves as a temporary semi-permanent embankment or obstructs an explosion or small arms. A casual life and a labor-saving ...

Product Details

Highlight:

geotextile lined military barrier

,

2x2 military barrier

,

steel defensive barrier

Raw Material: Low Carbon Steel Wire
Geotextile: 300 G/㎡ Standard

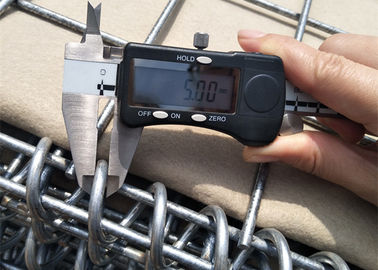

Mesh Diameter: 4.0mm Diameter Wire

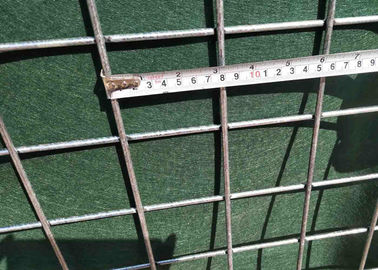

Apeture: 3" (76.2mm×76.2mm)
T/S: 500 - 800 MPA
Accessories: Staple, Joint Pin
Product Description

2 "x 2" Geotextile Lined Military Barrier Army Defensive Gabion Barrier Strong Protection

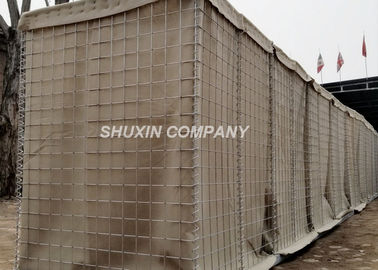

Military Barrier consists of a foldable wire mesh container and heavy fabric liner, and serves as a temporary semi-permanent embankment or obstructs an explosion or small arms. A casual life and a labor-saving war, it is used at almost every U.S. military base and at NATO bases in Afghanistan in Iraq.

This Bastion Barrier has been set to help civil engineers with a wide range of environmental issues for over 10 years. Originally aimed at combating the effects of coastal erosion, this outstanding cage has been widely used in other civil engineering applications around the world.

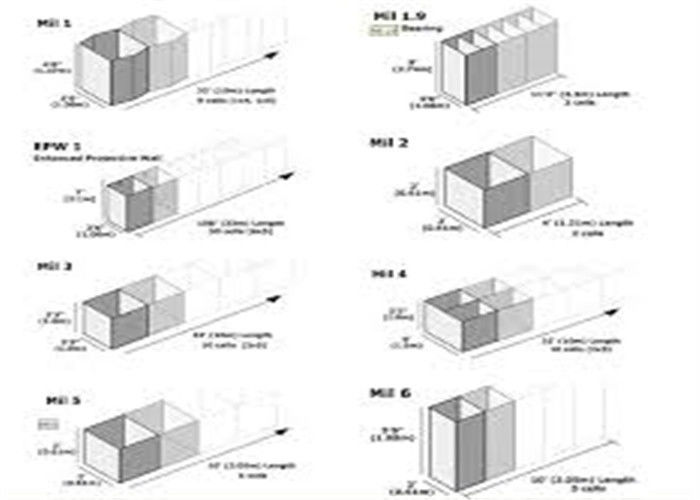

The Standard Technical Military BarrierSpecifications from SX 1 to SX 19



Welded Military Sand Filled Barrier for Retaining Wall
Model Height Width Length
SX-1 54"(1.37M) 42"(1.06M) 32'9"(10M)
SX-2 24"(0.61M) 24"(0.61M) 4'(1.22M)
SX-3 39"(1.00M) 39"(1.00M) 32'9"(10M)
SX-4 39"(1.00M) 60"(1.52M) 32'9"(10M)
SX-5 24"(0.61M) 24"(0.61M) 10'(3.05M)
SX-6 66"(1.68M_ 24"(0.61M) 10'(3.05M)
SX-7 87"(2.21M) 84"(2.13M) 91'(27.74M)
SX-8 54"(1.37M) 48"(1.22M) 32'9"(10M)
SX-9 39"(1.00M) 30"(0.76M) 30'(9.14M)
SX-10 87"(2.21M) 60"(1.52M) 100'(32.50M)
SX-11 48"(1.22M) 12"(0.30M) 4'(1.22M)
SX-12 84"(2.13M) 42"(1.06M) 108'(33M)
SX-19 108"(2.74M) 42"(1.06M) 10'5"(3.18M)



Steel Defensive 2x2 Geotextile Lined Military BarrierSteel Defensive 2x2 Geotextile Lined Military BarrierSteel Defensive 2x2 Geotextile Lined Military BarrierSteel Defensive 2x2 Geotextile Lined Military Barrier

The Application for Military Barrier



Flood Control



1. Flood Prevention Barrier

    From a simple perimeter wall to a complex base infrastructure, Welded Protection Barriers provide rapid expeditionary protection

2. Permanent or Semi-permanent Dike

    Sand Filled Barriers can as the Dike against the Flood permanently or Semi-Permanently.

3. Flood Control Retaining Wall

    Wiht sand and earth in it, Welded Barrier Box can as a retaining Wall to against the flood.

4. Protection Engineering of Seaside Area

    Protection Defensive Barrier is more and more homemade at the seaside area as Protection Fence

5. Protecting Existing Structures

6. Coastal Erosion Control



The Advantages of Welded Defensive Barrier:



1. Lifetime

    The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.



2. Collapsible

    Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.



3. Strong Protection

    Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
