Geotextile welded galvanized gabion galfan defensive barriers for sale in Jordan
Product Description:
1. Introduction
Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for military defense and flood control.
2. Working principle:

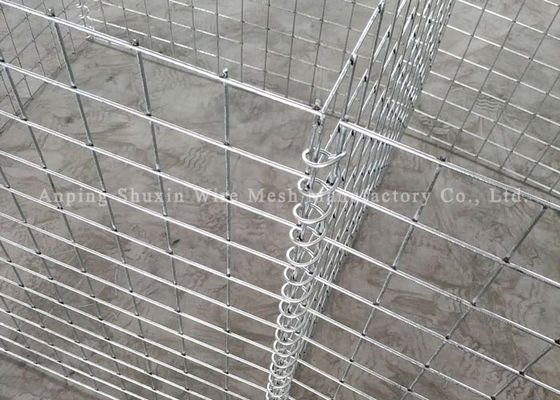

It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.
3. Quality assurance:
Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012
- 1. Wire diameter: 4-5mm
- 2. Mesh size: 3x3 inches (7.62*7.62 cm)
- 3. Panel Size: 13 species
- 4. Application: used for Department of Defense,Military Barriers,River Pretection
- 5. Geotextiles: 300 g/m2,color: gray, military green, sand, etc
- 6. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
- 7. Packaging: Packaging by Pallet and plastic film
Details of Geotextile welded galvanized gabion galfan defensive barriers:
| Model |
Height |
Width |
Length |
Internal Cells |
| SX-1 |
54”(1.37m) |
42”(1.06m) |
32’9”(10m) |
5+4=9 cells |
| SX-2 |
24”(0.61m) |
24”(0.61m) |
4’(1.22m) |
2 cells |
| SX-3 |
39”(1.0m) |
39”(1.0m) |
32’9”(10m) |
5+5=10 cells |
| SX-4 |
39”(1.0m) |
60”(1.52m) |
32’9”(10m) |
5+5=10 cells |
| SX-5 |
24”(0.61m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-6 |
66”(1.68m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-7 |
87”(2.21m) |
84”(2.13m) |
91’(27.74m) |
5+4+4=13 cells |
| SX-8 |
54”(1.37m) |
48”(1.22m) |
32’9”(10m) |
5+4=9 cells |
| SX-9 |
39”(1.0m) |
30”(0.76m) |
30’(9.14m) |
6+6=12 cells |
| SX-10 |
87”(2.21m) |
60”(1.52m) |
100’(30.5m) |
5+5+5+5=20 cells |
| SX-11 |
48”(1.22m) |
12”(0.30m) |
4’(1.22m) |
2 cells |
| SX-12 |
84”(2.13m) |
42”(1.06m) |
108’(33m) |
5+5+5+5+5+5=30 cells |
| SX-19 |
108”(2.74m) |
42”(1.06m) |
10’5”(3.18m) |
6 cells |
Defensive Barrier Applications:
- Military fortifications Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.
- Shooting range Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.
- Flood control Defense barriers are becoming more and more popular and self-controlled. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.
Defensive Barrier Advantages:
1. Removable It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair If a part is damaged, throw it away and connect it with a new one.
Anping Shuxin Wire Mesh Manufactory Co., Ltd. is located in China's largest screen hometown - Anping, Hebei Province, is a professional manufacture, sale, export, trade, integrated enterprise.
My company covers an area of 8,000 square meters, has sophisticated screen production equipment, strong technical force, scientific technology, excellent quality control system.
Our main products : Defensive barrier, weave gabion basket, mesh pallet cage, steel stacking frame, perforated filter tube, etc. It is widely used in warehousing and logistics industry, aquaculture, river management, military protection and filtration industries. Our reputation and products have won the trust and praise of domestic and foreign customers.
To the quality and credibility of the motto for development, to provide customers with reasonable prices, prompt delivery, excellent customer service. We sincerely hope that with the new and old friends to establish a good long-term business relationship, mutual benefit.
FAQ:
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000 USD, 100% in advance. Payment>=5000 USD, 50% T/T in advance ,balance before shipment.
