Military River Pretection 5mm Defensive Barrier

Basic Properties
Place of Origin: Hebei,China
Brand Name: SHUXIN
Certification: COC ISO PVOC
Model Number: SX-HESCO
Trading Properties
Minimum Order Quantity: 100 sets
Price: Negotiated
Standard Packaging: Pallet and plastic film
Delivery Time: 15 Working Days
Payment Terms: Western Union, , L/C, T/T
Supply Ability: 100 sets per week
Product Summary
Military Defensive Barriers/River Pretection Barriers with Green/Sand Geotextile In Burkina Faso Description of Defensive Barrier: 1. Hot galvanized wire Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in ...

Product Details

Highlight:

military river pretection defensive barrier

,

military defensive barrier river pretection

,

5mm defensive barrier

Geotextile: 300 G/m2,waterproof, Good Penetration
Color: Green,Sand
Material: Low-Carbon Iron Wire
Surface Treatment: Heavy Hot Dipped Galvanized
Mesh: Square,3x3 Inches (7.62*7.62 Cm)
Style: Mil 1 -- Mil 12,Mil 19
Wire Diameter: 4-5mm
Usage: Military Defence,River Pretection
Product Description

Military Defensive Barriers/River Pretection Barriers with Green/Sand Geotextile In Burkina Faso





Description of Defensive Barrier:

1. Hot galvanized wire

Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)

2. Spring wire for connecting mesh plates

Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0-5.0 mm

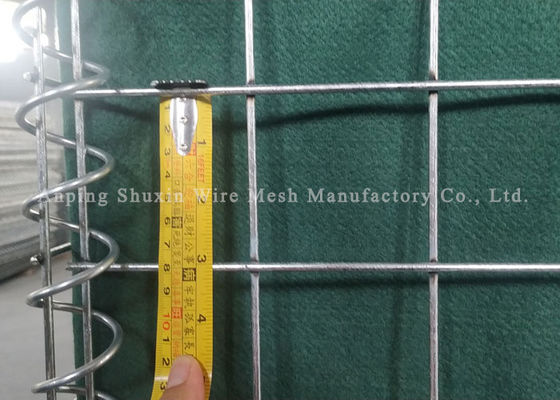

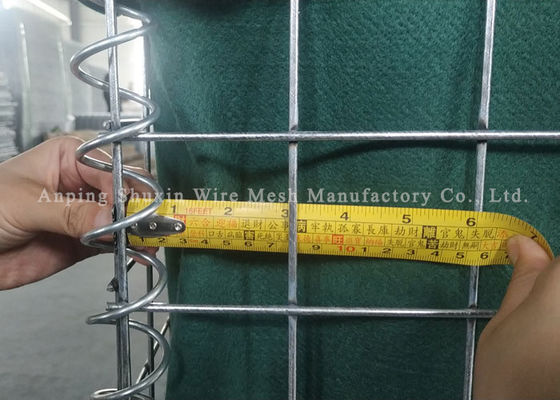

3. Welded mesh plate

We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.

4. Geotextile

It has various colors: sand, brown, gray and military green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.



Military Defensive Barriers/River Pretection Barriers with Green/Sand Geotextile In Burkina Faso



Unit Type

Height (M)

Width (M)

Length (M)

Internal Cells
SX-01 1.37 1.08 10 9
SX-02 0.61 0.61 1.22 2
SX-03 1.0 1.0 10 10
SX-04 1.0 1.5 6 6
SX-05 0.61 0.61 3.05 5
SX-06 1.68 0.61 3.05 5
SX-07 2.21 2.13 8.25 4
SX-08 1.37 1.22 10 9
SX-09 1.0 0.76 6.84 9
SX-10 2.13 1.52 7.6 5

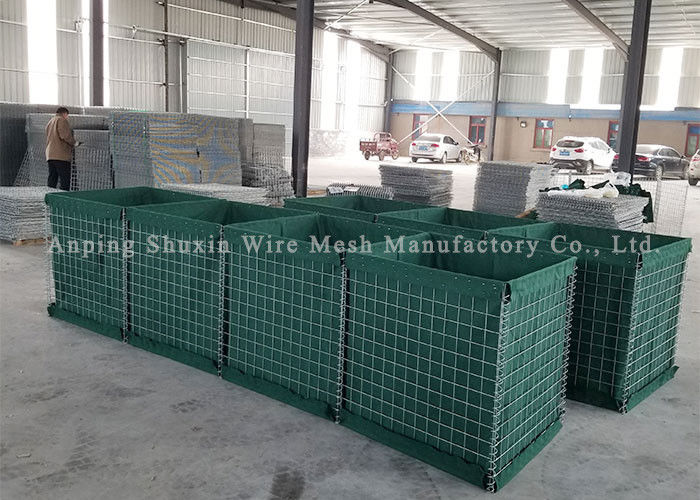

  • Military Defensive Barrier Bastion Sand Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.
  • Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.
  • As the name implies, the military defense barrier was originally mainly used for military, military protection, military fortifications, explosion-proof walls, etc. Now defensive barriers are becoming more and more popular, easy to assemble, and good permeability. Most countries near the coastline choose defensive barriers as flood walls.They all have a long service life. It is widely used in Burkina Faso,Kenya,Iraq,Afghanistan,UAE Jordan,Saudi Arabia.

  • Defense barriers come in many sizes. Most fences can also be stacked and packed into a compact set. Whether used as protective barriers or to define borders, security barriers and T-walls are used to protect equipment, facilities, vehicles and personnel in military, peacekeeping, humanitarian and civil operations.



Advantages of Defensive Barriers:

1. Removable It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.

2. Anticorrosion The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.

3. Easy installation When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.

4. Rapid displacement When you want to use it in another place, just move it and it can be used many times.

5. Easy to repair If a part is damaged, throw it away and connect it with a new one.



Our Services:

  1. Selected high-quality materials and processes follow strict international standards.
  2. A team of technical experts who produce high-quality products.
  3. Products that have been certified or inspected for the third time can be provided as required.
  4. Analyze or suggest the best transportation plan to save costs.
  5. Feedback or reply to you in a timely manner through excellent customer service.
  6. Provide OEM services
  7. One-stop sales team delivers goods quickly
  8. Our promise: Professionalism, Efficiency, Faithful
