Product Details:
|
| Mesh Size: | 3" X 3" | Accessories: | Spring, Joint Pin, Geotextile |
|---|---|---|---|
| Geotextile: | 300 G/m2,waterproof, Good Penetration | Application: | Military Barriers，River Pretection |
| Feature: | Easy To Assemble,Good Permeability. | ||
| High Light: | welded gabion box Military Barrier,defensive type Military Barrier,SGS Military Barrier |
||
Defensive type military sand wall defensive barrier/welded gabion box barriers for sales in Philippines
Product Description:

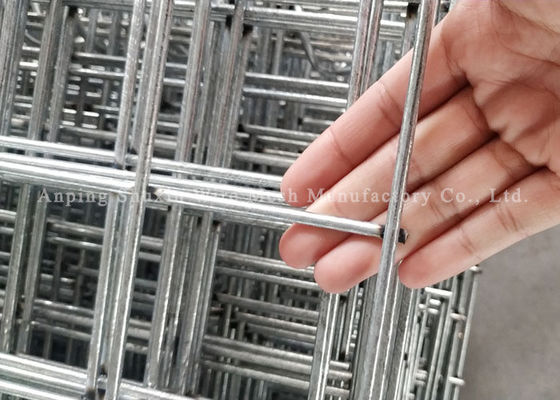

Military Gabion Barrier Bastion Sand Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.

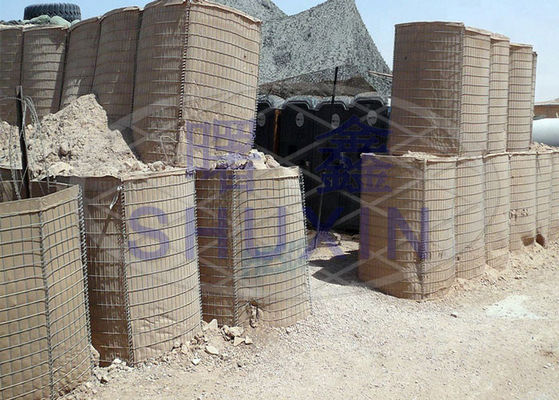

Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.
Details of Defensive type military sand wall defensive barriers in Philippines:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military sand wall defensive barrier/welded gabion box barriers come in many sizes. Most fences can also be stacked and packed into a compact set. Whether used as protective barriers or to define borders, security barriers and T-walls are used to protect equipment, facilities, vehicles and personnel in military, peacekeeping, humanitarian and civil operations.
Applications of the Defensive Barriers:
Peripheral security and defense wall
Equipment protection
Shelter for personnel and materials
Observation point
Defensive firing position sentry
Explosive and contraband search area
Highway inspection station
Border crossing checkpoint
Protect existing structures
Flood control retaining wall beach erosion
Coastal Area Protection Project
Defensive barrier advantages:
1. Removable It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair If a part is damaged, throw it away and connect it with a new one.
