Heavy ISO Military Hesco Bag Defensive Barrier

Basic Properties
Place of Origin: HEBEI
Brand Name: SHUXIN
Certification: ISO
Model Number: SX00
Trading Properties
Minimum Order Quantity: 10000 Set/Sets per Week
Price: USD116-180/SETS
Standard Packaging: Plastic bags, cartons or wooden cases.
Delivery Time: 5-8WORKER
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 100/SETS+15PER
Product Summary
Heavy Military HESCO Barriers Container Military Sand Wall Hesco Barriers For Sale Introduction of Military Barriers : Military barrier rapidly deployable fortification systems Whether used to define boundaries or as a preventative barrier, units have been employed to safeguard personnel, vehicles, ...

Product Details

Highlight:

military hesco bag

,

heavy hesco bag

,

hesco bag defensive barrier

Accessories: Spring, Joint Pin, Geotextile
Mesh Hole: 3" X 3"
Life Duration: ≥ 25 Years
Sureface Treatment: Heavy Galvanized
Packing: Waterproof Paper
Product Description

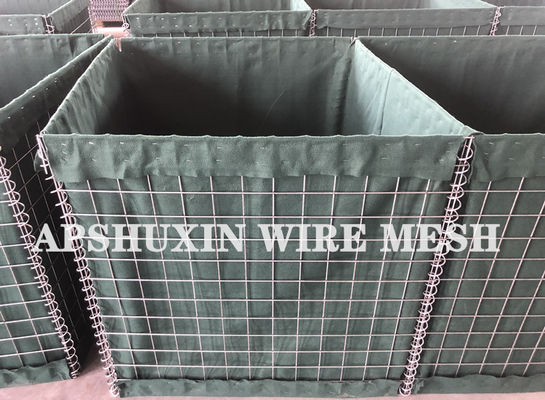

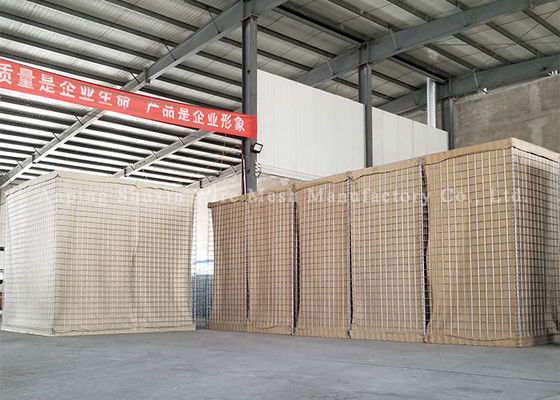

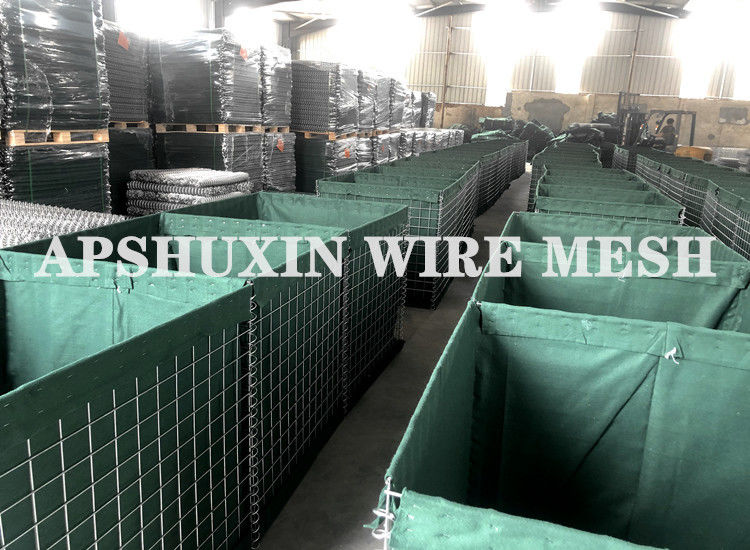

Heavy Military HESCO Barriers Container Military Sand Wall Hesco Barriers For Sale



Introduction of Military Barriers :



Military barrier rapidly deployable fortification systems



Whether used to define boundaries or as a preventative barrier, units have been employed to safeguard personnel, vehicles, equipment, facilities and other vulnerable target areas in a variety of military, peacekeeping, humanitarian and civilian operations. units have also been extensively used in civil applications in flood management, erosion control and slope stability applications.




Bastion barrier is widely used in military operations to product personnels and troops from being attacked by cannons, mortars,VBIEDs. Military defense barrier is a popular expeditionary force protection system which is usually used in boundary security, so it is also named as security barrier.

The hesco barriers is a modern gabion primarily used for flood control and military fortifications.

It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms.

It has seen considerable use in Iraq and Afghanistan.

Quick View of Military Barriers:



Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding

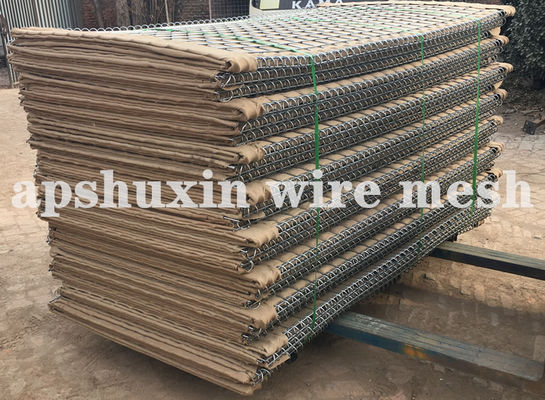

The Militarybarriers come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x 3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').

Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells
