H1.37m Retractable Safety Defensive Barrier Hot Dip Galvanized

Basic Properties
Place of Origin: Hebei China
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: M2
Trading Properties
Minimum Order Quantity: 100
Price: Negotiated
Standard Packaging: wooden pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 units per week
Product Summary
Retractable Safety Barriers Hot-Dip Galvanized Defensive Barrier In Jordan Introduction of HESCO Military Barriers of ANPINGSX As its name indicated, at the beginning, HESCO Barriers mainly used on Military, for Army Protection,military fortifications, Anti-Explosion Wall and etc.It is made of ...

Product Details

Highlight:

h1.37m defensive barrier

,

retractable safety defensive barrier

,

defensive barrier hot dip galvanized

Mesh Hole:: 3''*3''
Advantage: Easy Assembled
Color: White, Sand Color, Military Green
Diameter Of Spring:: 4.00 Mm
Product Description

Retractable Safety Barriers Hot-Dip Galvanized Defensive Barrier In Jordan





Introduction of HESCO Military Barriers of ANPINGSX

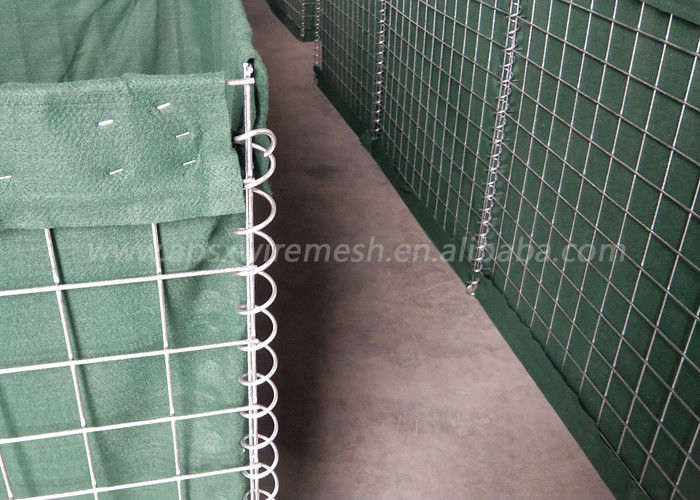

As its name indicated, at the beginning, HESCO Barriers mainly used on Military, for Army Protection,military fortifications, Anti-Explosion Wall and etc.It is made of Collapsible Welded Gabion Mesh and UV Protection Heavy Geotextile lined, The common Surface Treatment is Hot Dipped Galvanized before welding, HDP Galvanized after welding, and Galfan Coated. Both of them have a long using life. It has seen considerable use in Iraq, Afghanistan and Africa.



Material and Use way about HESCO Barriers



It is made of galvanized welded mesh panels ,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.



The Quanlity certificate

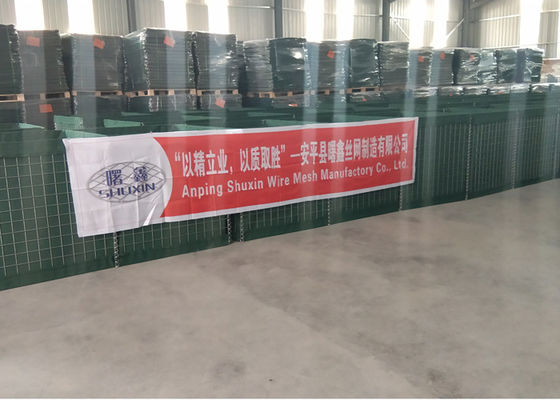

our factory had been verified on site by world-leading inspection company SGS Group.

Our products are strictly follow ISO9001,SGS,CE certificate.

our product comply with BS EN 10244-2:2009 & BS EN 1208-2:2012



Defensive Mesh gabion box Application:



1. Police force points and Check points

2. Military Defensive barriers

3. Observation points and border checkpoints

4. Military barrier fortification system

5. Border control and temporary accommodation bunkers



The Advantages for Barrier:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.


2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.


3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.


4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times


5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.



Defensive Barrier  Wall specification:



Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells





1. Usually the HESCO Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.

2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin to connect(@HESCO Barrier Installation).

3. Full Fill the sand and earth in it and compaction

4. If you want more High and Wide of it, You can stack the HESCO Barrier on each other.

H1.37m Retractable Safety Defensive Barrier Hot Dip Galvanized
