Customized 0.61x0.61x1.21m Deep Welding Military Barrier Sand Fill

Customized 0.61x0.61x1.21m Deep Welding Military Barrier Sand Fill
Customized 0.61x0.61x1.21m Deep Welding Military Barrier Sand Fill Customized 0.61x0.61x1.21m Deep Welding Military Barrier Sand Fill Customized 0.61x0.61x1.21m Deep Welding Military Barrier Sand Fill

Large Image :  Customized 0.61x0.61x1.21m Deep Welding Military Barrier Sand Fill

Product Details:
Place of Origin: Hebei,China
Brand Name: SHUXIN
Certification: SGS COC ISO PVOC
Model Number: SX-Mil 2
Payment & Shipping Terms:
Minimum Order Quantity: 130 sets
Price: Negotiated
Packaging Details: Pallet and plastic film
Delivery Time: 15 Working Days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 100 sets per week

Customized 0.61x0.61x1.21m Deep Welding Military Barrier Sand Fill

Description

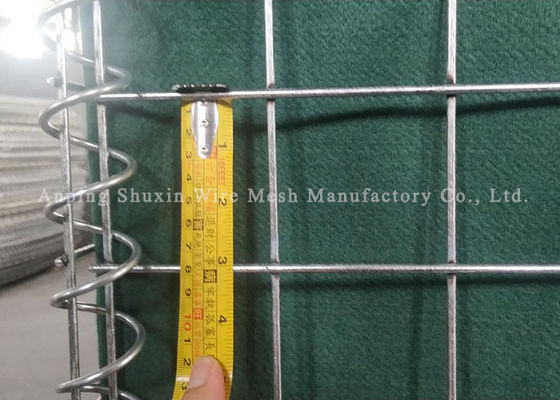

Mesh Size: 3" X 3",(7.62*7.62cm) Accessories: Spring, Joint Pin, Geotextile
Geotextile: 300 G/m2,waterproof, Good Penetration Application: Military Barriers,River Pretection
Feature: Easy To Assemble,Good Permeability. Raw Materials: Hot Dipped Galvanized
Life Duration: ≥ 25 Years
High Light:

customized deep welding military barrier

,

deep welding customized military barrier

,

3x3 inch mesh military barrier

Customized 0.61x0.61x1.21m Deep Welding Sand Fill Barriers For River Protection/Military Defensive in Ghana





Product Description:

  • 1.Introduction

Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for military defense and flood control.

  • 2. Working principle:

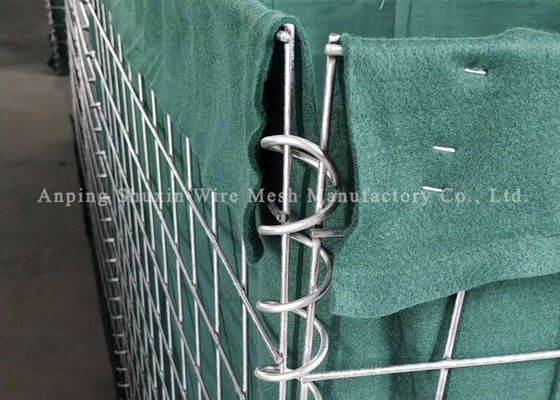

It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.

  • 3. Quality assurance:

Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012





Details of Deep Welding Sand Fill Barriers For River Protection/Military Defensive in Ghana:



Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells



Applications of the Defensive Barriers:

Peripheral security and defense wall

Equipment protection

Shelter for personnel and materials

Observation point

Defensive firing position sentry

Explosive and contraband search area

Highway inspection station

Border crossing checkpoint

Protect existing structures

Flood control retaining wall beach erosion

Coastal Area Protection Project

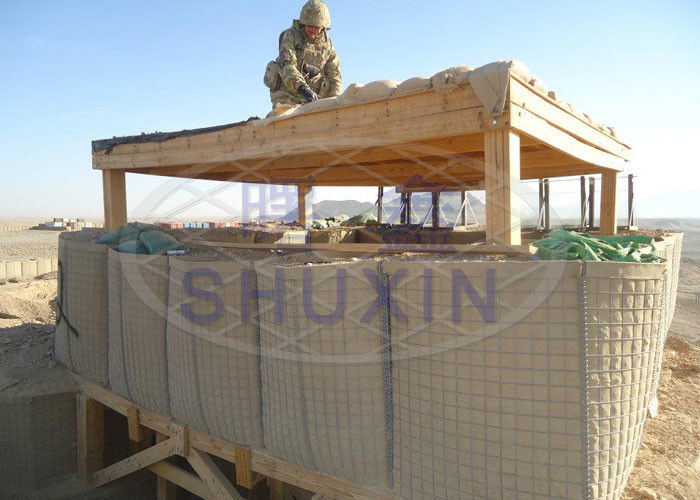

1. Military fortifications Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.

2. Shooting range Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.

3. Flood control Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.



Advantages of Defensive Barriers:

1. Removable It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.

2. Anticorrosion The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.

3. Easy installation When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.

4. Rapid displacement When you want to use it in another place, just move it and it can be used many times.

5. Easy to repair If a part is damaged, throw it away and connect it with a new one.





Customized 0.61x0.61x1.21m Deep Welding Military Barrier Sand Fill 0
