Product Details:
|
| Material: | Steel Wire | Mesh Wire: | 5.0 Mm |
|---|---|---|---|
| Aperture: | 3" (76.2mm) X 3" (76.2mm) | Surface Treatment: | Heavy Hot Dipped Galvanized |
| Geotextile: | 300 Gsm Sand Color,Green Color | Life Duration: | 25 Years |
| Height: | 7'3" | Geotextile Color: | Beige-sand Color |
| High Light: | 76.2mm bastion barrier,sand filled barriers customized,sand filled bastion barrier |
||
Height 7'3" Military Hesco Barriers 76.2mm Hesco Bastion With Geotextile Filter Fabric
1. Introduction :

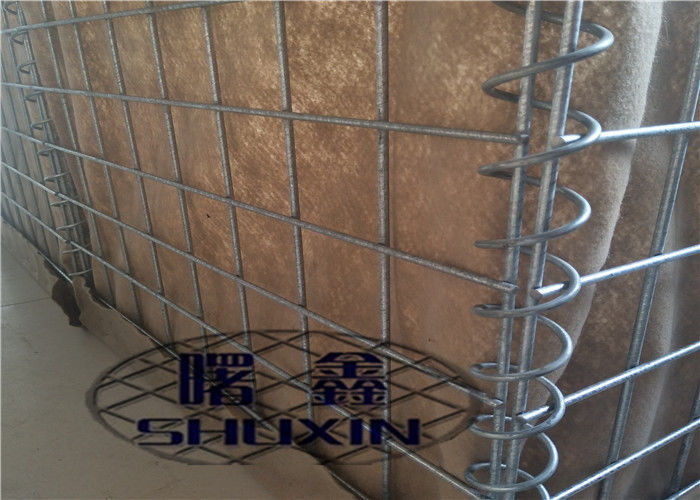

Hesco Bastion is gabion box. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.
Gabion bastions are mainly used in military and flood control for its modular structure and quick setup. For military, a gabion with 24 inches thickness can stop rifle bullets, shell fragments and other shrapnel. While for flood protection, gabion can be assembled soonest and come into use.
In addition to the standard is constantly developing its portfolio of products in response to its customers’ requirements. Multi-cellular wall system force protection product
2. Material:
It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
3. Finish: electro galvanized,hot dipped galvanized,galfan coated,
4. Hesco Bastion Specifications:
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be white,beige-sand color.
Hesco Bastion Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Hesco Bastion Use Deatils:
Unpack---Pull out and set up-----Connect together---- Fill and compact----Finished
Application :
