Mil 9 Galvanized Military Sand Hesco Wall 300gsm Geotextile

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: ISO CE SGS COC
Model Number: gabion
Trading Properties
Minimum Order Quantity: 10 unit
Price: Negotiated
Standard Packaging: in wooden pallet and plastic film outside or as your requirement
Delivery Time: 15 working days
Payment Terms: Western Union, , T/T, L/C
Supply Ability: 100 units per week
Product Summary
Height 5'6" Galvanized Military Sand Wall Hesco Barrier with Geotextile Filter Fabric Description of Military Sand Wall Hesco Barrier : Military Sand Wall Hesco Barrier , has the ability of resisting explosive shock wave and can limit the damage of explosion to a certain range of wall. Military Sand ...

Product Details

Highlight:

military sand hesco wall

,

galvanized hesco wall

,

hesco wall mil 9

Material: Low Carbon Steel Wire
Mesh Wire: 5.0 Mm
Spring Wire: 4.0 Mm
Height: 5'6"
Geotextile: 300gsm Sand Color,Green Color
Life Duration: ≥ 25 Years
Size: Mil 1-mil10
Geotextile Color: Beige
Product Description

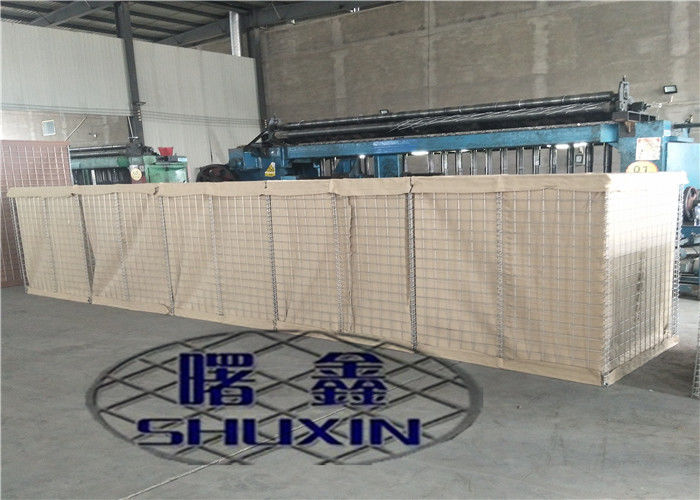

Height 5'6" Galvanized Military Sand Wall Hesco Barrier with Geotextile Filter Fabric





Description of  Military Sand Wall Hesco Barrier :



Military Sand Wall Hesco Barrier , has the ability of resisting explosive shock wave and can limit the damage of explosion to a certain range of wall.


 Military Sand Wall Hesco Barrier  also named as sand cage, welded gabion box, wire mesh gabion box, stone cage.



---  Material have galvanized , galfan coated wire
---  Experienced factory in manufacturing .
---  U.S Military approved quality .
---  Short shipping time.



The Military Sand Wall Hesco Barrier is a modern gabion primarily used for flood control and military fortifications . It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms . It has seen considerable use in many countries .






Specification of Military Sand Wall Hesco Barrier :


1)  wire diameter: 4mm-5mm


2)  hole: 2''x2'',3''x3'',4''x4''


3)  hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.


4)  geotextile: in non-woven geotextile,color can be green,beige-sand color.


                                             Military Sand Wall Hesco Barrier Specification



Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells

Military Sand Wall Hesco Barrier Application :


 1.    Military Safety Explosion-proof Wall
 2.   Three-dimensional explosion-proof wall
 3.   Explosion-proof wall of training base
 4.   Explosion-proof wall of field warehouse
 5.   Explosion-proof walls in field camps
 6.   Explosion-proof wall of dangerous goods warehouse
 7.   Explosion-proof wall of chemical plant
 8.  Explosion-proof wall of refinery
 9.  Explosion-proof wall in firecracker factory
10. Explosion-proof wall of storage depot
11. Explosion-proof wall of barracks
12. Flood protection wall
13. Urban Waterlogging and Flood Control Wall
14. Emergency Flood Control Wall
15. Landslide prevention facilities
16. Mobile enclosure of workshop





Military Sand Wall Hesco Barrier  Features:

1. A pre-fabricated gabion of galvanized welded mesh steel fitted with a UV-protecting.

2. Polypropylene geo-textile liner.

3. Filling material is an easy- obtained mix of sand and small stones.

4. It can be used together to any length, and can be stacked for additional height.

Military Sand Wall Hesco Barrier  Production Process



Mil 9 Galvanized Military Sand Hesco Wall 300gsm Geotextile





Mil 9 Galvanized Military Sand Hesco Wall 300gsm Geotextile
