Product Details:
|
| Material: | Low Carbon Steel Wire | Mesh Wire: | 5.0 Mm |
|---|---|---|---|
| Spring Wire: | 4.0 Mm | Surface Treatment: | Heavy Hot Dipped Galvanized |
| Geotextile: | 300gsm Sand Color,Green Color | Life Duration: | ≥ 25 Years |
| Size: | Mil 1-mil 10 | Height: | 3'3" |
| High Light: | mil 3 hesco baskets,military sand wall hesco baskets,2x2inch hole hesco baskets |
||

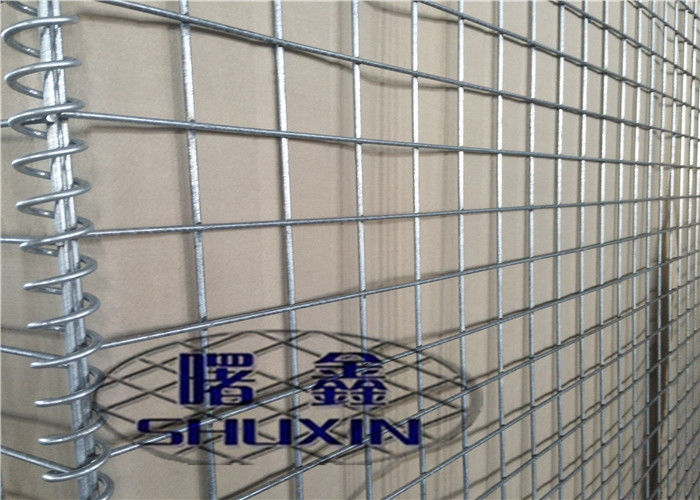

3'3" height Defensive bastion hesco barriers for military sand wall
Description :
Explosion-proof Wall , has the ability of resisting explosive shock wave and can limit the damage of explosion to a certain range of wall.
bastion hesco barriers also named as sand cage, welded gabion box, wire mesh gabion box, stone cage.
--- Material have galvanized , galfan coated wire
--- Experienced factory in manufacturing hesco.
--- U.S Military approved quality .
--- Short shipping time.
Gabion bastions also known as HESCO Barrier Rock basket retaining wall, hesco barrier, flood control barrier, etc. which is made of the steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the military to protect safety.
Specification of bastion hesco barriers :
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be green,beige-sand color.
bastion hesco barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
bastion hesco barriers Application :
1. Military Safety Explosion-proof Wall
2. Three-dimensional explosion-proof wall
3. Explosion-proof wall of training base
4. Explosion-proof wall of field warehouse
5. Explosion-proof walls in field camps
6. Explosion-proof wall of dangerous goods warehouse
7. Explosion-proof wall of chemical plant
8. Explosion-proof wall of refinery
9. Explosion-proof wall in firecracker factory
10. Explosion-proof wall of storage depot
11. Explosion-proof wall of barracks
12. Flood protection wall
13. Urban Waterlogging and Flood Control Wall
14. Emergency Flood Control Wall
15. Landslide prevention facilities
16. Mobile enclosure of workshop
Explosion-proof walls can be widely used in search areas of surrounding safety and defense walls, equipment revetment, explosives and contraband, ammunition compounds, personnel and material bunkers, observation points, defensive shooting positions, highway checkpoints, border checkpoints.
Protect existing structures, highway traffic management, flood control, River course, emergency flood control deployment, erosion control retaining wall
Characteristics of Explosion-proof Wall
Easy to handle and install
High strength and impact resistance
Long life, normal use
It can be filled with sand, cement, stone and soil.
bastion hesco barriers Features:
bastion hesco barriers Production Process
