Product Details:
|
| Mesh Hole: | 3"x3" | Surface Treatment: | Heavy Hot Dipped Galvanized |
|---|---|---|---|
| Wire Diameter: | 5mm Or 4mm | Geotextile: | 300 Gsm |
| Application: | River Flood Protection, Army | Height: | 7'3" |
| Warranty: | ≥ 3 Years | ||
| High Light: | double channel hesco military,hesco military mil 3,sand filled hesco military |
||
Height 7'3" Double Channel Hesco Barrier Mil 3 Supply Heating And Plumbing With Geotextile Filter Fabric
Hesco Barrier is one modern welded gabion basket which can be filled with sand, earth, gravel, aggregates, rubble, bricks, even some fine sediment, etc.
Hesco defensive barriers are widely used for explosion-proof against attacks from rifle bullets, shell fragments, rocket propelled grenade round, especially used in Afghanistan, Syria, Iraq, Iran, Jordan, etc. It is also used for flood control in cities, so its another name is hesco flood control barrier.
In both military sand security applications the military barrier affords protection from small arms fire right up to VBIEDs and artillery. PeiGuan's military defensive barriers are mainly used for Homeland Security applications providing critical infrastructure protection including perimeter security, vehicle barriers and inspection lanes as well as temporary or permanent barriers.
It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.
Quick Details
Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |

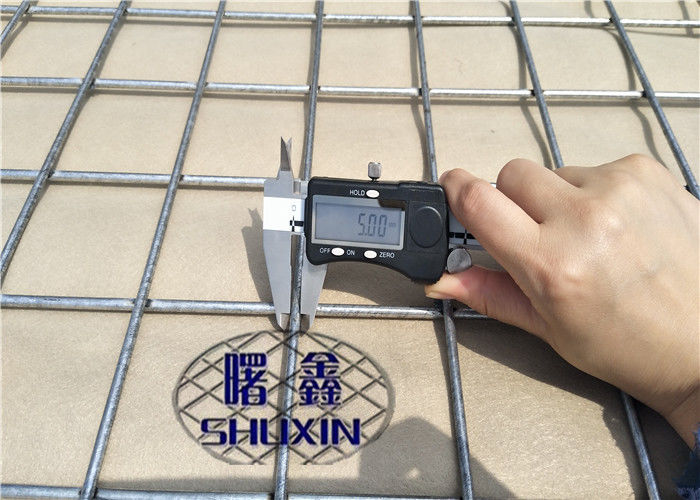

1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
Hesco Barrier progress
