Product Details:
|
| Material: | Q195 Low Carbon Wire | Mesh Wire: | 5.0 Mm |
|---|---|---|---|
| Spring Wire: | 4.0 Mm | Height: | 3'3" |
| Geotextile: | 300gsm Sand Color,Green Color | Life Duration: | ≥ 25 Years |
| Warranty: | ≥ 3 Years | Geotextile Color: | Beige |
| High Light: | 5mm military hesco blast walls,sand filled hesco blast walls,geotextile filter fabric hesco blast walls |
||
Height 3'3" Welded Defensive Barriers Price Military Hesco Barriers For Sale With Geotextile Filter Fabric

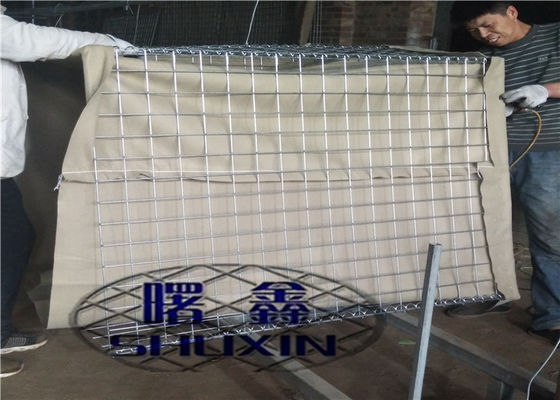

Introduction of Military Hesco Barriers :
Military wall defensive barrier is gabion box . It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.
Military wall are mainly used in military and flood control for its modular structure and quick setup. For military, a gabion with 24 inches thickness can stop rifle bullets, shell fragments and other shrapnel. While for flood protection, gabion can be assembled soonest and come into use.
In addition to the standard Container unit, is constantly developing its portfolio of products in response to its customers’ requirements. Multi-cellular wall system force protection product
Specification of Military Hesco Barriers :
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be green,beige-sand color.
Military Hesco Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military Hesco Barriers Application :
Military Defense
Perimeter Security Barrier and Defence Wall
Temporary Fort and Command Post
Observation Points and Border Checkpoints
Military Barrier Fortification System
Equipment Revetment
Explosives and Contraband Search Areas
Guard Posts
Personnel and Material Bunkers
Shooting Range
Flood Control
Flood Prevention Barrier
Permanent or Semi-permanent Dike
Flood Control Retaining Wall
Protection Engineering of Seaside Area
Protecting Existing Structures
Coastal Erosion Control
