Mil 7 Flood Control Geotextile Fabric Hesco Barrier

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: ISO CE SGS COC
Model Number: Military Gabion Box
Trading Properties
Minimum Order Quantity: 10 unit
Price: Negotiated
Standard Packaging: pallet and plastic film outside
Delivery Time: 15 working days
Payment Terms: Western Union, , L/C, T/T
Supply Ability: 100 units per week
Product Summary
Height 7' Hesco Barriers HESCO MIL Used For Flood Control And Military BarrierFortifications With Geotextile Fabric 1. Introduction : Hesco Barriers HESCO / Military Sand Sall is gabion box. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, ...

Product Details

Highlight:

geotextile fabric hesco barrier

,

flood control hesco barrier

,

mil 7 hesco barrier

Material: Steel Wire
Mesh Wire: 5.0 Mm
Aperture: 3" (76.2mm) X 3" (76.2mm)
Surface Treatment: Heavy Hot Dipped Galvanized
Geotextile: 300 Gsm Sand Color,Green Color
Life Duration: 25 Years
Warranty: 3 Years
Geotextile Color: Beige-sand Color
Height: 7'
Mil: 7
Product Description

Height 7' Hesco Barriers HESCO MIL Used For Flood Control And Military BarrierFortifications With Geotextile Fabric



1. Introduction :

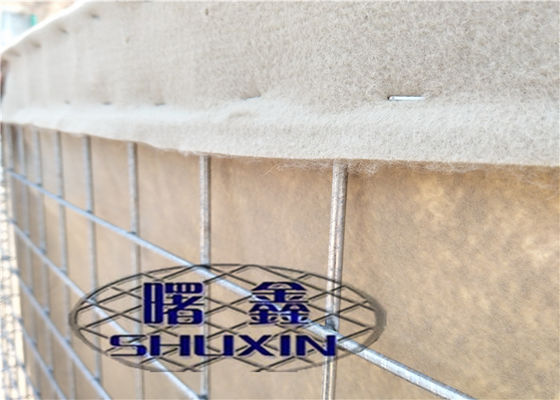

Hesco Barriers HESCO / Military Sand Sall is gabion box. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.


Gabion bastions are mainly used in military and flood control for its modular structure and quick setup. For military, a gabion with 24 inches thickness can stop rifle bullets, shell fragments and other shrapnel. While for flood protection, gabion can be assembled soonest and come into use.



In addition to the standard is constantly developing its portfolio of products in response to its customers’ requirements. Multi-cellular wall system force protection product


2. Hesco Barriers HESCO Material:


It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.


3. Hesco Barriers HESCO Finish: electro galvanized,hot dipped galvanized,galfan coated,


4.  Hesco Barriers HESCO Specifications:


1)  wire diameter: 4mm-5mm
2)  hole: 2''x2'',3''x3'',4''x4''
3)  size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4)  geotextile: in non-woven geotextile,color can be white,beige-sand color.


                                    Hesco Barriers HESCO Specification



Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells



Mil 7 Flood Control Geotextile Fabric Hesco Barrier

Mil 7 Flood Control Geotextile Fabric Hesco Barrier



Hesco Barriers HESCO Use Deatils:



Unpack---Pull out and set up-----Connect together---- Fill and compact----Finished



Hesco Barriers HESCO Application :


♦  Perimeter security and defense walls
♦  Equipment revetments
♦  Personnel and material bunkers
♦  Observation points
♦  Defensive firing positions
♦  Guard posts
♦  Protection engineering of seaside area
♦  Border crossing checkpoints
♦  Protecting existing structures
♦  Flood control retaining wall



Our company has obtained a pollution discharge permit.The delivery date is guaranteed
1.FACTORY DIRECT PRICE
2.20 YEARS FACTORY
3.NICE QUALITY
4.QUICK SHIPPING WITH 7 DAYS
5.OEM IS ACCEPT
6.SUPPORT 7 DAYS REFUND MONEY
7.INSTALLATION GUIDE


Mil 7 Flood Control Geotextile Fabric Hesco Barrier
