Product Details:
|
| Mesh Size: | 3"x 3" Or 8cm X 8cm | Internal Cells: | 5+4=9 Cells |
|---|---|---|---|
| Geotextile Fabric: | 300g/㎡ | Geotextile Color: | White, Beige Or Military Green |
| Application: | Military Defensive Barrier, Flood Barrier, Etc. | Height: | 3'3" |
| High Light: | hesco defensive barrier,armament defensive barrier,8x8cm galvanized defensive barrier |
||

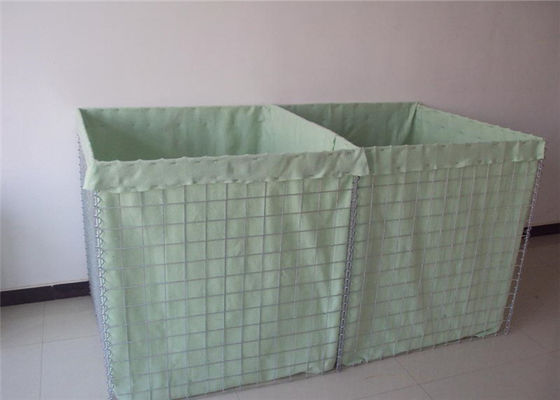

Height 3'3" Welded Hesco Military Barrier Galvanized Armament Hesco Barrier With Geotextile Filter Fabric
Welded Hesco Military Barrier are some lined units assembled by galvanized gabion baskets with heavy duty non-woven geotextile to prevent flood. China barrier bastion factory-Anping Shuxin Wire Mesh Manufactory Co.,Ltd is one original and professional maufacturer located in Anping county-the largest wire mesh base in China.
Available OEM & ODM in developing military barriers, we can provide all ideal designs for your projects. The popular unit types of blast wall , all types can be customized to recoverable types . Regarding the color of geotextile, available in beige color, militatry green color and grey color,etc. We will meet any special sizes you required, and support professional advises according to your projects.
Welded Hesco Military Barrier operational principle
It is made of galvanized welded mesh panels, spring with other fittings, canbe filled with sand,earth,
cement, stone, can be used in separate cell or some cells joint together.
Welded Hesco Military Barrier Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Welded Hesco Military Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Welded Hesco Military Barrier Company service
Welded Hesco Military Barrier Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
