Product Details:
|
| Material: | HDP Galvanized Wire | Wire Diamenter: | 5.0mm |
|---|---|---|---|
| Hole Size: | 3"*3" ，76.2*76.2mm | Sureface Treatment: | Hot Dipped Galvanized |
| Application: | Army Military And River Pretection | Geotextile: | 300gsm Sand Color |
| Color: | Green, Brown, Sand | Life Span: | ≥ 25 Years |
| High Light: | hot dip galvanized hesco sand barrier,anti corrosion hesco sand barrier,5mm hesco sand barrier |
||
Anti-corrosion & Anti-rust Hot-dip Galvanized Folding Steel Wire Mesh Defensive HESCO Barrier
Military Gabion Barrier Bastion Sand Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.
Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.
Material : All wires conform to BS EN10218-2012,Zinc-Alunminum coating are to BS EN 10244-2:2009

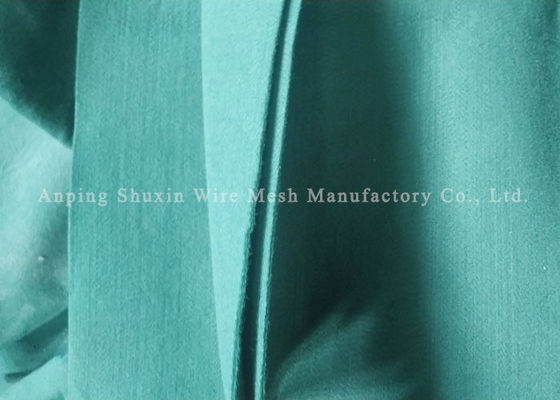

Geotextile: heavy duty geotextile, non-woven,permeable,
polypropulene farbric
Geotextile color: beige or green color
Mesh Hole: 3” X 3”
Unit Size : 2.13m x 1.06m x 33m
Cells:1unit=5 cells+5cells+5cells+5cells+5cells+5cells=30cells
A geotextile lined unit for general use as an earth filled barrier .
The units are suitable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the construction of protective walls and barriers.
The Size Sheet for Defensive HESCO Barrier:
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Application of Defensive HESCO Barrier:
Working principle:
It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.
Quality assurance:
Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012
SHUXIN company had been produce welded wire mesh products hesco barriers more than 15 years.
our products been supplied many countries's department of defense. and army force.
such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
