Military Sand Filled Heavy Galvanized Defensive Bastion Barriers Hesco Blast Wall

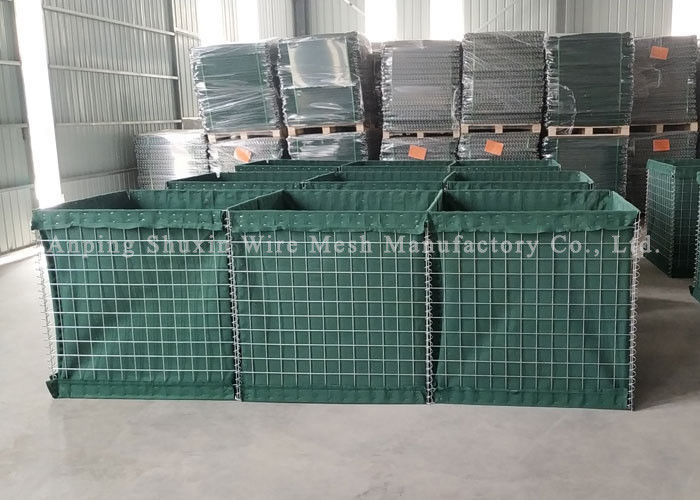

Military Galvanized Defensive Barrier Bastion Blast Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.
Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.
Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)
- Spring wire for connecting mesh plates
Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0 mm

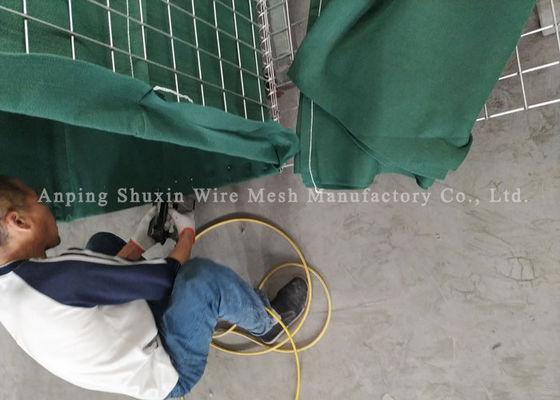

We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.

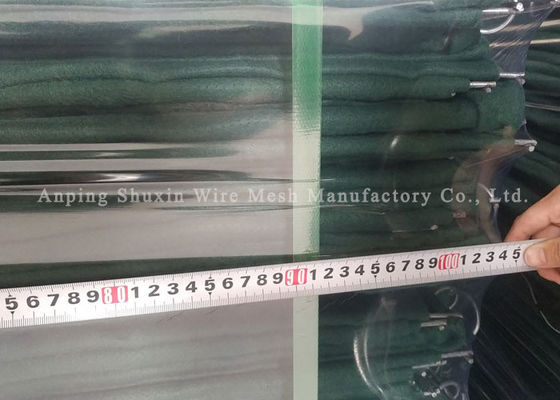

It has various colors: sand, brown, gray and military green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.
Specifications of defensive barrier (SX1-SX12):
| Model |
Height |
Width |
Length |
NO.of cells |
| SX-1 |
4'6''(1.37m) |
3'6'' (1.06m) |
32' (10m) |
9 cells (1*4,1*5) |
| SX-2 |
7' (2.1m) |
3'6'' (1.06m) |
108' (33m) |
30 cells(6*5) |
| SX-3 |
2'(0.61m) |
2'(0.61m) |
4' (1.21m) |
2 cells |
| SX-4 |
3'3'' (1.0m) |
3'3'' (1.0m) |
32' (10m) |
10 cells (2*5) |
| SX-5 |
2'(0.61m) |
2'(0.61m) |
10' (3.05m) |
5 cells |
| SX-6 |
5'6'' (1.68m) |
2'(0.61m) |
10' (3.05m) |
5 cells |
| SX-7 |
7'3'' (2.21m) |
7' (2.1m) |
90' (27.74m) |
13 cells (2*4,1*5) |
| SX-8 |
4'6'' (1.37m) |
4' (1.22m) |
32' (10m) |
9 cells (1*4,1*5) |
| SX-9 |
3'3'' (1.0m) |
2'6'' (0.76m) |
30' (9.14m) |
12 cells (2*6) |
| SX-10 |
7' (2.1m) |
5' (1.52m) |
95' (30.5m) |
20 cells (4*5) |
| SX-11 |
3'3'' (1.0m) |
3'3'' (1.0m) |
3'3'' (1.0m) |
1 cell |
| SX-12 |
7'3'' (2.21m) |
7'3'' (2.21m) |
7'3'' (2.21m) |
1 cell |
Advantages of Defensive Barrier :
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.
Applications of Defensive Barrier :
Perimeter security and defensing walls
Equipment revetments
Explosive and contraband search areas
Personnel and material bunkers
Observation points
Defensive firing positions
Highway checkpoints
Border crossing checkpoints
Protection existing
High way traffic management
Flood control
Water courses
Emergency flood deployment
