Product Details:
|
| Material: | Low Carbon Steel Wire | Mesh Hole: | 76.2mm×76.2mm/3''x3'' |
|---|---|---|---|
| Mesh Diameter: | 5.0 Mm | Spring: | 4.0mm |
| Parts: | Mesh Panel And Geotextile Connected By Spring | Geotextile: | 300 G/㎡ Standard |
| Package: | Wooden Pallets | Accessories: | Connect Hooks |
| High Light: | hot dipped galvanized defensive barrier,welded box defensive barrier,defensive barrier for flood prevention |
||

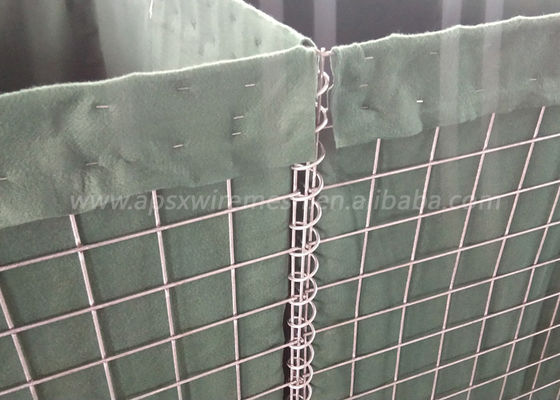

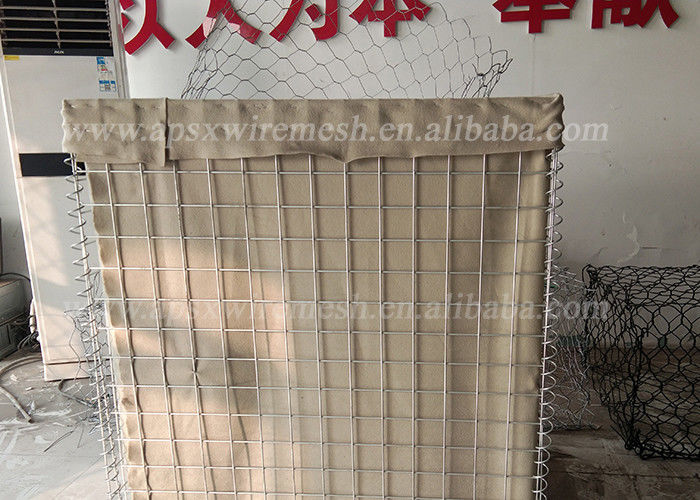

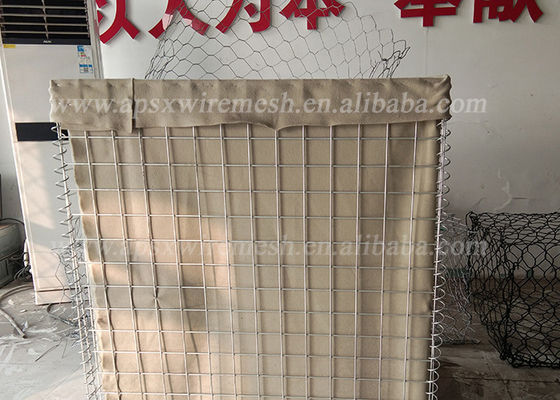

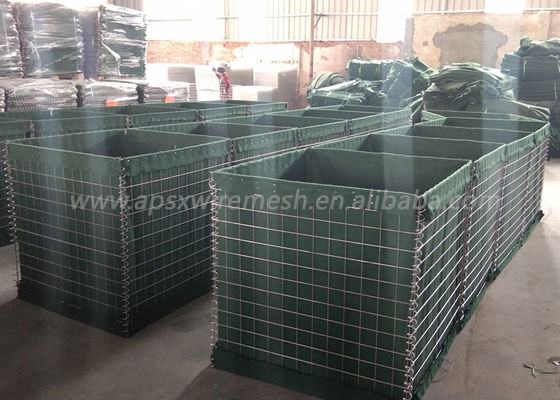

Hot Dipped Galvanized Welded Gabion Box HESCO Defensive Barrier For Flood Prevention
Hot Dipped Galvanized Gabion Box with Geotextile is also named as bastion, defense wall,Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system made of Galvanized welded mesh and lined with non-woven geotextile.
Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.
HESCO Defensive Barrier Specifications
| Technical Specification for Barrier panel | |
| Steel Wire | 0.1% carbon Max steel |
| Wire Thickness | 3.5mm-5.0mm |
| Wire Tensile | 500-800Mpa |
| Welding Tensile | 50-100% of wire tensile strength |
| Mesh Size | 76.2×76.2mm |
| Surface Treatment | Zinc coating or Zinc-Alu coating 40-600g/sqm |
| Technical Specification for Geotextile Fabric | |
| Color | Beige sand,Olive green,Grey |
| Mass(g/sqm) | 250,300,350 |
| Tensile strength | 16kN |
| Tear Strength | 0.42kN |
| CBR Puncture | 3.1kN |
|
UV strength retention ASTM D4355 |
50% at 500hours (5 years use life in common environment) |
| 70% at 500hours (10 years use life in common environment) |
|
Other Application for Welded Defensive HESCO Barriers:
1. Police force points and Check points.
2. Military Defensive barriers.
3. Observation points and border checkpoints.
4. Military barrier fortification system.
5. Border control and temporary accommodation bunkers.
The Advantages for Barrier:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.
More ways to use
1. Usually the HESCO Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.
2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin to connect.
3. Full Fill the sand and earth in it and compaction
4. If you want more High and Wide of it, You can stack the HESCO Barrier on each other.
Packaging:
The welded gabion mesh are collapsed when shipping.Usually in nude, or in pallet then wrapped with plastic film.Besides, customers' request are also available.
In addition, we have obtained ISO EU CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Britain, France, Germany, USA,UK Kenya, Zambia, Philippines, Thailand, Korea, New Guinea, Greece, Mexico.
