Mesh 3" X 3" Galvanized Steel Sand Soil Mil 2 Military Barrier

Mesh 3" X 3" Galvanized Steel Sand Soil Mil 2 Military Barrier
Mesh 3" X 3" Galvanized Steel Sand Soil Mil 2 Military Barrier Mesh 3" X 3" Galvanized Steel Sand Soil Mil 2 Military Barrier Mesh 3" X 3" Galvanized Steel Sand Soil Mil 2 Military Barrier

Large Image :  Mesh 3" X 3" Galvanized Steel Sand Soil Mil 2 Military Barrier

Product Details:
Place of Origin: CN
Brand Name: SHUXIN
Certification: ISO:9001
Model Number: Mil 3
Payment & Shipping Terms:
Minimum Order Quantity: 100 unit
Price: Negotiated
Packaging Details: pallet
Delivery Time: 10 Working Days
Payment Terms: Western Union, L/C, T/T,Paypal
Supply Ability: 200 unit per week

Mesh 3" X 3" Galvanized Steel Sand Soil Mil 2 Military Barrier

Description
Material: Q 195 Low Carbon Wire Mesh Wire: 5.0mm
Mesh: 3"x3" Surface Treatment: Hot Dipped Galvanized
Geotextile: 300gsm Sand Color,Green Color Application: Military Protection
High Light:

mil 2 military barrier

,

3x3 inch military barrier

,

strong protection hesco flood barriers

Mesh 3" x 3" Galvanized Steel Sand Soil Military Hesco Barriers

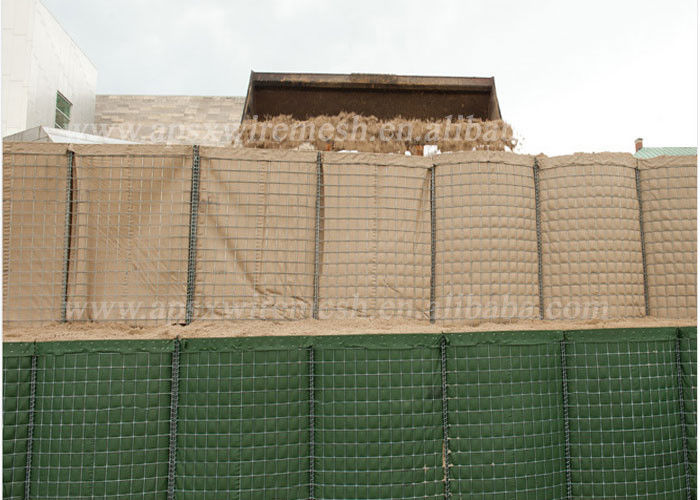

Introduction of Hesco Barrier



Hesco barrier also named as Hesco bastion, Hesco defense wall, Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall for military use, Wire mesh gabion box, Stone cage etc.



The Hesco barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells joint together .



Hesco barrier is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins.It is easy installed with using minimal manpower and commonly available equipment.After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely use in military to protect safety.



operational principle

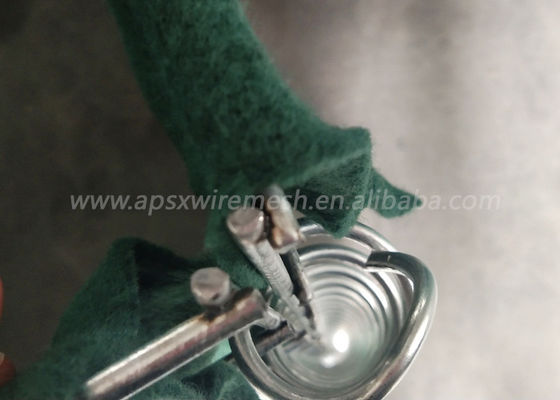

It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.



Model Height Width Length Internal Cells
SX-1(Mil 1) 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2(Mil 2) 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3(Mil 3) 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4(Mil 4) 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5(Mil 5) 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6(Mil 6) 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7(Mil 7) 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8(Mil 8) 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9(Mil 9) 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10(Mil 10) 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11(Mil 11) 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12(Mil 12) 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19(Mil 19) 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells



Detail Specification



1. Wire Diameter: 4-5mm

2. Mesh Size: 3" (75x75mm,50x50mm) 80*80mm

3. Panel Size: 13 type size for any security protection,suddenly burst attacks

4. Geotextile: In heavy duty non-woven polypropylene;

5. Color: Grey and Military Green,Sand color etc.

6. Finish: Hot dipped galvanized, Galfan wire.

7. Packing: Packed in pallet



Application



1. Military Fortifications
Most Army Used Barrier build up a Military Fortifications, Because it can stack on each other, You can change the width and height by your demands. More easy and flexible.
2. Shooting Range
Nowadays, A lot of people use Barrier to build a shooting range, because its High Strength Defense, more safety.
3. Flood Control
We Mentioned above, The Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Barrier as Flood Protection Wall.Even around the hotel they stand up the Barrier for Protection Wall.

Mesh 3" X 3" Galvanized Steel Sand Soil Mil 2 Military Barrier 0
