Anti Rust Wire Mesh Galvanized Military Barrier With Sand / Green Geotextile

Anti Rust Wire Mesh Galvanized Military Barrier With Sand / Green Geotextile
Anti Rust Wire Mesh Galvanized Military Barrier With Sand / Green Geotextile Anti Rust Wire Mesh Galvanized Military Barrier With Sand / Green Geotextile Anti Rust Wire Mesh Galvanized Military Barrier With Sand / Green Geotextile

Large Image :  Anti Rust Wire Mesh Galvanized Military Barrier With Sand / Green Geotextile

Product Details:
Place of Origin: Hebei,China
Brand Name: SHUXIN
Certification: SGS COC ISO PVOC
Model Number: SX-Military Barrier
Payment & Shipping Terms:
Minimum Order Quantity: 130 sets
Price: Negotiated
Packaging Details: Pallet
Delivery Time: 15 Working Days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 100 sets per week

Anti Rust Wire Mesh Galvanized Military Barrier With Sand / Green Geotextile

Description
Mesh Size: 3" X 3",(7.62*7.62cm) Accessories: Spring, Joint Pin, Geotextile
Geotextile: 300 G/m2,waterproof, Good Penetration Application: Military Barriers,River Pretection
Feature: Easy To Assemble,Good Permeability. Raw Materials: Hot Dipped Galvanized
High Light:

anti rust wire mesh military barrier

,

green geotextile military barrier

,

sand defence barriers

Galvanized Anti-rust Wire Mesh Military Barrier,Army Defensive Barrier With Sand/Green Geotextile​





Military Barrier Description:

  • 1.Introduction

Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for military defense and flood control.

  • 2. Working principle:

It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.

  • 3. Quality assurance:

Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012



Hot galvanized wire

Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)

Spring wire for connecting mesh plates

Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0 mm

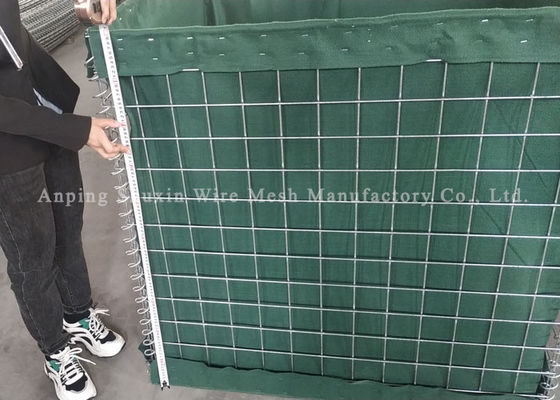

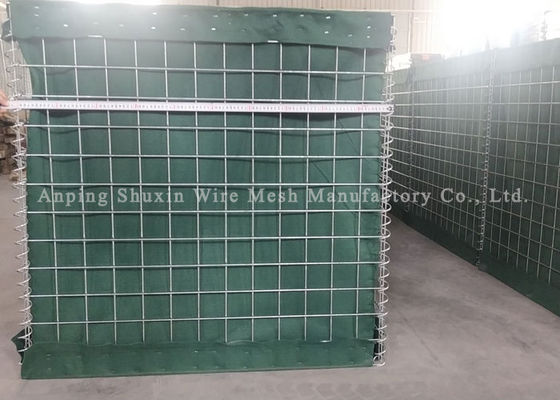

Welded mesh plate

We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.

Geotextile

It has various colors: sand, brown, gray and military green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.





Details of Military Barrier:



Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells



Applications of the Military Barrier:

Peripheral security and defense wall

Equipment protection

Shelter for personnel and materials

Observation point

Defensive firing position sentry

Explosive and contraband search area

Highway inspection station

Border crossing checkpoint

Protect existing structures

Flood control retaining wall beach erosion

Coastal Area Protection Project

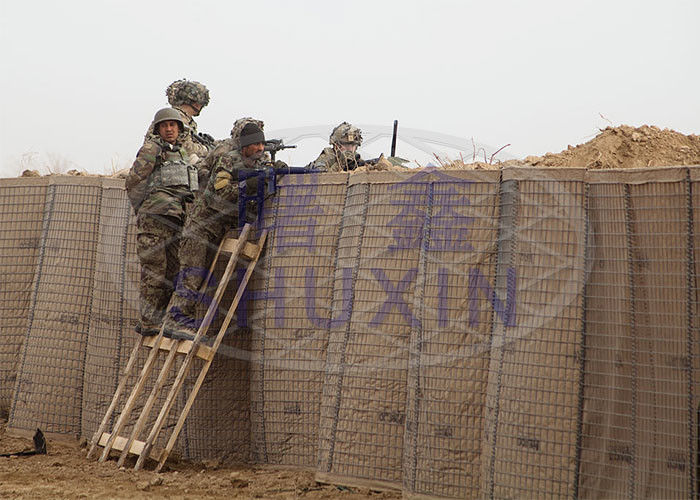

1. Military fortifications Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.

2. Shooting range Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.

3. Flood control Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.



Advantages of Military Barrier:

  • Secure & reliable

Once filled with soil, sand or gravel, forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemy fire. For example:

Two feet thick barriers can be used to stop rifle bullets and shell fragments.

Four feet thick barriers can prevent most car bombs.

Five feet thick barriers is ideal for preventing penetration and explosion fragments from rocket propelled grenade.

  • Convenient usage

HESCO bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.

  • Labor saving design

Can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.

  • Quick & easy assembly

Provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our KNSCO do ten times the work.
