Government Tender Military Sand Wall Gbaion Box Customized Defensive Barrier hesco barrier wire mesh barrier
Introduction :
Whether used as a preventative barrier or to define boundaries, Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
- Perimeter security and defence walls
- Equipment revetments
- Explosive and contraband search areas
- Ammunition compounds
- Personnel and material bunkers
- Observation points
- Defensive firing positions
- Highway checkpoints
|
- Border crossing checkpoints
- Protection existing structures
- High way traffic management
- Flood control
- Water courses
- Emergency flood deployment
- Erosion control
- Retaining walls
-
|
The

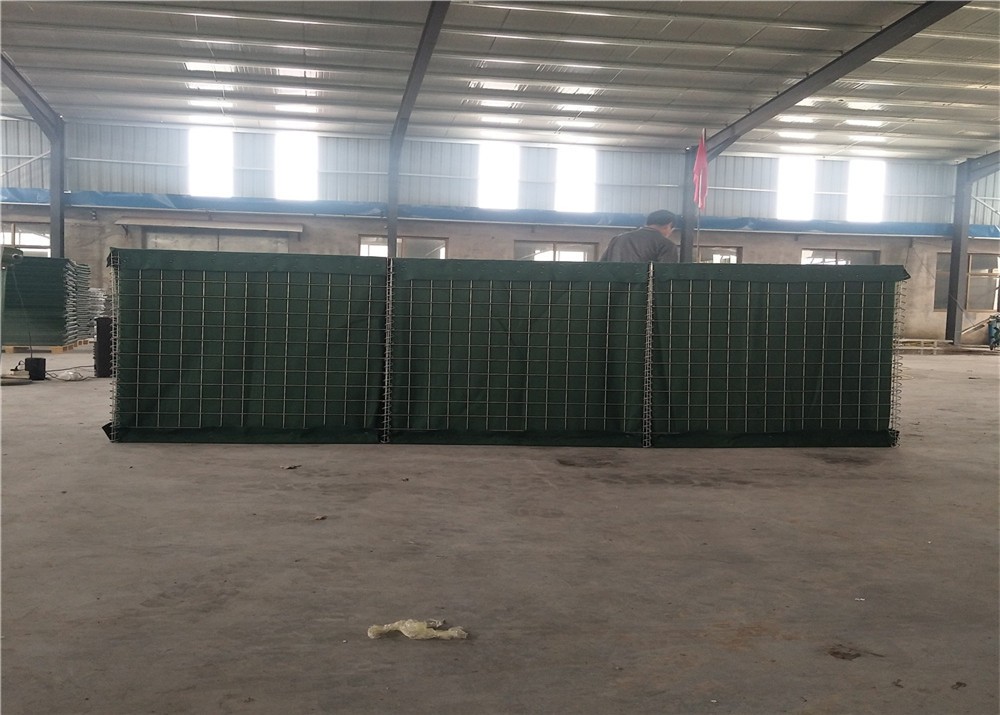

Defensive Barrier hesco barrier wire mesh barrier unit is a multi-cellular wall system manufactured from welded Zinc-Aluminum coated /hot dipped galvanized steel wire mesh and joined with vertical,helical coil joints.
The units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile. can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.
Quick View of Defensive Barrier hesco barrier wire mesh barrier :
Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Size : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
The Military Sand Wall come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x 3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').
The Common Specification of Defensive Barrier hesco barrier wire mesh barrier
as followed:
Defensive Barrier hesco barrier wire mesh barrier Specification
| Model |
Height |
Width |
Length |
Internal Cells |
| SX-1 |
54”(1.37m) |
42”(1.06m) |
32’9”(10m) |
5+4=9 cells |
| SX-2 |
24”(0.61m) |
24”(0.61m) |
4’(1.22m) |
2 cells |
| SX-3 |
39”(1.0m) |
39”(1.0m) |
32’9”(10m) |
5+5=10 cells |
| SX-4 |
39”(1.0m) |
60”(1.52m) |
32’9”(10m) |
5+5=10 cells |
| SX-5 |
24”(0.61m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-6 |
66”(1.68m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-7 |
87”(2.21m) |
84”(2.13m) |
91’(27.74m) |
5+4+4=13 cells |
| SX-8 |
54”(1.37m) |
48”(1.22m) |
32’9”(10m) |
5+4=9 cells |
| SX-9 |
39”(1.0m) |
30”(0.76m) |
30’(9.14m) |
6+6=12 cells |
| SX-10 |
87”(2.21m) |
60”(1.52m) |
100’(30.5m) |
5+5+5+5=20 cells |
| SX-11 |
48”(1.22m) |
12”(0.30m) |
4’(1.22m) |
2 cells |
| SX-12 |
84”(2.13m) |
42”(1.06m) |
108’(33m) |
5+5+5+5+5+5=30 cells |
| SX-19 |
108”(2.74m) |
42”(1.06m) |
10’5”(3.18m) |
6 cells |
Defensive Barrier hesco barrier wire mesh barrier Features :
Defensive Barrier hesco barrier wire mesh barrier can be built to any required length and to any height. The unique joining system allows the user great flexibility in configurations and requirements. One of the key advantages of the system is that any readily available infill material can be utilised. Sand, rubble, rocks, soil, concrete and even snow have been successfully used.
Rapid construction is another key feature of the product. A typical wall units equivalent to approximately 1500 sandbags, can be erected and filled by two men and a single common loader in less than twenty minutes. An equivalent wall constructed of sandbags would take 10 men 7 hours to build.
Defensive Barrier hesco barrier wire mesh barrier Application:
- Perimeter security , Defensive barriers
- Equipment revetments
- Personnel bunkers, Observation points
- Guard posts, Protecting existing structures
- Contraband search areas, Highway checkpoints, Border crossing checkpoints
- Traffic management, Hostile vehicle mitigation
