Product Details:
|
| Mesh Size: | 3"x 3" Or 8cm X 8cm | Internal Cells: | 5+4=9 Cells |
|---|---|---|---|
| Geotextile Fabric: | 300g/㎡ | Geotextile Color: | White, Beige Or Military Green |
| Life Duration: | ≥ 25 Years | ||
| High Light: | low carbon iron wire defensive barrier,explosion proof defensive barrier,military protective wall hesco bag |
||

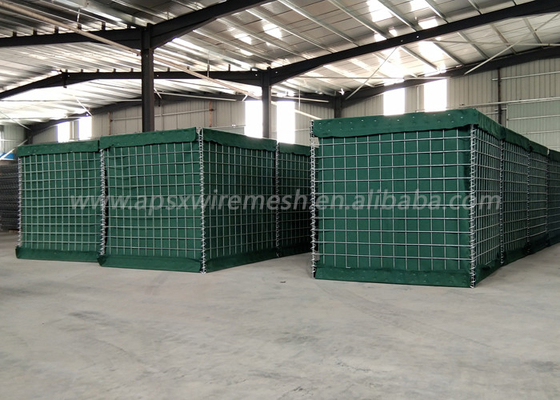

Low-Carbon Iron Wire Military Explosion Proof Defensive Barrier Protective Wall
The Military Gabion Barrier Bastion Sand Wall come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Whether used as a protective barrier or to define boundaries, Military Gabion Barrier Bastion Sand Wall have been employed to safeguard equipment, facilities, vehicles, personnel and critical assets in a variety of operations such as military, peacekeeping, humanitarian and civilian.
As its name indicated, at the beginning, HESCO Barriers mainly used on Military, for Army Protection,military fortifications, Anti-Explosion Wall and etc.It is made of Collapsible Welded Gabion Mesh and UV Protection Heavy Geotextile lined, The common Surface Treatment is Hot Dipped Galvanized before welding, HDP Galvanized after welding, and Galfan Coated. Both of them have a long using life. It has seen considerable use in Iraq, Afghanistan and Africa.
Sand Filled Barriers Detail Specification

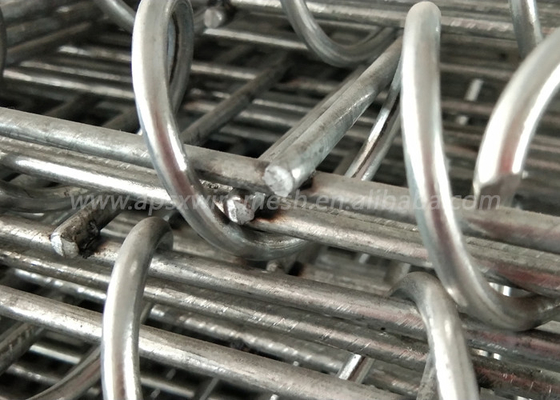

1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Sand Filled Barriers Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
Sand Filled Barriers Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
Sand Filled Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Explosion-proof cage Explosion-proof wall product features: Explosion-proof cage system design is easy to transport folding packaging, strong mobility, easy installation, outstanding effect,
