Product Details:
|
| Name: | Gabion Basket | Wire Diameter: | 2.7, 3.0, 3.4mm |
|---|---|---|---|
| Hole Size: | 6x8cm, 8*10cm ,10x12cm | Surface Treatment: | PVC Coated, Hot Dipped Galvanized |
| Color: | Silver,gray,green | Application: | Construction Wire Mesh,Cages,Protecting Mesh |
| Certification: | CE,ISO ,SGS | Gabion Size: | 2*1*1m,1*1*1m 3*1*1m |
| High Light: | 10x12cm pvc coated gabion baskets,retaining heavy pvc coated gabion baskets,10x12cm wire mesh gabion baskets |
||
Heavy Duty Gabion Basket PVC Coated Hexagonal Gabion Wire Mesh For Retaining
Gabion Basket Product Description

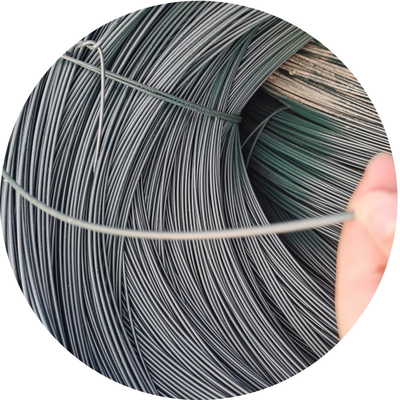

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

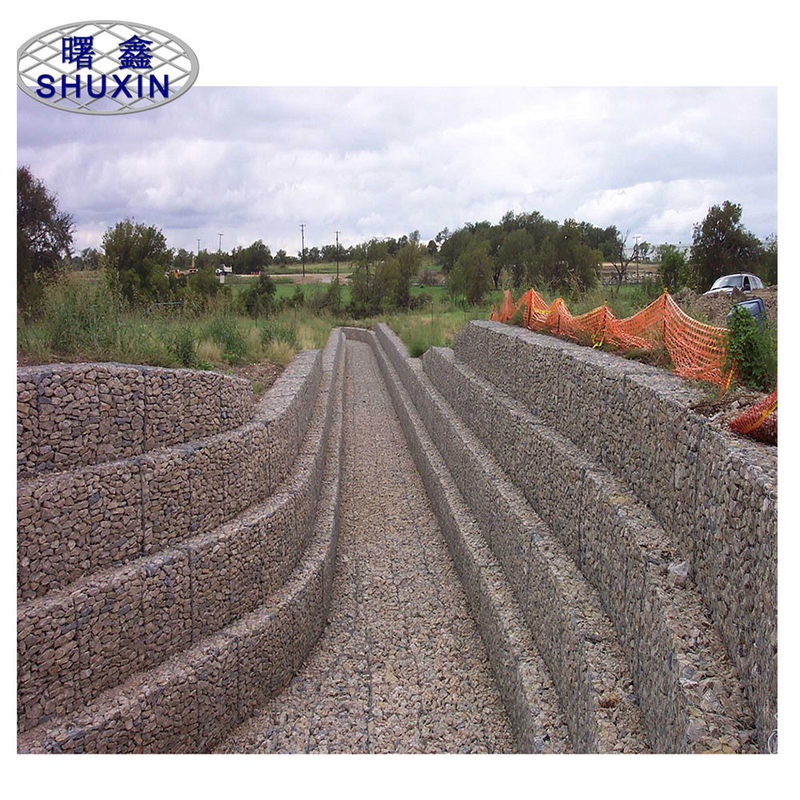

After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.
Specification
|
Gabion box (mesh size): 80*100mm 100*120mm |
Mesh Wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire diameter | 3.4mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire diameter. | 2.2mm | zinc coating:60g,≥220g/m2 | |
|
Gabion mattress (mesh size): 60*80mm |
Mesh wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire diameter. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 | |
|
special sizes Gabion are available
|
Mesh wire diameter | 2.0~4.0mm |
superior quality,competitive price and considerate service |
| Edge wire diameter | 2.7~4.0mm | ||
| Tie wire diameter | 2.0~2.2mm |
| Material | galvanized wire, Zn-Al(Galfan) coated wire/ PVC coated wire |
| Application |
can be widely used in flood controlling,retaining wall,river bank protection, slope protection . |
| Hole shape | Hexagonal |
Advantages
(1) Economy. Just put the stone into the cage and seal it.
(2) The construction is simple and does not need special technology.
(3) Strong ability to resist natural damage, corrosion and adverse weather effects.
(4) Can withstand large-scale deformation without collapsing.
(5) Silt between the cage stones is beneficial to plant production and can be fused with the surrounding natural environment.
(6) It has good permeability and can prevent damage caused by hydrostatic force. It is conducive to the stability of mountain slopes and beaches.
(7) Save transportation costs. It can be folded up for transportation and assembled on the construction site.
(8) Good flexibility: no structural joints, and the overall structure has ductility.
(9) Corrosion resistance: Galvanized materials are not afraid of seawater.
Packing and Loading

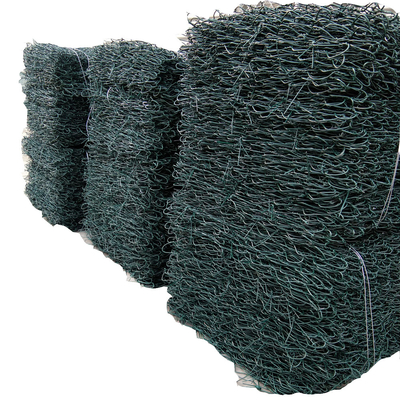

After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
1*20 GP :1000 PCS (2*1*1M)
1*40 HQ:1600 PCS (2*1*1M)
