Product Details:
|
Material: | Q195 Low Carbon Steel Wire | Mesh Size: | 3x3 Inches |
---|---|---|---|
Type: | Weld Wire Mesh Fence | Geotextile: | 300 G/m2 |
Color: | Green, Earthy | Application: | Military Barriers,River Pretection |
Life Duration: | ≥ 20 Years | Wire Diameter: | 4-5 Mm |
High Light: | green and earthy hesco bastion wall,welded gabion box hesco bastion wall,welded gabion box defensive barriers |
Green and Earthy Hesco Barriers Hesco Bastion Welded Gabion Box for Sale
A wall that has the ability to resist explosion shock wave and can limit the destructive effect of explosion to a certain range. Compared with reinforced concrete explosion-proof wall, it has the advantages of light weight, easy loading and unloading, recyclability and reuse.
Spic. of Hot Sale Welding Heavy Galvanized Military Defensive HESCO Barriers:
Height | Width | Length | Internal Cells |
54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
Specification:
Wire Diameter: 4mm, 5mm
Mesh Size: 50mmx50mm, 76.2mmx76.2mm,100mmx100mm
Panel Size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, It Also Can Be Customized According To Customers Requirement
Mesh gabion is also known as gabion barrier, gabion concertainer. It is made of steel welded mesh, spring coil, non-woven geotextile with other fittings to make a simple and strong multi-cellular system.

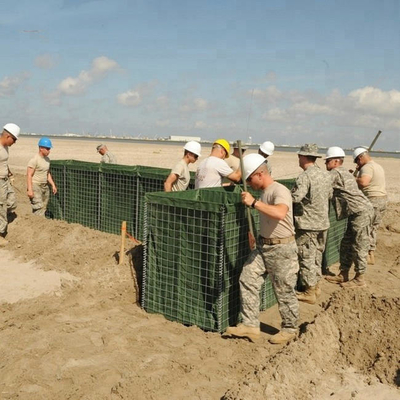

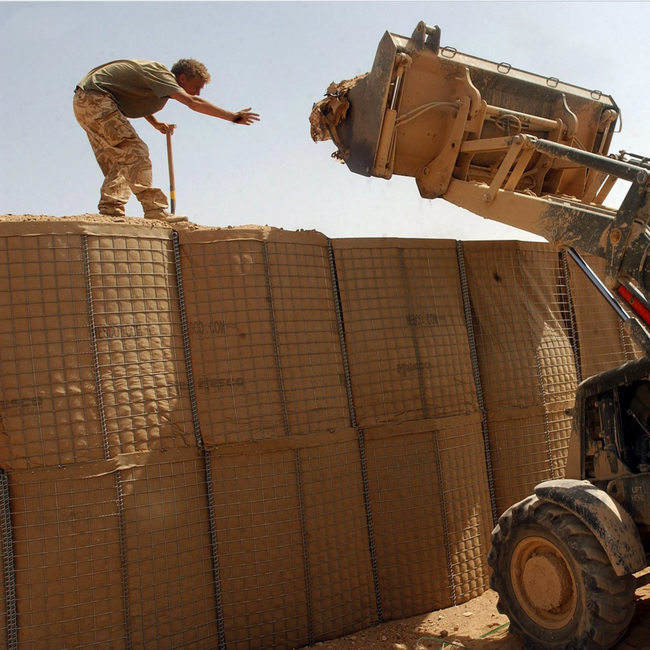

The finish of barrier is in pre galvanized,galfan coated,hot dipped galvanized to anti corrosion for long lifespan. The barrier is easy to move and install, so it is widely used in military defensive blast wall, flood control, erosion control, security fence barrier and garden decoration.
Packing:
∗Wrapped with shrink film then on pallet
∗Bulk load
∗Customized packing is available.
