Product Details:
|
| Place Of Origin: | Hebei, China | Brand Name: | SHUXIN |
|---|---|---|---|
| Delivery Time: | 8-14 Days | Material: | Low Carbon Steel Wire |
| Model: | From SX-1 To SX-19 | Surface: | Hot Dipped Galvanized, Galfan Coated |
| Geotextile: | 300 G/㎡ To 350 G/㎡ | Color: | Sand Color, Military Green |
| Spiral Wire: | 4.0mm To 5.0mm | Mesh Hole: | 3 Inch |
| Type: | Welded Gabion, HESCO Barriers | Application: | Fence Mesh,Gabions, Defense, Hesco, Hesco Barriers |
| Hole Shape: | Square | Processing Service: | Welding, Cutting |
| Hesco Wire Diameter: | 3.0mm~5.0mm | Hesco Packing: | Waterproof Paper |
| Hesco Usage: | Protection | Hesco Feature: | Easily Assembled |
| High Light: | shooting club defensive barriers,stackable defensive barriers,shooting range construction hesco defensive barriers |
||

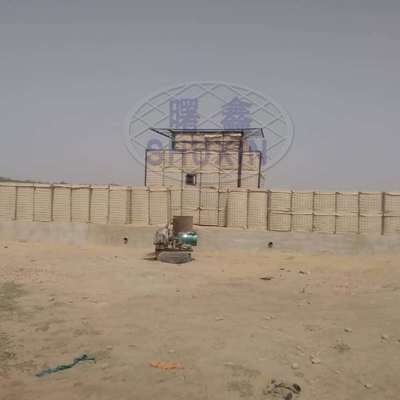

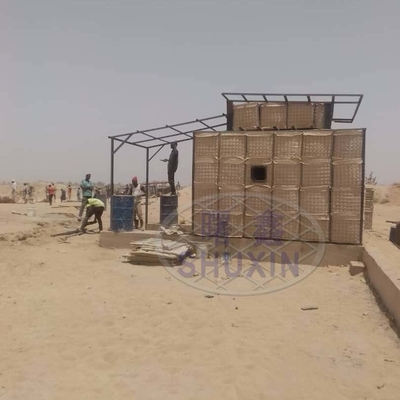

Shooting Club Durable Stackable Galvanized Welded Mesh Gabion Defensive Barrier as Shooting Range Construction
Shooting Range Construction mainly take by Weapan shop or some dedicated training venue,and wedled defensive barrier is the right and most suitable, safe products to build the shooting range fast.
We cooperated with SIG SAUER company in USA for shooting range camp construction, and with good reputation. Our welded defensive barrier with a best price with high quality, also coopeated with DOD from many countries.
Technical Data as followed:
| Delivery Time | around 15 days |
| Hesco Material | Galvanized Wire, Low Carbon Steel Wire |
| Wire Diameter | 4.0 mm to 5.0mm |
| Mesh Hole | 3 inch, or customized |
| Model | From SX-1 to SX-19 (Please check followed Model size form) |
| Surface | Hot Dipped Galvanized, Galfan Coated |
| Geotextile | Heavy duty non-woven polypropylene, usually 300 g/sqm, also can customized |
| Color | Sand color, military green |
| Spiral Wire | fit for HESCO Mesh Panel, with 4.0mm diameter |
| Pakcage | Wooden Pallet, with shrink film |
| Sample | can supply sample |
| Stock | have some model in stock, can check separately |
| Payment Term | can send deposit in advance, Make up the balance before delivery |
| Factory Inspection | Support online (Video Meeting) inspection |
The Technical Specifications from SX 1 to SX 19
| Welded Military Sand Filled Bastion Wall | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Welded Defensive Barriers:
1. Flood Control
The Military defensive Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Defensive Barrier as Flood Protection.
2. Protection Wall
More and more people used Welded Defensive barrier as a wall for homemade protection, light weight and easy operation to build a wall fast.
The Advantages of Welded Defensive Barrier:
1. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
