Product Details:
|
| Product Name: | High Strength Mil10 With Geotextile Defensive Barriers Use For Military，Flood Control | Material: | Galvanized Iron Wire, Low-Carbon Iron Wire |
|---|---|---|---|
| Feature: | Easily Assembled | Cell: | 5 Cells, 10 Cells |
| Geotextile Color: | Dark Green,Brown, Sand Color | Surface Treatment: | Hot Dipped Galvanized |
| Wire Gauge: | 4.0mm,5.0mm | Mesh Size: | 3x3' (7.62*7.62 Cm) |
| Geotextile: | 300 G/㎡ To 350 G/㎡ | Type: | Welded Gabion, HESCO Barriers |
| High Light: | flood control defensive barriers,high strength defensive barriers,hesco defensive barriers mil10 |
||

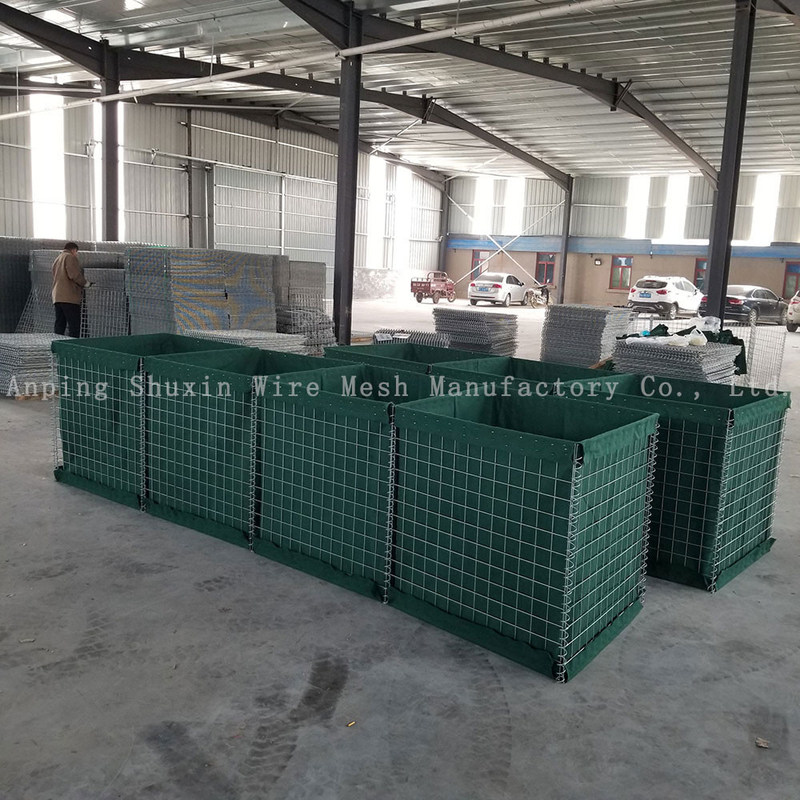

High Strength Mil10 With Geotextile Defensive Barriers Use For Military,Flood Control
Defensive barriers are walls that are resistant to blast shock waves, limiting the destructive effects of explosions to a certain range. Compared with reinforced concrete explosion-proof wall, it has the advantages of light weight, easy installation, easy disassembly and recycling.
| Wire Diameter: | 5.0mm (Standard), 4.0mm |
| Surface treatment: | Hot dipped galvanized |
| Mesh Hole: | 76.2*76.2mm (Standard), 80*80mm |
| Hole shape: | Square |
| Processing Service: | Welding, Cutting |
| Diameter of Spring: | 4.0mm |
| Diameter of Joint Pin: | 4.0mm |
| Cells per Set: | 1 cell, 2 cells, 3 cells, 4 cells, 5 cells |
| Color of Geotextile: | Military Green, Beige, Brown, Sand Color |
| Weight of Geotextile: | 300GSM (Standard) |
|
Mesh Opening: |
50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect |
|
Panel Size: |
0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested |
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive barriers can be widely used in:
Perimeter security and defensive walls, equipment revetments, search areas for explosives and contraband, ammunition compounds, personnel and material bunkers, observation points, defensive firing positions, road checkpoints, border checkpoints. Protection of existing structures, freeway traffic management, flood protection, watercourses, emergency flood protection deployment, erosion control retaining walls.
Defensive barriers features:
Easy to handle and install
High strength and impact resistance
Long life, normal use
Can be filled with sand, cement, stone, dirt.
