Product Details:
|
| Raw Material: | Low Carbon Steel Wire | Geotextile: | 300 G/㎡ Standard |
|---|---|---|---|
| Mesh Diameter: | 4.0mm Diameter Wire | Apeture: | 50x50mm |
| T/S: | 500 - 800 MPA | Accessories: | Staple, Joint Pin |
| High Light: | geotextile military barrier,fortification system military barrier,50x50mm military sand barriers |
||

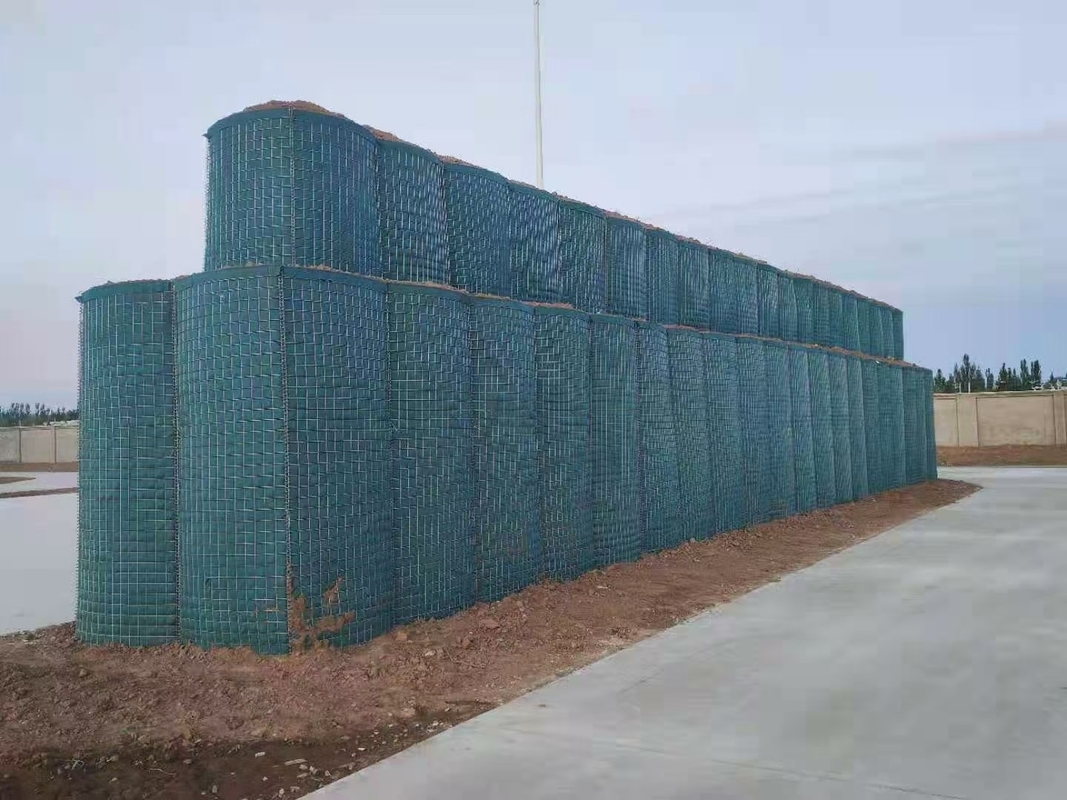

Military Barrier Fortification System 50x50mm Geotextile Defence Barrier Bastion Wall
Military Barrier consists of a foldable wire mesh container and heavy fabric liner, and serves as a temporary semi-permanent embankment or obstructs an explosion or small arms. A casual life and a labor-saving war, it is used at almost every U.S. military base and at NATO bases in Afghanistan in Iraq.
| Raw Material | Geotextile | Mesh Diameter | Apeture | T/S | Accessories |
| Low Carbon Steel Wire | 300 g/㎡ Standard | 4.0mm Diameter Wire | 50x50mm | 500 - 800 MPA | Staple, Joint Pin |
The Standard Technical Military BarrierSpecifications from SX 1 to SX 19
| Welded Military Sand Filled Barrier for Retaining Wall | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Military Barrier
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Welded Protection Barriers provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Sand Filled Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Welded Barrier Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Protection Defensive Barrier is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
