Product Details:
|
| Components: | Gabion Mesh,Spring, Joint Pin, Geotextile Fabric | Color: | Green Hesco Bastion Defensive Barriers Military Barrier Galvanized Military Sand Wall Defensive Barrier For Sale |
|---|---|---|---|
| Mesh Hole: | 3" X 3" | Wire: | 5.0mm |
| Life Duration: | ≥ 25 Years | Warranty: | ≥ 3 Years |
| Type: | Welded Wire Mesh | Style: | Mil 1 -- Mil 10 |
| High Light: | welded military barrier,3" x 3" mesh hole military barrier,5.0mm hesco army |
||

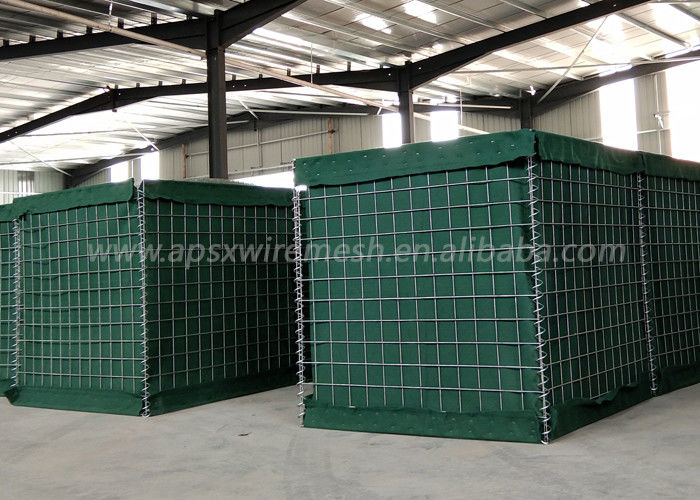

Green Hesco Bastion Defensive Barriers Military Barrier Galvanized Military Sand Wall Defensive Barrier For Sale
Military Barrier is a multi-cellular barrier system lined with heavy-duty, geotextile fabric and manufactured from welded Zinc-Aluminium coated steel mesh.
Geotextile: in non-woven geotextile, color can be white, beige-sand color.
Color: White, Sand color, Military Green
| Components | Color | mesh hole | wire | life duration | warranty | Type | Style |
| gabion mesh,Spring, Joint Pin, Geotextile fabric | Green Hesco Bastion Defensive Barriers Military Barrier Galvanized Military Sand Wall Defensive Barrier For Sale | 3" x 3" | 5.0mm | ≥ 25 years | ≥ 3 years | Welded wire mesh | mil 1 -- mil 10 |
The Common Specification of Military barriers as followed:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
Military barriers Sand Wall Application:
The versatility of Collapsible Wire Mesh Frames 76.2×76.2mm Military Barrier With Geotextile Fabric enables it to be used across a variety of applications such as coastal erosion, flood protection, river and bank stabilisation, retaining walls, land reinforcement and soil conservation.
1. Flood protection
2. Military Defence
3. Hotel Pretection
4.River and bank stabilisation
5.Retaining walls
6.land reinforcement and soil conservation
