Product Details:
|
| Material: | Q195, Low Carbon Steel Wire | Mesh Wire: | 5.0mm |
|---|---|---|---|
| Spring Wire: | 4.0mm | Geotextile: | 300 GSM Heavy Geotextile |
| Surface Treatment: | Galfan Coated | Life Duration: | Around 25 Years |
| Application:: | Miltary Protection , Military Exercises Base, Flood Control Etc. | Feature:: | Easy Install And Remove |
| High Light: | sand filled military hesco barriers,mil 1 military hesco barriers,hesco military with geotextile |
||

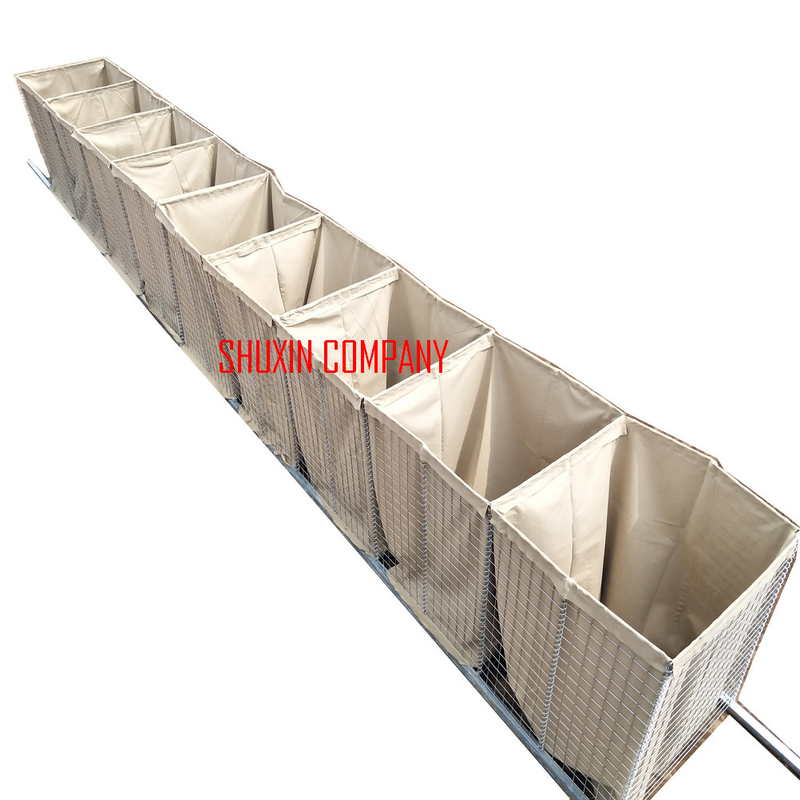

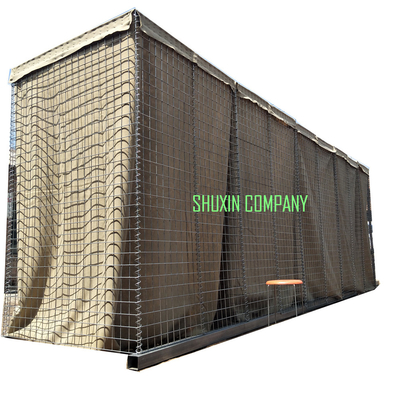

Defensive bastion military sand filled hesco barrier blast gabion walls with geotextile
Military Defensive Barrier has been developed to provide a flexible solution for a wide range of protective and structural requirements. They are available in a variety of different sizes and delivery systems.
All MIL products are delivered palletized with joining pins and can be filled using minimal manpower and commonly available equipment
Explosion-proof walls are also known as modern metal meshes for flood protection and military fortifications. Composed of a collapsible wire mesh container,and heavy geotextile, it is used as a temporary or semi-permanent barrier or bastion to block an explosion or small weapon attack. Nowadays, people called "HESCO Barrier'. Anping Shuxin Wire Mesh involved in this area since 2007, have own professional production team to meet customer's kinds of requirements.
The concertainer MIL units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile.Hesco barrier /hesco bastion can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.
Gram Weight of geotextile:200g/m2 or 300g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded
Packing:Wrapped with shrink film then packed in wood pallet or iron pallet
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Application :
1. landscaping, as retaining walls, landscape urban landscape and parks.
2. or high salt pollution in the environment, Gore can be used where welded wire mesh technology.
3. within the welded wire mesh filled with stone or natural cobblestone highway together protection, slope, roadway, bridge and so on.
4. welded wire mesh is widely used in earth or soil reinforcement such as desertification, slope protection, river, coastal protection, reservoirs, canals and pipelines renovation, Rock failure protection, bridge protection, protective net.
