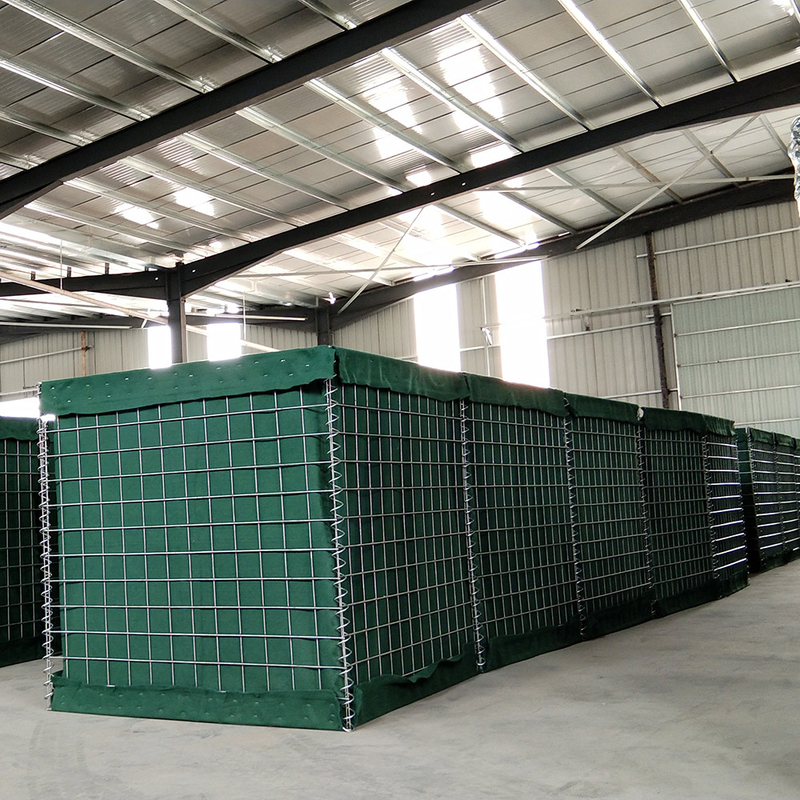

Heavy Galvanized Wire Hesco Military Green Sand Wall Defence Barriers 5.0mm

Basic Properties
Place of Origin: CN
Brand Name: SHUXIN
Certification: COC ISO PVOC CE
Model Number: SX-mil 10
Trading Properties
Minimum Order Quantity: 100 Sets
Price: Negotiated
Standard Packaging: Pallet
Delivery Time: 20 Working Days
Payment Terms: L/C, , T/T, Western Union, , Paypal
Supply Ability: 100 sets per 1 day
Product Summary
Heavy Galvanized Wire Military Green Sand Wall Hesco Defence Barriers For Burkina Faso Defensive Barrier Wall that has the ability to resist explosion shock waves and can limit the destructive effects of explosions within a certain range. Compared with the reinforced concrete explosion-proof wall, ...

Product Details

Highlight:

heavy galvanized wire hesco military

,

green sand wall hesco military

,

5.0mm military barrier

Material: HDP Galvanized Wire
Wire Diamenter: 5.0mm/4.0mm
Hole Size: 3"*3" 76x76mm
Sureface Treatment: Hot Dipped Galvanized
Application: Army Military And River Pretection
Geotextile: 300gsm Sand Color

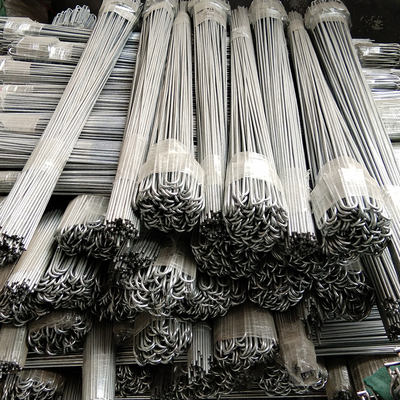

Spring: 4.0mm
Color: Green, Beige, White
Product Description

Heavy Galvanized Wire Military Green Sand Wall Hesco Defence Barriers For Burkina Faso





Defensive Barrier Wall that has the ability to resist explosion shock waves and can limit the destructive effects of explosions within a certain range.

Compared with the reinforced concrete explosion-proof wall, it has the advantages of light weight, easy loading and unloading, recyclable and reusable.

Defensive Barrier Wall can be widely used in surrounding security and defensive walls, equipment revetments, explosives and contraband search areas, ammunition compounds, personnel and material bunkers, observation points, defensive shooting positions, highway checkpoints, border checkpoints



Product Name Hesco Barrier Bastion Welded Gabion Box Explosion-Proof Wall
Material Hot-dipped Galvanized Steel Wire,Galfan Wire(Zinc-Aluminum Steel Wire)
Wire Diameter 4mm,5mm
Spring Diameter 4mm
Mesh Hole 3’’*3’’ or 75mm*75mm
Panel Size 0.61m*0.61m,1m*1m,1.06m*1.37m,2.21m*2.13m,etc.
Geotextile Usually 300g/m,other requirement can be customized.
Finish

Hot-dipped Galvanized,Galfan Coated.



Heavy Galvanized Wire Hesco Military Green Sand Wall Defence Barriers 5.0mm



Application:

The Detailed Explanation of Application for Barrier:
1. Military Fortifications
Most Army Used Barrier build up a Military Fortifications, Because it can stack on each other, You can change the width and height by your demands. More easy and flexible.
2. Shooting Range
Nowadays, A lot of people use Barrier to build a shooting range, because its High Strength Defense, more safety.
3. Flood Control
We Mentioned above, The Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Barrier as Flood Protection Wall.Even around the hotel they stand up the Barrier for Protection Wall.


The Size Sheet for Military HESCO Barrier:

MODEL Height Width Length NO. of Cells
SX-1 4'6"(1.37M) 3'6"(1.06M) 32'(10M) 9 cells(1*4, 1*5)
SX-2 7'(2.1M) 3'6"(1.06M) 108'(33M) 30 cells(6*5)
SX-3 2'(0.61M) 2'(0.61M) 4'(1.21M) 2 cells
SX-4 3'3"(1.0M) 3'3"(1.0M) 32'(10M) 10 cells(2*5)
SX-5 2'(0.61M) 2'(0.61M) 10'(3.05M) 5 cells
SX-6 5'6"(1.68M) 2'(0.61M) 10'(3.05M) 5 cells
SX-7 7'3"(2.21M) 7'(2.13M) 90'(27.74M) 13 cells(2*4,1*5)
SX-8 4'6"(1.37M) 4'(1.22M) 32'(10M) 9 cells(1*4, 1*5)
SX-9 3'3"(1.0M) 2'6"(0.76M) 30'(9.14M) 12 cells(2*6)
SX-10 7'(2.12M) 5'(1.52M) 95'(30.5M) 20 cells(4*5)
SX-11 3'3"(1.0M 3'3"(1.0M) 3'3"(1.0M) 1 Cell
SX-12 7'3"(2.21M) 7'3"(2.21M) 7'3"(2.21M) 1 Cell



The Advantages for Barrier:
1. Collapsible

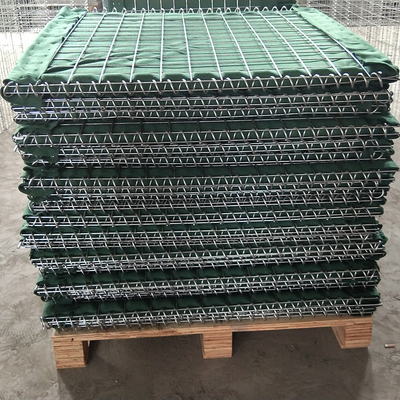

It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.



SHUXIN company had been produce welded wire mesh products hesco barriers more than 15 years.
our products been supplied many countries's department of defense. and army force.
such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
