Product Details:
|
| Raw Material: | Low Carbon Steel Wire Q195 | Geotextile: | 300 G/㎡ Standard |
|---|---|---|---|
| Mesh Diameter: | 4.0mm - 5.0mm | Apeture: | 3" (76.2mm×76.2mm) |
| T/S: | 500 - 800 MPA | Accessories: | Staple, Joint Pin |
| Height: | 2.13 M | Width: | 1.06 M |
| Legnth: | Around 33m | Cells: | Around 30 Cells /set |
| Package: | Wooden Pallet | Production Time: | 3 Days/ Container |
| High Light: | hot dipped galvanized gabion hesco,heavy duty gabion hesco,stackable gabion hesco |
||

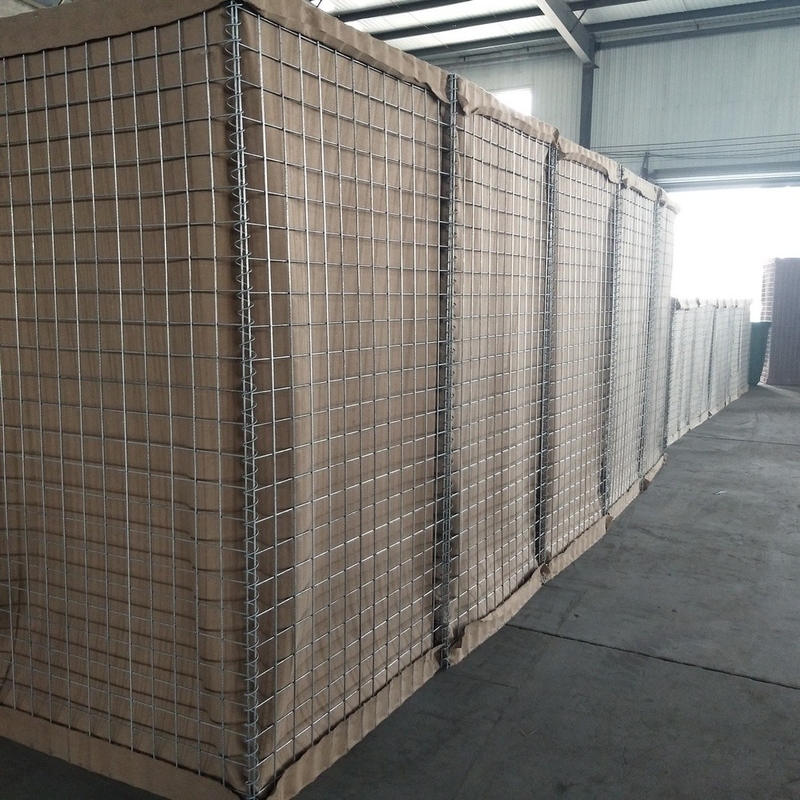

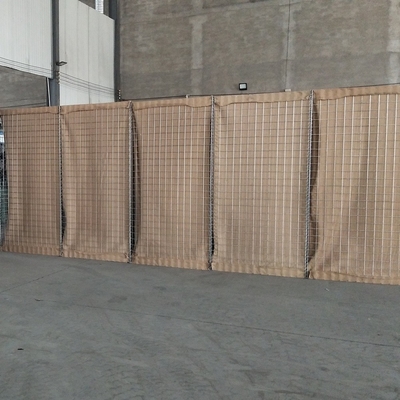

Hot Dipped Galvanized SX-12 Heavy Duty Stackable Miltary Defensive Barrier / Welded Hesco Barrier
SX-12 military defensive barrier is 2.13m high, 1.06m wide, around 33m long, is a common model to use. it totally have 30 cells, 5 cells connected together, 6 PCS / 5 cells.
The material includes mesh panel, geotextile, sprial wire and joint hook.
| Model | SX - 12 |
| Height | 2.13m |
| Wide | 1.06m |
| Length |
33.0 m |
| No. of cells | 5 cells * 6 PCS = 30 cells |
| Geotextile | 250 GSM -300 GSM |
| Sprial Wire | 22 PCS |
| Joint Hook | 12 PCS |
| Weight | around 813 KGS |
| Package | Wooden Pallet |
The Standard Technical Specifications from MIL 1 to MIL 19
| Welded Gabion Box for HESCO Barriers | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Welded Gabion Box for Defensive Bastion
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, SHUXIN products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Gabion Box can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Welded Gabon BOx can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Flood Control Barrier is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded HESCO Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

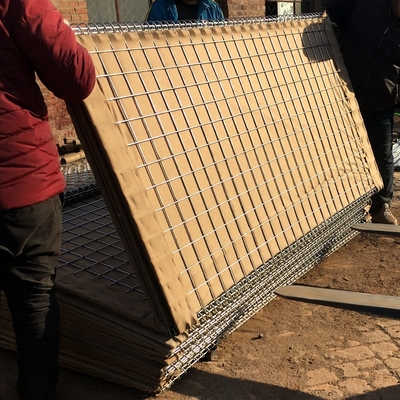

2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
