Product Details:
|
| Stock: | Some Types Have Stock, Welcome To Inquiry | Raw Material: | Hot Dippled Galvanized Wire |
|---|---|---|---|
| Geotextile: | 300 G/㎡ Standard | Mesh Diameter: | 5.0mm Diameter |
| Apeture: | 3" (76.2mm×76.2mm) | Color: | Military Green, Sand Color |
| Accessories: | Staple, Joint Pin | Brand: | KESCO, Not HESCO |
| Sample: | Free Sample | ||
| High Light: | MIL 10 Hesco Barrier,Welded Gabion Hesco Barrier,Military Shooting Hesco Barrier |
||

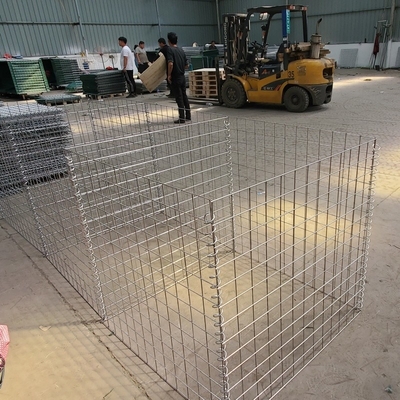

Military Shooting Training Range by Glavanized MIL 10 Welded Gabion Hesco Barrier
People usually use MIL 10 + MIL 3 to build the shooting range trainning site.
MIL 10 Size: 2.21m high, 1.52m wide;
MIL 3 Size: 1.00 m high, 1.00m wide.
Mil 3 can be staked on MIL 10 to achieve a higher height, we have client from USA, SA,BK, Kenya, Ghana and so on.
The Standard Technical Specifications from SX1 to SX19
| Welded Military Used Shooting Range Barrier | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |

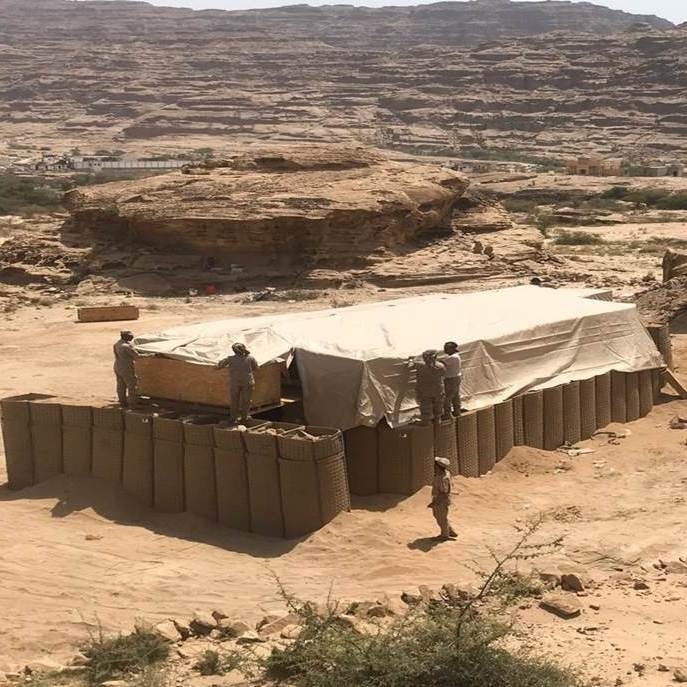

The Application for Welded Gabion Barrier
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Military Gabion Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Wall is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible

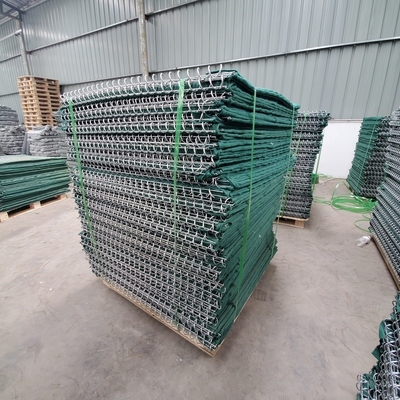

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
