Heavy Galvanized Military 5mm Wire Mesh Defensive Barriers CE ISO9001 Certificate

Basic Properties
Place of Origin: China,Hebei
Brand Name: SHUXIN
Certification: CE,SGS,ISO9001
Model Number: SX-Mil 10
Trading Properties
Minimum Order Quantity: 50 sets
Price: Negotiated
Standard Packaging: Wrapped with shrink film or packed in pallet
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 1000 sets per month
Product Summary
Heavy Galvanized Military Weld 5mm Wire Mesh Defensive Barriers With CE Certificate 1.Introduction: Hot galvanized wire Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire ...

Product Details

Highlight:

Defensive Barriers ISO9001

,

5mm Wire Mesh Defensive Barriers

,

Military Barriers ISO9001

Product Name: Heavy Galvanized Military Weld 5mm Wire Mesh Defensive Barriers With CE Certificate
Aperture: 50x50mm,75x75mm,76.2×76.2mm(standard)
Color: Silver,Green,Beige
Geotextile: In Heavy Duty Non-woven Polypropylene
Wire Diameter: 5mm,4mm
Key Word: HESCO Barriers, Weld Barriers, Military
Material: Galvanized Iron Wire, Low-Carbon Iron Wire
Cell: 1*1*1,1*1*5m
Product Description

Heavy Galvanized Military Weld 5mm Wire Mesh Defensive Barriers With CE Certificate





1.Introduction:

  • Hot galvanized wire

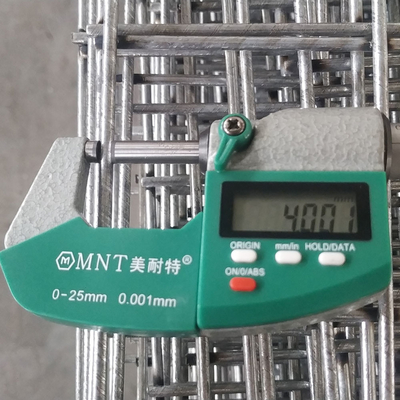

Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)

  • Spring wire for connecting mesh plates

Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0 mm

  • Welded mesh plate

We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.

  • Geotextile

It has various colors: sand, brown, gray and green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.



2. Working principle:

It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.

3. Quality assurance:

Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012



Specifications of defensive barrier (SX1-SX12):



Model Height Width Length NO.of cells
SX-1 4'6''(1.37m) 3'6'' (1.06m) 32' (10m) 9 cells (1*4,1*5)
SX-2 7' (2.1m) 3'6'' (1.06m) 108' (33m) 30 cells(6*5)
SX-3 2'(0.61m) 2'(0.61m) 4' (1.21m) 2 cells
SX-4 3'3'' (1.0m) 3'3'' (1.0m) 32' (10m) 10 cells (2*5)
SX-5 2'(0.61m) 2'(0.61m) 10' (3.05m) 5 cells
SX-6 5'6'' (1.68m) 2'(0.61m) 10' (3.05m) 5 cells
SX-7 7'3'' (2.21m) 7' (2.1m) 90' (27.74m) 13 cells (2*4,1*5)
SX-8 4'6'' (1.37m) 4' (1.22m) 32' (10m) 9 cells (1*4,1*5)
SX-9 3'3'' (1.0m) 2'6'' (0.76m) 30' (9.14m) 12 cells (2*6)
SX-10 7' (2.1m) 5' (1.52m) 95' (30.5m) 20 cells (4*5)
SX-11 3'3'' (1.0m) 3'3'' (1.0m) 3'3'' (1.0m) 1 cell
SX-12 7'3'' (2.21m) 7'3'' (2.21m) 7'3'' (2.21m) 1 cell



Defensive barrier application:

1. Military fortifications Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.

2. Shooting range Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.

3. Flood control Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.



Advantages of Defensive Barrier:

  • Secure & reliable

Once filled with soil, sand or gravel, forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemy fire. For example:

Two feet thick barriers can be used to stop rifle bullets and shell fragments.

Four feet thick barriers can prevent most car bombs.

Five feet thick barriers is ideal for preventing penetration and explosion fragments from rocket propelled grenade.

  • Convenient usage

HESCO bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.

  • Labor saving design

Can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.

  • Quick & easy assembly

Provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our KNSCO do ten times the work.


Heavy Galvanized Military 5mm Wire Mesh Defensive Barriers CE ISO9001 Certificate

Heavy Galvanized Military 5mm Wire Mesh Defensive Barriers CE ISO9001 Certificate
