Square Hole 3x3 inches Weld Sand Filling Defensive Barrier hesco gabion

Basic Properties
Place of Origin: Hebei, China
Brand Name: HESCO
Certification: CE, SGS, ISO,COC,PVOC,FA,FE,CTN
Model Number: SX-1,SX-2,SX-3,SX-7,SX-10
Trading Properties
Minimum Order Quantity: 10 sets
Price: Negotiated
Standard Packaging: Packing into pallet
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C, Western Union, , D/P
Supply Ability: 200 sets/ month
Product Summary
Hesco Bastion Square Hole 3*3” Weld Gabion Sand-Filling Defensive Barrier With Geotextile In Kenya Product Description 1. Hot galvanized wire Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long ...

Product Details

Highlight:

Sand Filling Defensive Barrier

,

3x3 inches hesco gabion

,

3x3 inches Defensive Barrier

Product Name: Hesco Bastion Square Hole 3*3” Weld Gabion Sand-Filling Defensive Barrier With Geotextile In Kenya
Key Word: Defensive Barriers,Military,Hesco Bastion
Mesh Size: 3x3 Inches (7.62*7.62 Cm)
Geotextile: Heavy Duty Non-woven Polypropylene
Finish: Hot Dipped Galvanized, Al-Zinc Coated After Welded
Material: Hot Dipped Galvanized Wire
Color: White, Sand Color, Military Green
Connection: Use Hook Joint Together
Product Description

Hesco Bastion Square Hole 3*3” Weld Gabion Sand-Filling Defensive Barrier With Geotextile In Kenya


Product Description

1. Hot galvanized wire
Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)
2. Spring wire for connecting mesh plates
Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0 mm

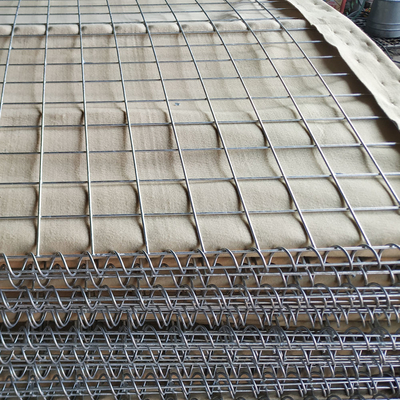

3. Welded mesh plate
We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.
4. Geotextile
It has various colors: sand, brown, gray and green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.

Specification


Mil1-Mil 10 Hesco Barrier Bastion
 Material   Steel wire, galvanized wire
 Wire Diameter  4.0mm, 5.0mm
 Spring Diameter  4.0mm
 Mesh Opening  50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect
 Panel Size  0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested
 Geotextile  Heavy duty non-woven polypropylene
 Colour  White, Sand color, Military Green
 SX-1  1.37m* 1.06m*10.0m
 SX-2  0.61m* 0.61m*1.22m
 SX-3  1.0m*1.0m*10.0m
 SX-4  1.0m*1.5m*10.0m
 SX-5  0.61m* 0.61m*3.05m
 SX-6  0.61m* 0.61m*6.10m
 SX-7  2.21m*2.13m*8.52m
 SX-8  1.37m*1.22m*10.0m
 SX-9  1.0m*0.76m*9.14m
 SX-10  2.13m*1.52m*7.62m


Features

1. A pre-fabricated gabion of galvanised welded-mesh steel fitted with a UV-protected Polypropylene geo-textile liner.
2. Filling material is an easily-obtained mix of sand and small stones.
3. Can be connected together to any length, and can be stacked for additional height.

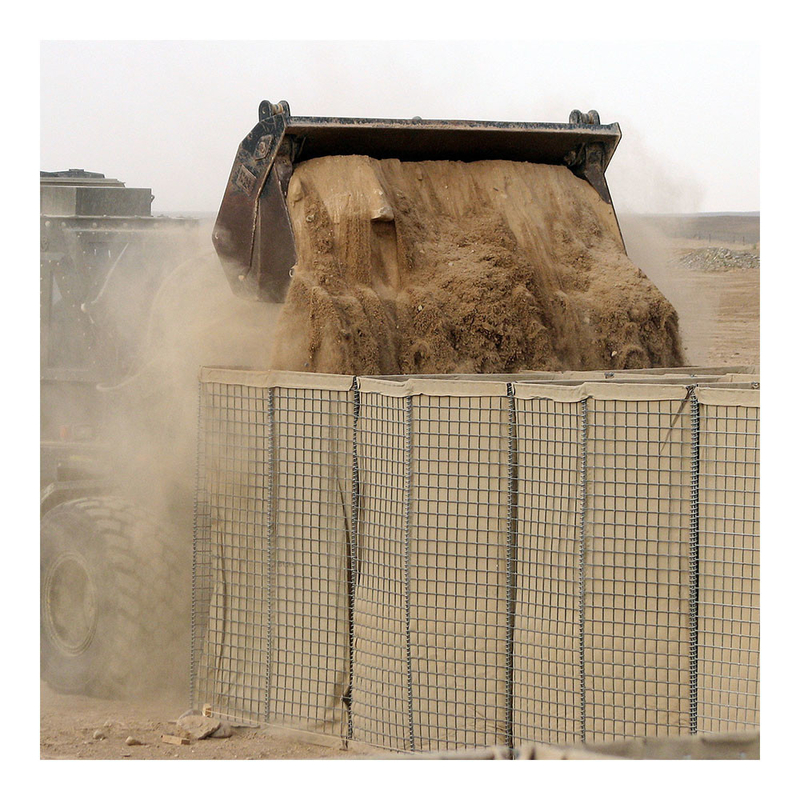

4. One of the best features of the defensive barrier is the ease in which it is set up. Get it flown in or pull it off a truck, unfold it, use a front end loader or other heavy equipment to fill it up with dirt, sand or gravel.

Applications

Peripheral security and defense wall
Equipment protection
Shelter for personnel and materials
Observation point
Defensive firing position sentry
Explosive and contraband search area
Highway inspection station
Border crossing checkpoint
Protect existing structures
Flood control retaining wall beach erosion
Coastal Area Protection Project

Advantage

Secure & reliable
Once filled with soil, sand or gravel, forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemy fire. For example:
Two feet thick barriers can be used to stop rifle bullets and shell fragments.
Four feet thick barriers can prevent most car bombs.
Five feet thick barriers is ideal for preventing penetration and explosion fragments from rocket propelled grenade.
Convenient usage
HESCO bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.
Labor saving design
Can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.
Quick & easy assembly
Provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our KNSCO do ten times the work.

Square Hole 3x3 inches Weld Sand Filling Defensive Barrier hesco gabion
