Product Details:
|
| Material: | HDP Galvanized Wire | Type: | SX-1 To SX-19 |
|---|---|---|---|
| Diameter Of Mesh: | 4.0mm | Mesh Hole: | 3" |
| Color: | Beige Or Military Green | Geotextile Weight: | 300 G/㎡ |
| High Light: | HDP Galvanized Hesco Gabion,HDP Galvanized Defensive Barrier,Hesco Gabion rustproof |
||

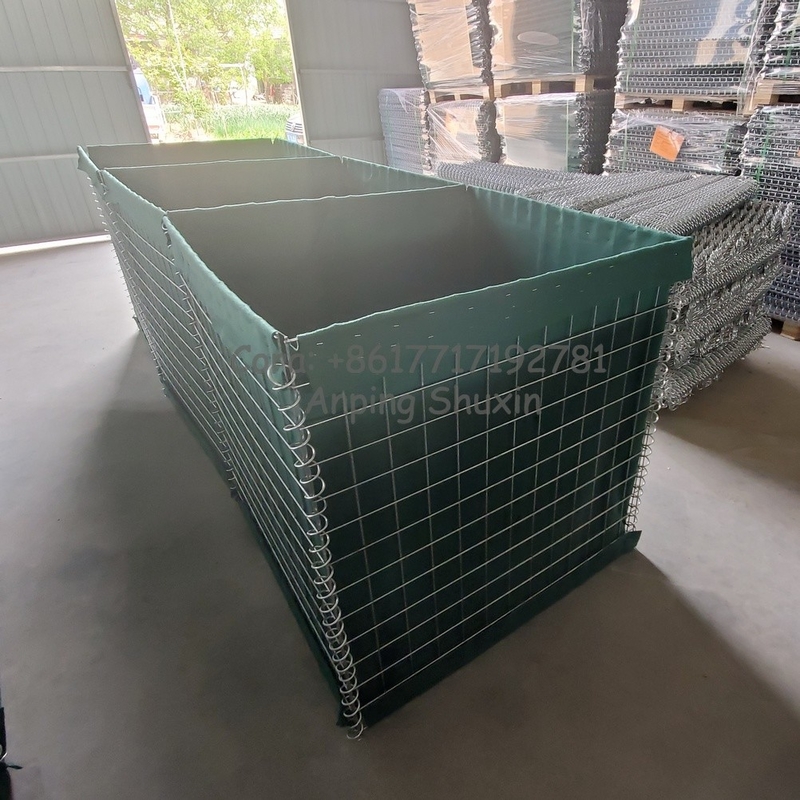

heavy duty galvanized hesco welded gabion box defensive barrier bastion fence
Defensive barrier is easy to assemble and firm in strength, and can be used in retaining wall structure, river regulation engineering, erosion and erosion protection, road protection, bridge protection, hydraulic structures, dams and culverts, coastal embankment engineering, rockfall and water and soil loss prevention.
operational principle
Used Spring to connect the mesh panel together into a rectangle container, which have many cells or single cell, Fill with sand,earth,cement, stone etc as a wall for protection fence.
The Common Specification for Defensive Barriers:
1. Wire Diameter: 4-5mm

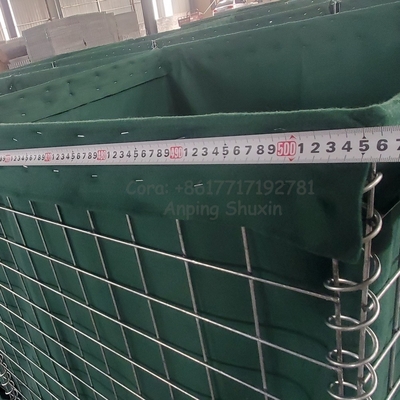

2. Mesh Size: 3" (75x75mm,50x50mm) 80*80mm
3. Panel Size: 13 type size for any security protection,suddenly burst attacks
4. Geotextile: In heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: Hot dipped galvanized, Galfan wire.

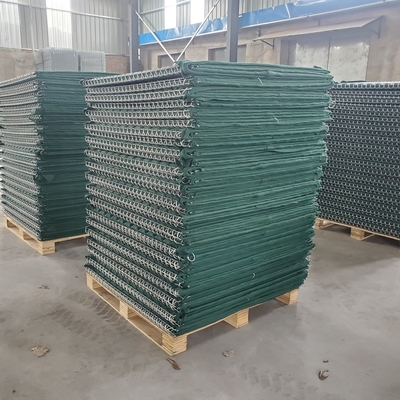

7. Packing: Packed in pallet
The Specification of SX-3:
| UNIT | HEIGHT | WIDTH | LENGTH | CELL CONDITION |
|
SX-3 (Beige) |
3'3" (1.00 M) |
3'3" (1.00 M) |
32'9" (10.00 M) |
5+5 CELLS |
|
SX-3 (Green) |
3'3" (1.00 M) |
3'3" (1.00 M) |
32'9" (10.00 M) |
5+5 CELLS |
The Application for Welded Defensive Barriers:
1. Flood Control
The Military defensive Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Defensive Barrier as Flood Protection.
2. Protection Wall
More and more people used Welded Defensive barrier as a wall for homemade protection, light weight and easy operation to build a wall fast.
The Advantages of Welded Defensive Barrier:
1. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
