Product Details:
|
| Product Name: | Mil4 Sand-Filling Metal Flood Prevention Military Barrier | Internal Cells: | 5+5=10 Cells |
|---|---|---|---|
| Mesh Size: | 3" X 3" | Accessories: | Spring, Joint Pin, Geotextile |
| Geotextile: | 300 G/m2,waterproof, Good Penetration | Application: | Military Barriers，River Pretection |
| Feature: | Easy To Assemble,Good Permeability. | ||
| High Light: | Mil4 Welded HESCO Military Barrier,300g/M2 Geotextile Military Barrier,300g/M2 Geotextile HESCO Barrier |
||

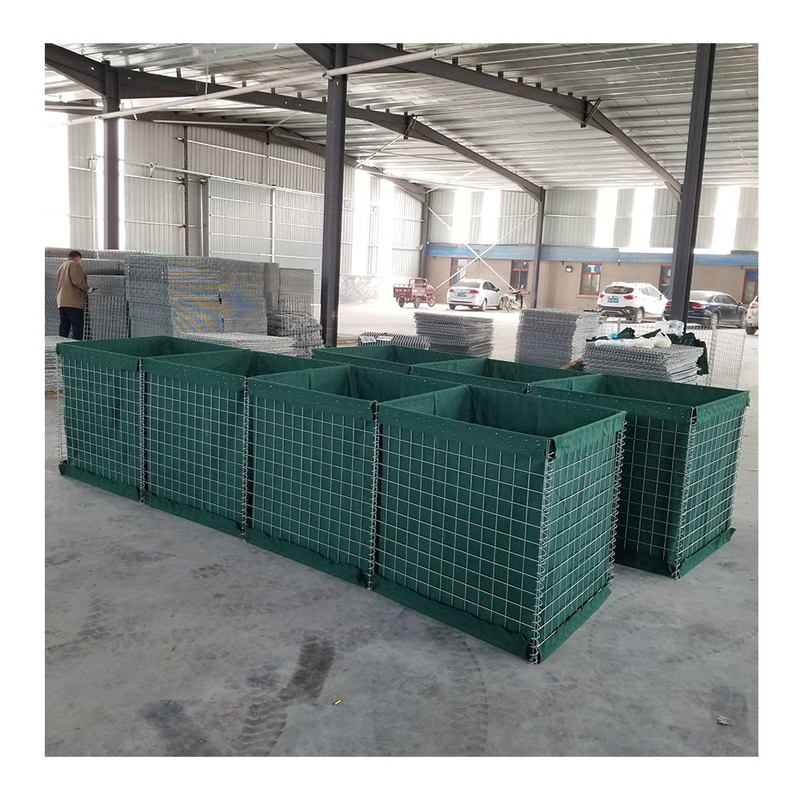

Mil4 Welded HESCO Gabion Sand-Filling Metal Flood Prevention Military Barrier Bastion In Malaysia
Product Description:
Military hesco bastion or hesco barrier is quite possibly one of the simplest and most effective systems is use today by the military.
The hesco barrier walls are made up of a collapsible wire mesh "wall" with a thick aynthetic fabric liner.
Material: Low carbon steel wire, galbanized wire, Zinc-Aluminum coated wire
Wire Diameter: 4.0mm 5.0mm
Spring Diameter: 4.0mm 5.0mm
Mesh Opening: 50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect
Geotextile: 250gsm 300gsm Heavy duty non-woven polypropylene
Geotextile color: White, Sand color, Military Green
Details of Welded HESCO Gabion Military Barrier Bastion:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Application of Welded HESCO Gabion Military Barrier Bastion:
Peripheral security and defense wall
Shelter for personnel and materials
Defensive firing position sentry
Explosive and contraband search area
Highway/Border crossing inspection station
Flood control retaining wall beach erosion
Coastal Area Protection Project
Advantages of Welded HESCO Gabion Military Barrier Bastion:
1. Removable
It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
Our Services:
Selected high-quality materials and processes follow strict international standards.
A team of technical experts who produce high-quality products.
Products that have been certified or inspected for the third time can be provided as required.
Analyze or suggest the best transportation plan to save costs.
Feedback or reply to you in a timely manner through excellent customer service.
Provide OEM services
One-stop sales team delivers goods quickly
Our promise: Professionalism, Efficiency, Faithful
