Low Carbon Steel Wire 75*75mm Military Defensive Barriers For Shooting Field

Basic Properties
Place of Origin: Hebei,China
Brand Name: SHUXIN
Certification: SGS COC ISO PVOC
Model Number: SX-Mil 4
Trading Properties
Minimum Order Quantity: 130 sets
Price: Negotiated
Standard Packaging: Pallet and plastic film
Delivery Time: 15 Working Days
Payment Terms: Western Union, , L/C, T/T
Supply Ability: 100 sets per week
Product Summary
Low Carbon Steel Wire Welded 75*75mm Military Defensive Barriers Use For Shooting Field Product Description: Welded 75*75mm Military Defensive Barriers is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated ...

Product Details

Highlight: HESCO Defensive Barriers, HESCO Bastion
Product Name: Welded 75*75mm Military Defensive Barriers Use For Shooting Field
Internal Cells: 5+5=10 Cells
Mesh Size: 75*75mm
Accessories: Spring, Joint Pin, Geotextile
Geotextile: 300 G/m2,waterproof, Good Penetration
Application: Military Barriers,River Pretection
Feature: Easy To Assemble,Good Permeability.
Product Description

Low Carbon Steel Wire Welded 75*75mm Military Defensive Barriers Use For Shooting Field





Product Description:

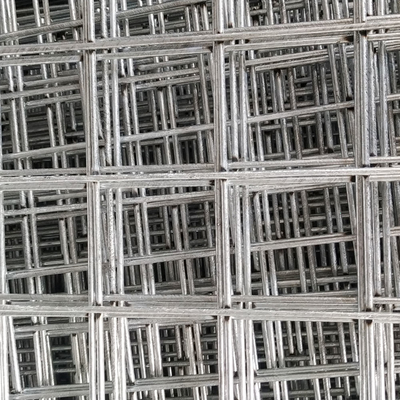

Welded 75*75mm Military Defensive Barriers is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.

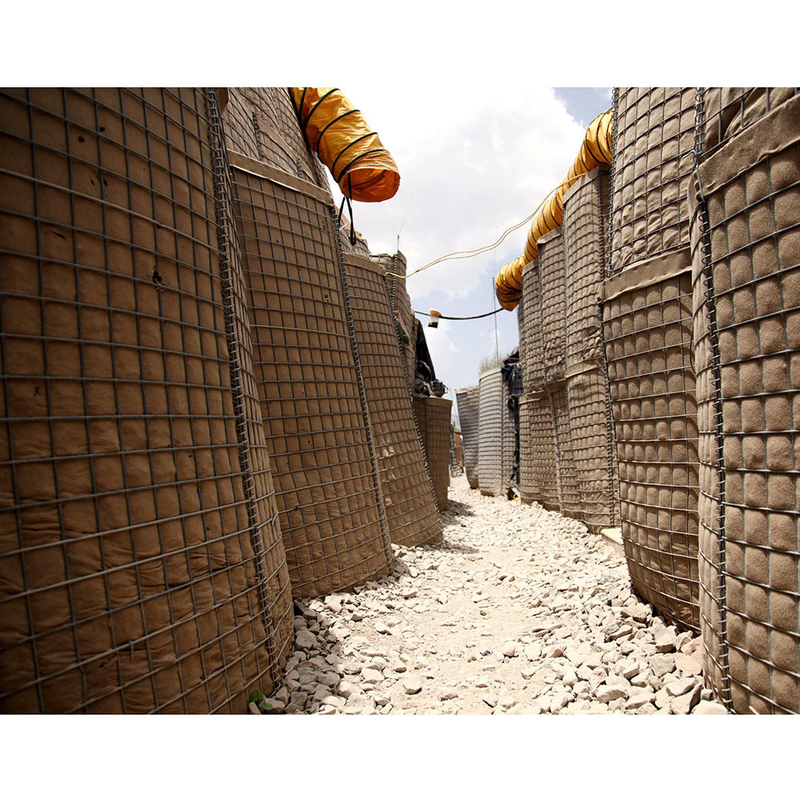

Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.



Material: Low carbon steel wire, galbanized wire, Zinc-Aluminum coated wire



Wire Diameter: 4.0mm 5.0mm



Spring Diameter: 4.0mm 5.0mm



Mesh Opening: 50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect



Geotextile: 250gsm 300gsm Heavy duty non-woven polypropylene



Geotextile color: White, Sand color, Military Green



Details of Welded Military Defensive Barriers:



Unit Type

Height

(M)

Width

(M)

Length

(M)

Internal Cells
SX-01 1.37 1.08 10 9
SX-02 0.61 0.61 1.22 2
SX-03 1.0 1.0 10 10
SX-04 1.0 1.5 6 6
SX-05 0.61 0.61 3.05 5
SX-06 1.68 0.61 3.05 5
SX-07 2.21 2.13 8.25 4
SX-08 1.37 1.22 10 9
SX-09 1.0 0.76 6.84 9
SX-10 2.13 1.52 7.6 5



Application of Military Defensive Barriers:



Peripheral security and defense wall

Shelter for personnel and materials

Defensive firing position sentry

Explosive and contraband search area

Highway/Border crossing inspection station

Flood control retaining wall beach erosion

Coastal Area Protection Project



Advantages of Military Defensive Barriers:



1. Removable

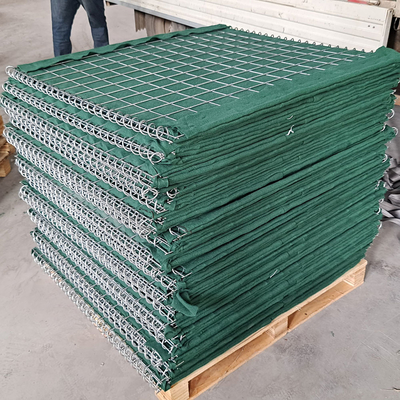

It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.

2. Anticorrosion

The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.

3. Easy installation

When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.

4. Rapid displacement

When you want to use it in another place, just move it and it can be used many times.

5. Easy to repair

If a part is damaged, throw it away and connect it with a new one.



FAQ:



Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?
A: Payment<=5000 USD, 100% in advance. Payment>=5000 USD, 30% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us .
