Product Details:
|
| Mesh Size: | 3" X 3"，（7.62*7.62cm） | Accessories: | Spring, Joint Pin, Geotextile |
|---|---|---|---|
| Geotextile: | 300 G/m2,sand/green Color,waterproof, Good Penetration | Brand Name: | SHUXIN HESCO |
| Feature: | Easy To Assemble,Good Permeability. | Material: | Hot Galvanized Iron Wire, Low-Carbon Iron Wire |
| Wire Diameter: | 4.0mm,5.0mm | Cell: | 1*1*1m,1*1*2m,1*1*5m |
| High Light: | Observation Point Military Hesco Barriers,7.62cm Mesh Military Hesco Barriers,7.62cm Mesh hesco barrier wall |
||
Galvanized Steel Wire HESCO Bastion Military Defensive Barriers Use For Observation Point
Galvanized Military Defensive Barriers Description:
Galvanized Steel Wire HESCO Bastion Military Defensive Barriers is quite possibly one of the simplest and most effective systems is use today by the military.
Wire Diameter: 4.0mm 5.0mm
Mesh Opening: 50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect
Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)

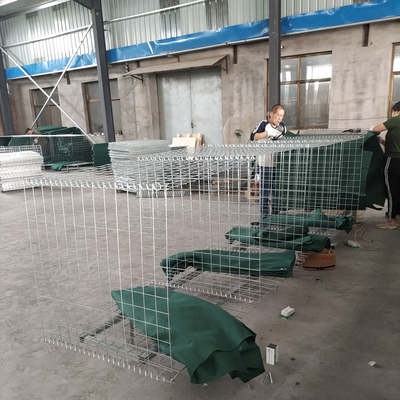

Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0 mm

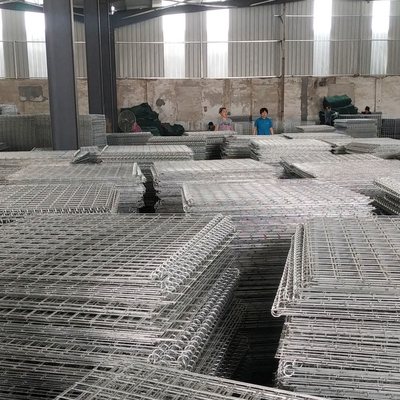

We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.
It has various colors: sand, brown, gray and military green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.
Details of Galvanized Military Defensive Barriers:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Application of Galvanized Military Defensive Barriers:

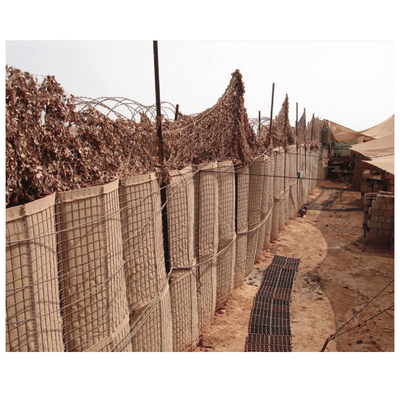

1. Military fortifications
Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.
2. Shooting range
Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.
3. Flood control
Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.
It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.
Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012
Advantages of Galvanized Welded Military Barrier:
Secure & reliable
Once filled with soil, sand or gravel, forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemy fire. For example:
Two feet thick barriers can be used to stop rifle bullets and shell fragments.
Four feet thick barriers can prevent most car bombs.
Five feet thick barriers is ideal for preventing penetration and explosion fragments from rocket propelled grenade.
Convenient usage
HESCO bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.
Labor saving design
Can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.
Quick & easy assembly
Provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our KNSCO do ten times the work.
