Product Details:
|
| Name: | Military Barrier | Sureface Treament: | Heavy Hot Dipped Galvanized |
|---|---|---|---|
| Wire: | 5.0mm | Mesh Hole: | 3" X 3" |
| Geotextile: | 300gsm Sand Color | Accessories: | Spring, Joint Pin, Geotextile |
| Life Duration: | ≥ 25 Years | ||
| High Light: | 300gsm Geotextile Defensive Barrier,300gsm Geotextile Military Sand Wall,Defensive Barrier Long Duration |
||

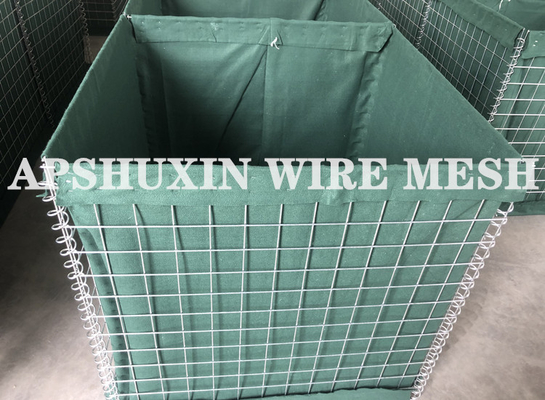

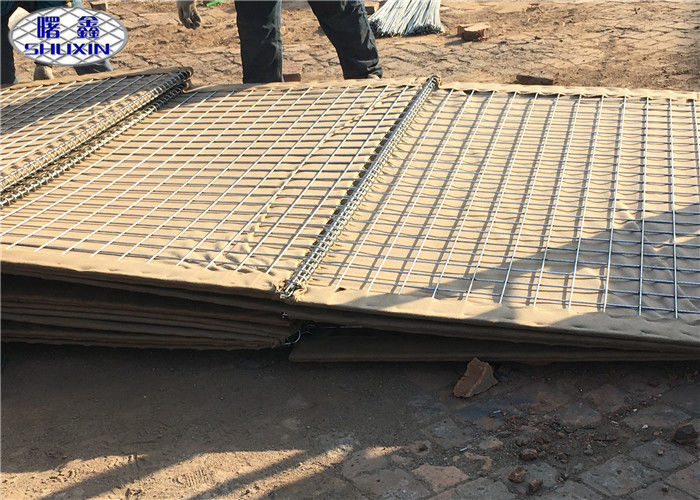

high quality Defensive barrier as protection gabion mesh
Description:
1.Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for
additional height.
2. The spiral hinged corners allows flat packing for ease of transportation
3. The welded mesh frame is of highly durable construction
4. The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that
gives the system its strength.
5. The non-woven geotextile liner allowing a wide range of fill material
Product application:
1. Flood Control.
Most of People used as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.

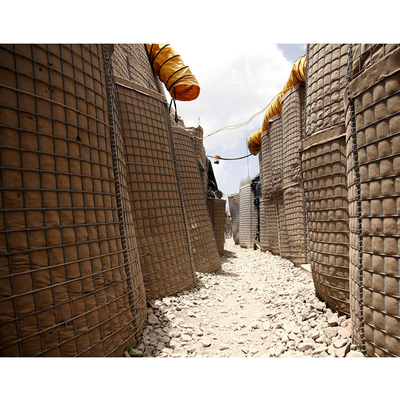

2. Defence
used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.
3. Hotel Pretection
A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.
Quick View of Military Sand Wall :
Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |

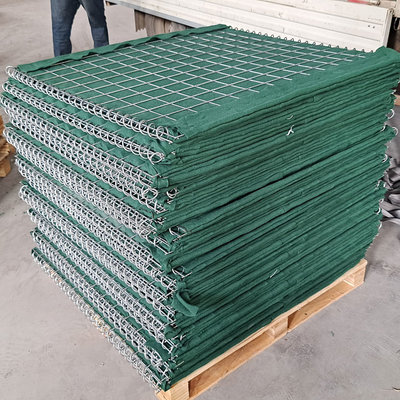

Packing and Shipping
∗Wrapped with shrink film then on pallet
∗Bulk load
∗Customized packing is available.
Our service tenet: Honesty, Patience, Professional, Innovation
Our core values: Customer oriented, People oriented, Respect innovation, Respect Efforts
Our main market at the moment: South Africa,Qatar, Iraq, Australia, United Arab Emirates,United States, Brazil, Turkey, Nigeria and so on.
