3x3 Inch Hole Size Collapsible 4mm Military Barrier For Flood Control

Basic Properties
Place of Origin: CN
Brand Name: SHUXIN
Certification: COC ISO PVOC CE
Model Number: SX-mil 10
Trading Properties
Minimum Order Quantity: 100 Sets
Price: Negotiated
Standard Packaging: Pallet
Delivery Time: 20 Working Days
Payment Terms: L/C, , T/T, Western Union, , Paypal
Supply Ability: 100 sets per 1 day
Product Summary
3x3 Inch Hole Size Flood Control Collapsible 4mm Military Barrier Military Gabion Barrier Bastion Sand Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh. Known as a Military Gabion Barrier ...

Product Details

Highlight:

3x3 Inch Hole Military Barrier

,

Collapsible Military Barrier

,

4mm flood control barriers

Material: HDP Galvanized Wire
Wire Diamenter: 5.0mm/4.0mm
Hole Size: 3"*3" 76x76mm
Sureface Treatment: Hot Dipped Galvanized
Application: Army Military And River Pretection
Geotextile: 300gsm Sand Color
Spring: 4.0mm
Color: Green, Beige, White
Product Description

3x3 Inch Hole Size Flood Control Collapsible 4mm Military Barrier





Military Gabion Barrier Bastion Sand Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.

Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.



Brief Introduction for Usage method:

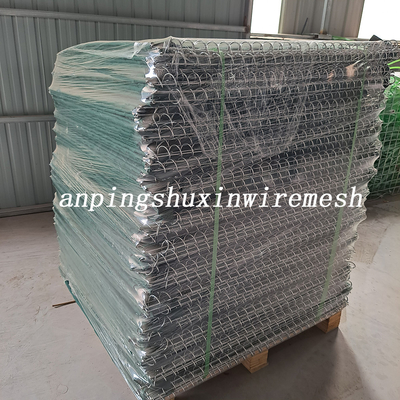

1. Usually the HESCO Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.
2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin
3. Full Fill the sand and earth in it and compaction
4. If you want more High and Wide of it, You can stack the HESCO Barrier on each other.



1. Galfan coated steel mesh frame



2. The integrated unit provides internal structural integrity.



3. Excellent strength and structural integrity



4. High tensile and impact resistance



5. Improve transportation efficiency and speed



Application:

1. Police force points and Check points

2. Military Defensive barriers

3. Observation points and border checkpoints

4. Military barrier fortification system

5. Border control and temporary accommodation bunkers

Product Name Hesco Barrier Bastion Welded Gabion Box Explosion-Proof Wall
Material Hot-dipped Galvanized Steel Wire,Galfan Wire(Zinc-Aluminum Steel Wire)
Wire Diameter 4mm,5mm
Spring Diameter 4mm
Mesh Hole 3’’*3’’ or 75mm*75mm
Panel Size 0.61m*0.61m,1m*1m,1.06m*1.37m,2.21m*2.13m,etc.
Geotextile Usually 300g/m,other requirement can be customized.
Finish

Hot-dipped Galvanized,Galfan Coated.


The Size Sheet for Military HESCO Barrier:

MODEL Height Width Length NO. of Cells
SX-1 4'6"(1.37M) 3'6"(1.06M) 32'(10M) 9 cells(1*4, 1*5)
SX-2 7'(2.1M) 3'6"(1.06M) 108'(33M) 30 cells(6*5)
SX-3 2'(0.61M) 2'(0.61M) 4'(1.21M) 2 cells
SX-4 3'3"(1.0M) 3'3"(1.0M) 32'(10M) 10 cells(2*5)
SX-5 2'(0.61M) 2'(0.61M) 10'(3.05M) 5 cells
SX-6 5'6"(1.68M) 2'(0.61M) 10'(3.05M) 5 cells
SX-7 7'3"(2.21M) 7'(2.13M) 90'(27.74M) 13 cells(2*4,1*5)
SX-8 4'6"(1.37M) 4'(1.22M) 32'(10M) 9 cells(1*4, 1*5)
SX-9 3'3"(1.0M) 2'6"(0.76M) 30'(9.14M) 12 cells(2*6)
SX-10 7'(2.12M) 5'(1.52M) 95'(30.5M) 20 cells(4*5)
SX-11 3'3"(1.0M 3'3"(1.0M) 3'3"(1.0M) 1 Cell
SX-12 7'3"(2.21M) 7'3"(2.21M) 7'3"(2.21M) 1 Cell

 How to Install hesco barrier?

1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.

3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.

4, Gabion box filled with graded stone by hand or with a shovel.

5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.

6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones,

3x3 Inch Hole Size Collapsible 4mm Military Barrier For Flood Control

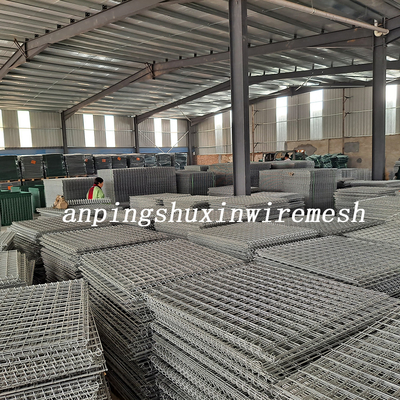

SHUXIN company had been produce welded wire mesh products hesco barriers more than 15 years.
our products been supplied many countries's department of defense. and army force.
such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
