Product Details:
|
| Stock: | Some Types Have Stock, Welcome To Inquiry | Raw Material: | Hot Dippled Galvanized Wire |
|---|---|---|---|
| Geotextile: | 300 G/㎡ Standard | Mesh Diameter: | 5.0mm Diameter |
| Apeture: | 3" (76.2mm×76.2mm) | Color: | Military Green, Sand Color |
| Accessories: | Staple, Joint Pin | Brand: | KESCO, Not HESCO |
| Sample: | Free Sample | ||
| High Light: | Hot Galvanized Military Barrier,Hot Galvanized HESCO Boxes,HESCO Boxes With Geotextile |
||
Hot Galvanized Welded Military Defensive HESCO Barrier Boxes With Geotextile
1.Introduction

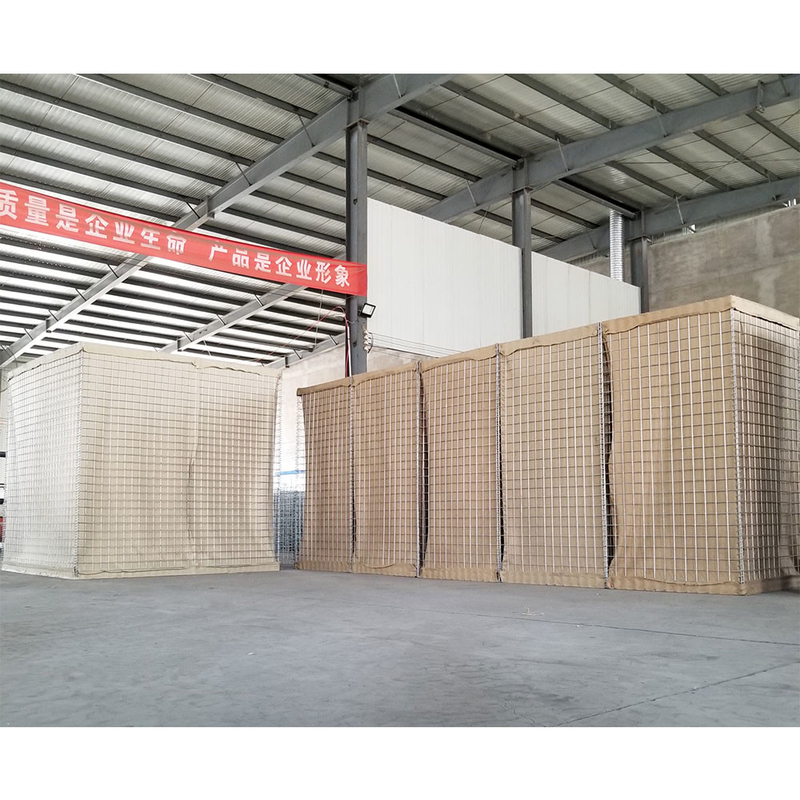

Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for defensive barriers and flood control.
2. Working principle:
It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.
3. Quality assurance:
Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012
The Standard Technical Specifications from SX1 to SX19
| Welded Military Used Shooting Range Barrier | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Welded Gabion Barrier
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Military Gabion Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Wall is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible

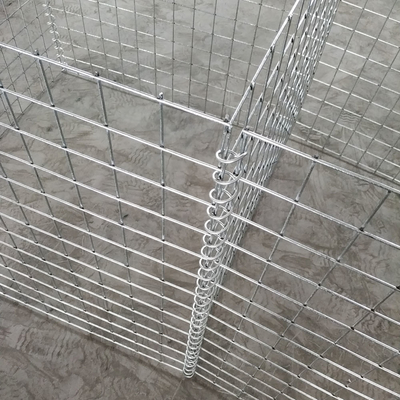

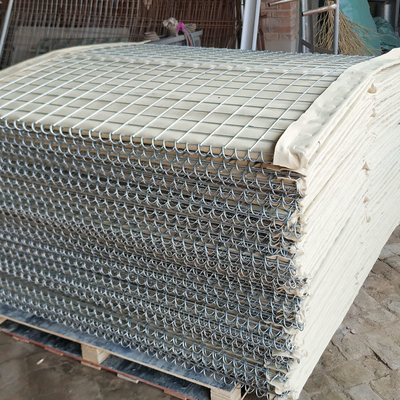

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
