Product Details:
|
| Stock: | Some Types Have Stock, Welcome To Inquiry | Connections: | Spirals Or Clips |
|---|---|---|---|
| Geotextile: | 300 G/㎡ Standard | Mesh Diameter: | 5.0mm Diameter |
| Apeture: | 3" (76.2mm×76.2mm) | Color: | Military Green, Sand Color |
| Accessories: | Staple, Joint Pin | Brand: | KESCO, Not HESCO |
| Application: | Gabions | ||
| High Light: | geotextile lined hesco bastion mil 1,mil 1 hesco bastion barrier,geotextile lined hesco bastion barrier |
||
ISO CE Supplier Defensive Barrier Bastions For Military Barrier Wall Defensive Department
The HESCO barrier or HESCO bastion is a modern gabion used for flood control and military fortification. Military Hesco BastionWall is made of a collapsible wire mesh container and
heavy duty fabric liner and used as a temporary to semipermanent dike or barrier against blast or small-arms.
Other Name : Welded hesco basket , hesco concertainer blast wall , hesco barrier for flood control , hesco barriers sand wall , hesco barrier gabion wall , hesco container barrier blast wall
Military Barrier, police guard tower also called " Prime", Fast installation and easy to manage made hesco barrier most popular in the army, as military denfesive barrier. it only need 2 or 3 people to finished a shelter or guard tower fast.
The Standard Technical Specifications
| Military Barrier Used Shooting Range Barrier | |||
| Model | Height | Width | Length |
| mil-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| mil-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| mil-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| mil-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| mil-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| mil-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| mil-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| mil-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| mil-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| mil-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| mil-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| mil-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| mil-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Welded Gabion Barrier Military Barrier
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Military Gabion Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Wall is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
| Usage | common used for flood barriers, shooting practice |
| Wire diameter | 3-6mm |
| Mesh opening | 3''x3'', 5x10cm, 5x5cm, 10x10cm |
| Others |
Material: hot-dipped galvanized or Galfan. |
The Advantages of Military Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible

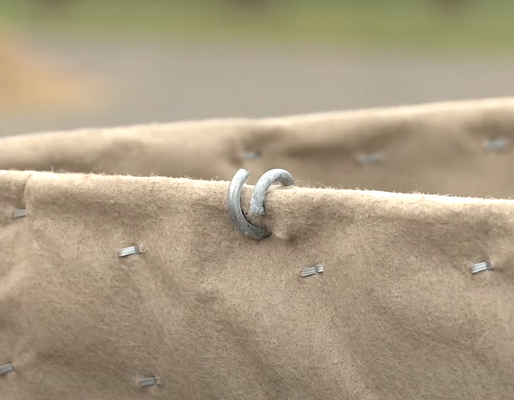

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
