Product Details:
|
| Stock: | Some MIL Types Have Stock | Raw Material: | Carbon Steel Wire |
|---|---|---|---|
| Geotextile: | 300 G/㎡ Standard | Sample: | Free Sample |
| Apeture: | 3" (76.2mm×76.2mm) | Color: | Military Green |
| Accessories: | Staple, Joint Pin | Key Words: | Defensive Barrier, Welded Gabion Defensive Wall |
| Delivery: | Some Countries Can Send To Your Address Directly | Production Time: | Usually Need 7-10 Days |
| Surface: | Galfan Coated, Galvanized, | ||
| High Light: | heavy duty galvanized defense barrier,2.74m high defense barrier,military hesco barriers mil 19 |
||
Heavy Duty Galvanized 2.74m High Mil 19 Welded Defensive Barrier Wall for Flood Control Retaining Wall
The Military barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells joint together.The concertainer SX units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile. Gabion barrier /Defensive bastion can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.
Brief Introduction for Sand Filled Wall
Material: Galvanized steel wire or Galfan/zinc-5%aluminum wire
Service Life: 15-20 years
Wire diameter: 3.0mm- 6.0mm
Aperture:50*50mm,75*75mm, 76.2*76.2mm, 80*80mm,100*100mm etc
Color of geotextile: Grey and Military, Beige, Sand Color and so on.
Gram Weight of geotextile: 250 g/m2 or 300 g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded
Packing:Wrapped with shrink film then packed in wood pallet or iron pallet
The Standard Technical Specifications from SX 1 to SX 19
| Welded Sand Filled HESCO Barriers for Retaining Wall | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |

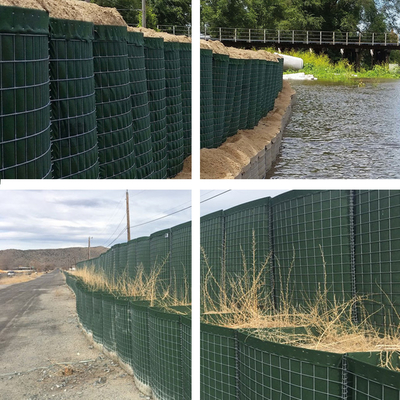

The Application for HESCO Defensive Barrier
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, SHUXIN products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Welded Gabion Box can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Defensive Flood Barrier Wall can as a retaining Wall to against the flood.

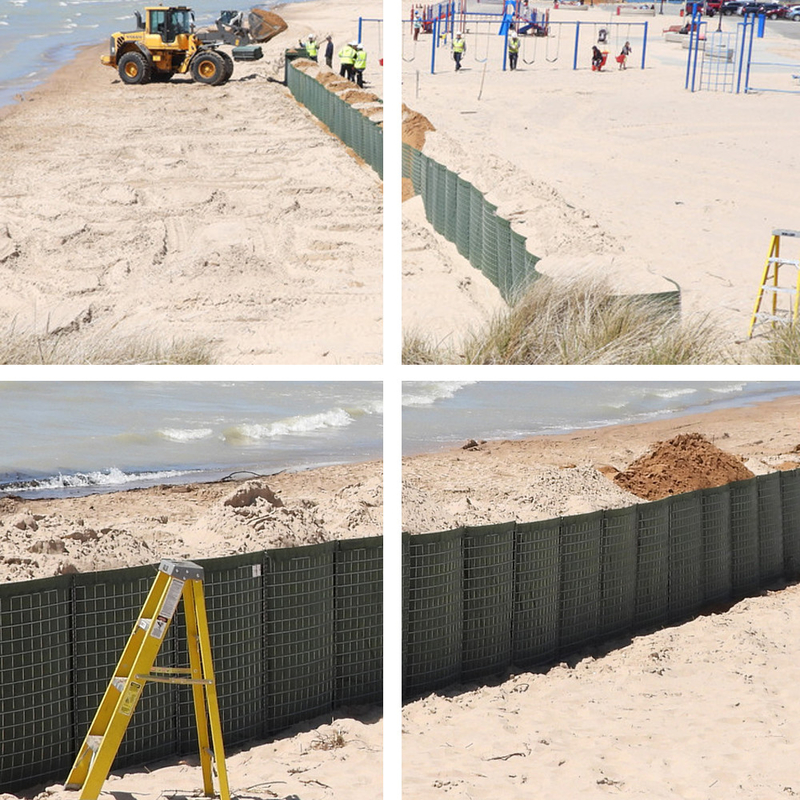

4. Protection Engineering of Seaside Area
Defensive Barrier is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

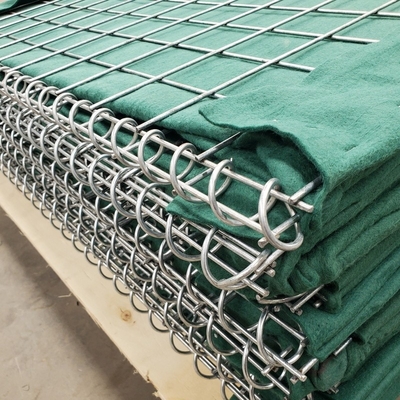

2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
