Product Details:
|
| Raw Material: | Low Carbon Steel Wire | Geotextile: | 250 G/㎡ Standard |
|---|---|---|---|
| Mesh Diameter: | 4.0mm Diameter Wire | Apeture: | 3" (76.2mm×76.2mm) |
| T/S: | 500 - 800 MPA | Accessories: | Staple, Joint Pin |
| High Light: | mil 10 defence barrier,geotextile green color lined defence barrier,geotextile green color lined defensive barrier |
||
Mil 10 Steel Geotextile Green Color Lined Defensive Barrier Put Into Soil

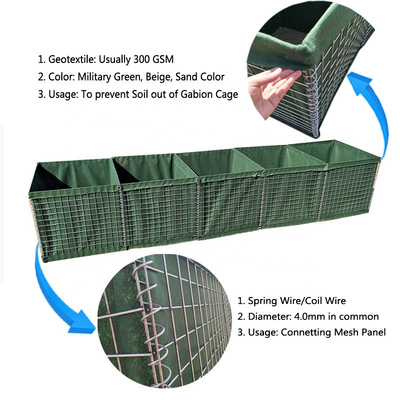

Defensive Barrier unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
This Bastion Barrier has been set to help civil engineers with a wide range of environmental issues for over 10 years. Originally aimed at combating the effects of coastal erosion, this outstanding cage has been widely used in other civil engineering applications around the world.
The Standard Technical Defensive BarrierSpecifications from SX 1 to SX 19
| Welded Military Sand Filled Barrier for Retaining Wall | |||
| Model | Height | Width | Length |
| KN-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| KN-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| KN-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| KN-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| KN-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| KN-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| KN-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| KN-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| KN-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| KN-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| KN-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| KN-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| KN-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Military Barrier
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Welded Protection Barriers provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Sand Filled Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Welded Barrier Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Protection Defensive Barrier is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
