Product Details:
|
| Hesco Size: | 0.61x0.61m,1x1m,2.13x2.21m | Sureface Treatment: | Hot Dip |
|---|---|---|---|
| Mesh Hole: | 3" X 3" | Wire: | 5.0mm |
| Life Duration: | ≥ 25 Years | Include: | Non-woven Polypropylene Geotextile Defensive Barrier |
| Type: | Welded Mesh Square | Style: | Mil 1 -- Mil 10 |
| High Light: | nonwoven polypropylene geotextile defensive barrier,square hole defensive barrier,welded mesh hesco bastion mil 3 |
||

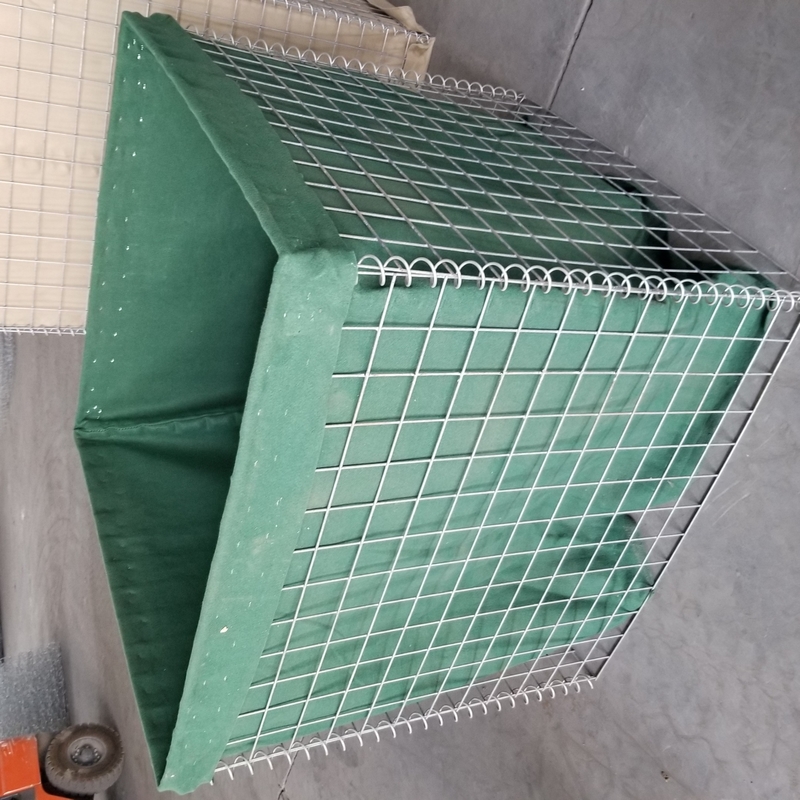

Mil 3 Welded Mesh Square Hole Defensive Hesco Barriers With Non-Woven Polypropylene Geotextile
Introduction of Defensive Barriers :
1. Defensive Barrier
Known as a Defensive defensive barrier, it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand — preferably with a front-end loader — to make a barrier resistant to small arms fire and shrapnel. They can be stacked or lined in double rows to provide additional protection from rocket-propelled obstruct grenades and bombs.
2. Specification:
1) Material: Steel wire, galvanized wire
2) Wire diameter: 4mm-5mm
3) Hole: 3''x3''
4) Hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
5) Geotextile: in non-woven geotextile, color can be white, beige-sand color.
6) Color: White, Sand color, Military Green
| Military Barrier | ||
| Material | Steel wire, galvanized wire, Zinc-Aluminum coated wire | |
| Wire Diameter | 4.0mm 5.0mm | |
| Spring Diameter | 4.0mm | |
| Mesh Opening | 50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect | |
| Panel Size | 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested | |
| Geotextile | Heavy duty non-woven polypropylene | |
| Colour | White, Sand color, Military Green | |
| MODEL | Height | Width | Length | NO. of Cells |
| KN-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| KN-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| KN-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| KN-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| KN-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| KN-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| KN-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| KN-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| KN-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| KN-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| KN-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| KN-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
Military barriers Sand Wall Application:
1. Flood Control.
Most of People used as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.
2. Military Defence
Most of army used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.
3. Hotel Pretection
A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.
